Vive 3 Wheel Mobility Scooter Instruction Manual

1. Вступ

This manual provides essential information for the safe and effective operation, assembly, and maintenance of your Vive 3 Wheel Mobility Scooter. Designed for adults, this electric-powered device offers stable assistance for navigating smooth indoor and light outdoor surfaces, ensuring comfort and independence.

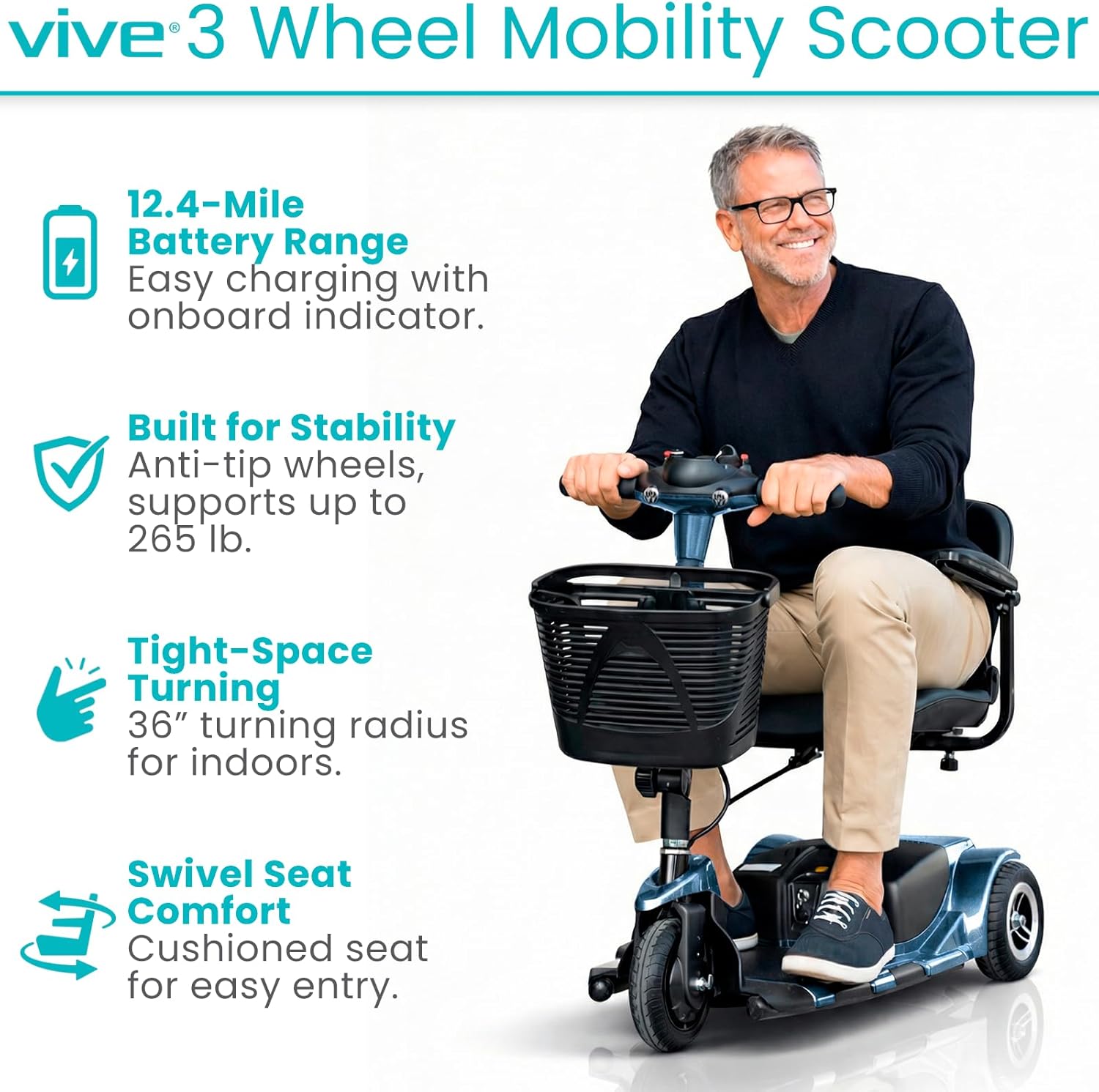

Image: A man riding the Vive 3 Wheel Mobility Scooter, showcasinйого компактний дизайн та простота використання.

2. Інформація про безпеку

Always prioritize safety when operating the mobility scooter. Adhere to the following guidelines:

• Вага: The scooter is designed to safely support up to 265 pounds. Do not exceed this limit.
• Рельєф місцевості: Suitable for smooth indoor surfaces and light outdoor terrains such as concrete, pavement, and short grass. Avoid rugged terrain, very steep inclines, or uneven surfaces to prevent instability.
• Шини: Equipped with flat-free, non-marking 8-inch tires for worry-free rides.
• Стабільність: Features anti-tip wheels for enhanced stability.
• Гальмування: The scooter is equipped with an automatic braking system. Ensure the drive lever is released to engage the brakes.
• Маневрування: Exercise caution when navigating tight spaces or around obstacles.

Зображення: Детальне view of the scooter's flat-free tires, suitable for different smooth terrains.

3. Вміст упаковки

Переконайтеся, що всі компоненти присутні після розпакування:

• Vive 3 Wheel Mobility Scooter (main unit)
• Comfortably padded seat with flip-up armrests
• Front-mounted storage basket
• Розширений акумулятор
• Quick-connect battery charger
• Ключ запалювання

4. Збірка та налаштування

The Vive 3 Wheel Mobility Scooter is designed for quick and easy assembly and disassembly. It can be separated into four lightweight pieces for convenient transport and storage.

1. Розпакуйте компоненти: Обережно вийміть усі частини з упаковки.
2. Attach Rear Section: Connect the rear drive section to the main chassis.
3. Встановити акумулятор: Securely place the extended battery into its compartment.
4. Кріплення сидіння: Mount the padded seat onto the seat post, ensuring it locks into place.
5. Install Tiller: Raise and secure the folding tiller into the upright position.
6. Прикріпити кошик: Hook the front storage basket onto the tiller.

Image: The scooter disassembled into its main components, demonstrating its portability for vehicle transport.

For a visual guide on assembly, please refer to the "About the Vive 3 Wheel Mobility Scooter" video below.

5. Інструкція з експлуатації

5.1 Tiller Console Controls

The tiller console provides all necessary controls for operating your scooter:

Зображення: Детальне view of the scooter's control panel, showing the power switch, battery indicator, speed dial, horn, and headlight controls.

• Ключовий перемикач: Вставте ключ і поверніть його в положення «УВІМК.», щоб увімкнути самокат.
• Індикатор рівня заряду батареї: Located at the top of the console, this color-coded display shows the current battery charge.
• Змінний швидкий набір: Adjust the maximum speed of the scooter. Turn left for slower speeds, right for faster speeds (up to 3.7 mph).
• Drive Lever: Press the right side of the lever to move forward. Press the left side to engage reverse. Releasing the lever will activate the automatic brake.
• Перемикач фар: Activates the scooter's headlight.
• Кнопка звукового сигналу: Натисніть, щоб увімкнути сигнал.

For a detailed demonstration of the control panel, watch the video below:

5.2 Seating and Comfort

The scooter features a comfortably padded 16.9-inch wide seat and backrest. The seat can be adjusted for height and swivels to facilitate easier entry and exit. Padded armrests can be adjusted and flipped upward for added convenience.

Image: A user demonstrating the adjustable and flip-up armrests, highlighting the comfortable padded seat.

5.3 Маневреність

The 3-wheel design provides a tight 36-inch turning radius, allowing for easy navigation through doorways, hallways, and other narrow indoor and outdoor spaces.

Image: A woman demonstrating the scooter's maneuverability by navigating around cones, showcasing its tight turning radius.

6. Зарядка батареї

The scooter is equipped with an extended battery providing a driving range of up to 12.4 miles per charge. The battery is removable, allowing for convenient off-board charging.

1. Переконайтеся, що скутер вимкнено.
2. Знайдіть батарейний відсік і вийміть батарею.
3. Connect the quick-connect charger to the battery and a standard power outlet.
4. Allow the battery to charge fully. The battery indicator lights on the charger will indicate charging status.
5. Once fully charged, disconnect the charger and re-install the battery into the scooter.

Image: The quick-connect charger and the scooter's battery, illustrating the charging process.

7. Disassembly for Transport

For easy transport and storage, the scooter quickly disassembles into four manageable pieces. The heaviest piece weighs approximately 29 pounds, making it suitable for lifting into standard vehicle trunks.

1. Remove the front storage basket.
2. Fold down the tiller.
3. Зніміть сидіння.
4. Separate the main chassis from the rear drive section.

Reverse these steps for reassembly.

8. Технічне обслуговування

Regular maintenance ensures optimal performance and longevity of your scooter:

• Прибирання: Регулярно протирайте скутер засобом від рекламиamp тканина. Уникайте використання агресивних хімікатів або абразивних засобів для чищення.
• Догляд за акумулятором: Keep the battery charged, especially during periods of non-use, to prolong its lifespan.
• Перевірка шин: Periodically check tires for wear and tear. Although flat-free, excessive wear can affect performance.
• Підключення: Переконайтеся, що всі електричні з’єднання надійні та вільні від корозії.
• Зберігання: Зберігайте самокат у сухому, прохолодному місці, коли він не використовується.

9. Вирішення проблем

If your scooter experiences an issue, the battery indicator lights on the tiller console may blink in a specific sequence to indicate an error code. Refer to your user manual (physical copy) for a comprehensive list of error codes and their corresponding troubleshooting steps.

Поширені проблеми:

• Самокат не вмикається: Check if the key is fully inserted and turned to the 'ON' position. Ensure the battery is charged and properly connected. Verify the manual/drive mode lever is in the correct position (drive mode).
• Reduced speed or range: This may indicate a low battery charge. Charge the battery fully.
• Невідповідні елементи керування: Ensure all connections are secure and the scooter is powered on.

10. Технічні характеристики

Image: The scooter's durable aluminum frame, designed for everyday reliability.

11. Гарантія та підтримка

The Vive 3 Wheel Mobility Scooter comes with a ГАРАНТІЯ НА 5 РІК, reflecting our commitment to quality and customer satisfaction. For any questions, technical assistance, or warranty claims, please contact Vive Health Direct customer support.

Image: Highlighting the Vive Health 5-Year Guarantee, ensuring product reliability and customer confidence.
