This manual provides essential information for the safe and efficient operation, setup, and maintenance of your APlusLift MT1500X 1500LB Air Operated Motorcycle ATV Lift Table. Please read all instructions carefully before use.
The APlusLift MT1500X is a heavy-duty, air-operated lift table designed for motorcycles and ATVs, featuring a 48-inch width with side extensions and a 1500LB capacity. It includes a new butterfly foot pedal with auto neutral position, a free service jack, anti-slip traction tape, and durable e-coated black and powder-coated orange paint finishes. Constructed with 8.8 grade hardware, it ensures stability and longevity.
Важлива інформація з безпеки
- Always ensure the lift table is on a level, stable surface before operation.
- Do not exceed the maximum weight capacity of 1500LB.
- Always engage the safety locking system when the lift is raised and before performing any work on the vehicle.
- Ensure the vehicle is properly secured to the lift table using appropriate tie-downs and the front wheel vise before lifting.
- Тримайте руки та ноги подалі від рухомих частин під час підйому та опускання.
- Use only approved air compressors within the specified pressure range for pneumatic operation.
- Never work under a raised lift table without engaging the safety locks.
- Motorcycle lift tables can be delivered to business or residence on paved roads only. Additional charges may apply for delayed delivery or delivery in remote/high-cost areas. No delivery inside a building or to a backyard.
Налаштування та збірка
The APlusLift MT1500X lift table comes largely pre-assembled. Minor assembly is required for components such as the front extension plate, front wheel stop, and rear approach ramp. It is recommended to have two people for unpacking due to the unit's weight (550 pounds).
Розпакування та початкове розміщення
Carefully uncrate the lift table. Due to its weight, ensure proper lifting techniques or use appropriate equipment. Position the main lift table on a flat, stable surface where it will be used.
Text Description: A person uncrates the lift table, revealing the main unit and accessories. The video highlights the inclusion of safety guidelines, an operation manual, spare sealing rings, and an installation accessory kit. Warning labels are shown being cut, emphasizing the importance of reading them carefully.
Attaching the Front Extension Plate
The front extension plate offers three length options. Secure it to the main table using the provided bolts and nuts. The upgraded design allows for one-person, one-side simplified setup with improved screw heads for multiple tools.
Text Description: A close-up view of the front extension plate being attached to the main lift table. The image shows the bolts and nuts used for securing the plate, emphasizing the ease of installation with standard tools.
Installing the Front Wheel Vise and Rear Ramp
Insert the front wheel stop into the designated slots on the front extension plate and secure it with the safety pin. Attach the rear approach ramp to the back of the main table.
Текстовий опис: Детальний view of the front wheel vise, showing its robust construction and how it secures the vehicle's front wheel. The image highlights the adjustable stop feature.
Text Description: An overhead view of the APlusLift MT1500X lift table with the rear approach ramp attached, showing the overall length and width of the expanded platform.
Інструкція з експлуатації
Завантаження транспортного засобу
Push the motorcycle or ATV onto the lift table via the rear approach ramp. Secure the front wheel using the front wheel vise and apply tie-downs to stabilize the vehicle on the platform.
Text Description: A short video demonstrating the process of pushing a motorcycle onto the APlusLift MT1500X lift table and securing its front wheel with the vise. It shows the motorcycle being positioned correctly before lifting.
Підйом транспортного засобу
Connect an air compressor to the butterfly foot pedal. Press the front part of the foot pedal to add air pressure and raise the lift table. The lift can reach a maximum height of 33.5 inches. Once at the desired height, lower the safety lock bar into place and gently release air pressure with the pedal to ensure secure locking.

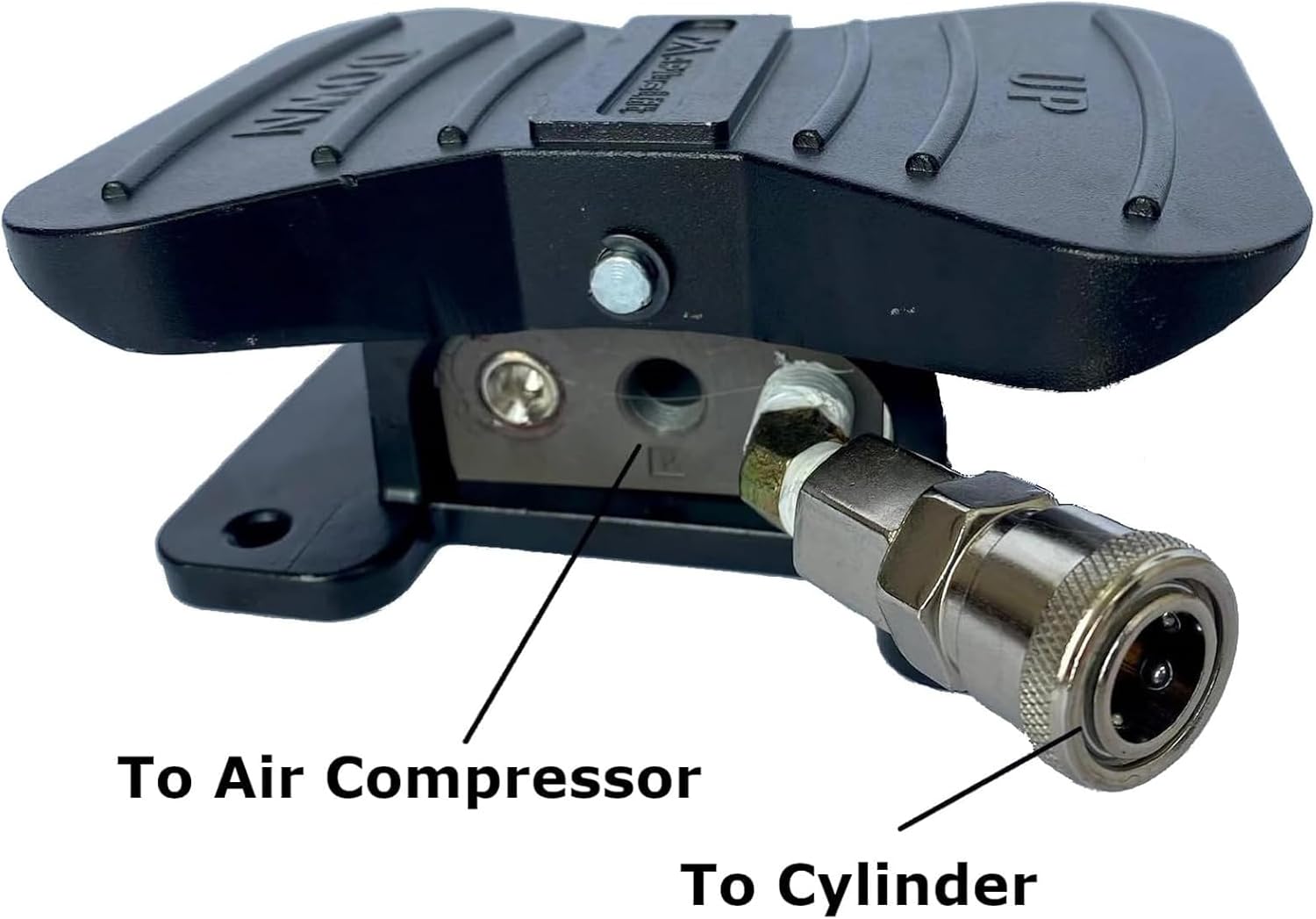

Text Description: A close-up of the butterfly foot pedal, showing the connections for the air compressor and to the cylinder. It illustrates the "UP" and "DOWN" functions for controlling the lift.
Text Description: A view of the 7-position safety locking system on the lift table, showing the robust steel construction and how the lock bar engages to prevent accidental lowering.
Using the Service Jack
The lift table includes a service jack for easy partial lifting of motorcycles, ATVs, and other small vehicles. This is useful for tasks requiring wheel removal or access to the underside of the vehicle.

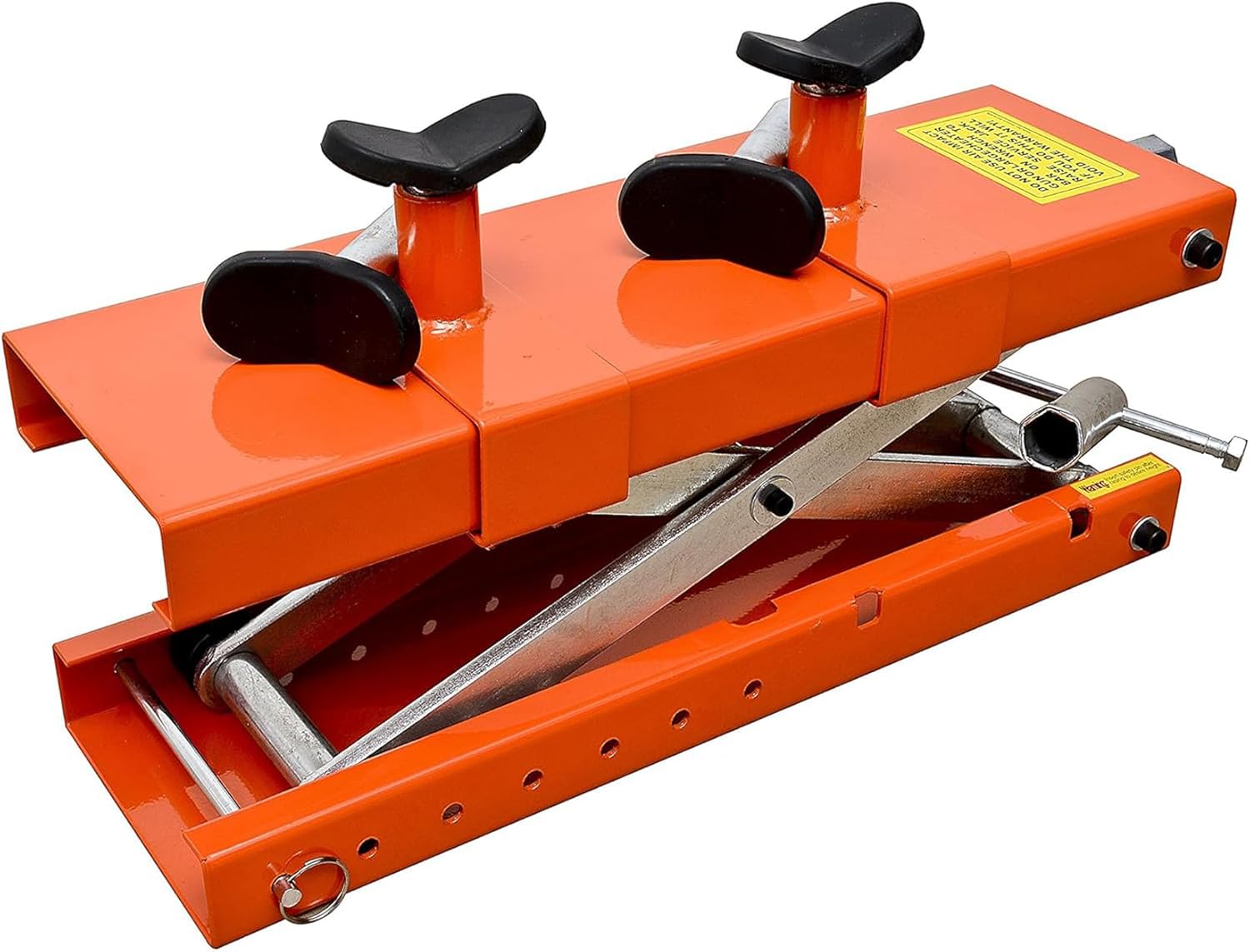

Text Description: The included service jack, a scissor-style lift, is shown in its compact form. It is designed to provide additional lifting capability for specific parts of the vehicle on the main lift table.
Опускання транспортного засобу
To lower the vehicle, ensure the area around the lift is clear. Press the rear part of the foot pedal to release air pressure, allowing the lift table to smoothly descend. Once fully lowered, remove the vehicle from the platform.
Технічне обслуговування
Regular maintenance ensures the longevity and safe operation of your APlusLift MT1500X. Periodically inspect all bolts, nuts, and moving parts for tightness and wear. Lubricate pivot points as needed.
Seal Replacement (Pneumatic Cylinder)
If the pneumatic cylinder begins to leak or lose pressure, the internal seals may need replacement. This process involves disassembling the cylinder, replacing the rubber gaskets and washers, and reassembling the unit.
Text Description: A detailed video demonstrating how to replace the seals in the pneumatic cylinder of a motorcycle lift table. It shows the steps for disassembly, replacing the rubber gaskets and bushings, and reassembly, ensuring proper function.
Усунення несправностей
- Lift not raising: Check air compressor connection and pressure. Ensure the foot pedal is fully engaged. Inspect for any obstructions or leaks in the pneumatic system.
- Lift not lowering: Ensure the safety lock bar is disengaged. Check for any obstructions preventing descent.
- Unstable lift: Verify the lift is on a level surface. Ensure the vehicle is centered and properly secured with tie-downs and the front wheel vise.
- Витоки повітря: Inspect all pneumatic connections and the cylinder seals. Refer to the seal replacement section for guidance.
Технічні характеристики
| Бренд | APlusLift |
| Модель | MT1500X |
| Вага товару | 550 фунта |
| Розміри продукту | 130 x 48 x 33 дюймів |
| Тип операції | Повітряне управління |
| Максимальна місткість | 1500 фунтів |
| особливості | New Butterfly Foot Pedal with Auto Neutral Position (Patent Pending), Free Service Jack, Anti Slip Traction Tape, E-Coated Black Paint Finish, Powder-Coated Orange Paint Finish, 8.8 Construction Grade Hardware |
Text Description: A technical diagram illustrating the key dimensions of the APlusLift MT1500X lift table, including length, width, and adjustable height ranges, with and without side extensions.
Гарантія
The APlusLift MT1500X comes with a 2-Year parts replacement warranty. Please note that there is no labor warranty on this product. All returns are subject to a 10% restocking fee.
Підтримка
For any questions or concerns regarding your APlusLift MT1500X, please contact APlusLift customer support. Support is accessible via phone, text, chat, or email. Nationwide warehouses ensure fast delivery and discounted pick-up options.
Manufacturer: Songa Enterprises
