Magic Chef CBM-310 Bread Maker Drive Belt Replacement Instructions

1. Вступ

This manual provides comprehensive instructions for the safe and effective replacement of the drive belt in your Magic Chef CBM-310 bread maker machine. Adhering to these guidelines will ensure proper installation and restore your appliance's functionality.

2. Інформація про безпеку

• Always unplug the bread maker from the power outlet before attempting any maintenance or repair.
• Allow the bread maker to cool completely before handling any internal components.
• Use appropriate tools and exercise caution to avoid injury.
• Якщо ви не впевнені щодо якогось кроку, зверніться до кваліфікованого техніка.
• Тримайте дрібні деталі подалі від дітей.

3. Продукт закінчивсяview: Drive Belt

The drive belt is a critical component responsible for transferring power from the motor to the kneading paddle shaft, enabling the bread maker to mix and knead dough. This replacement part is specifically designed for the Magic Chef CBM-310 model, ensuring a precise fit and optimal performance.

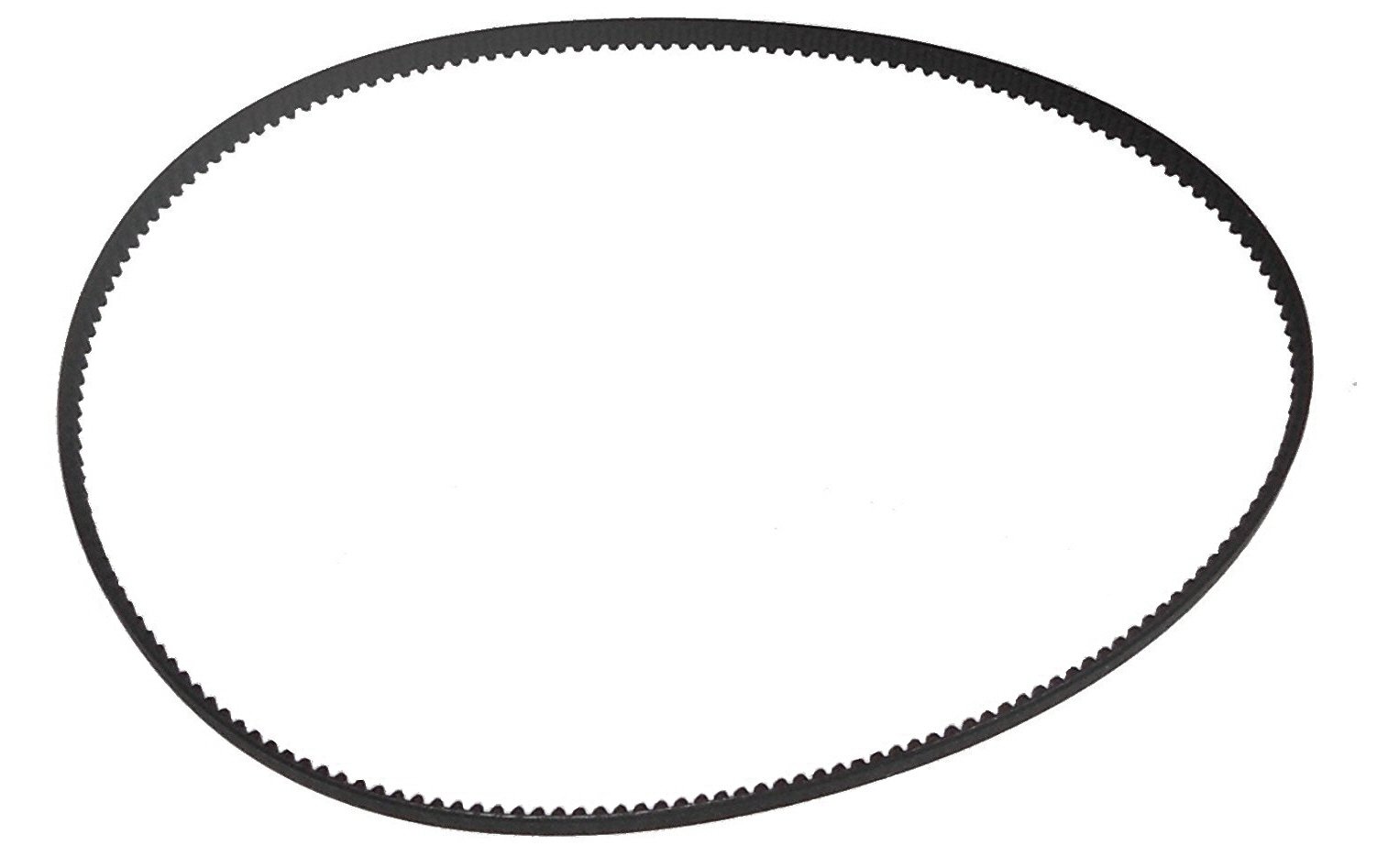

Figure 3.1: Genuine Magic Chef CBM-310 Bread Maker Drive Belt. This image shows the black, flat drive belt, which is an essential component for the bread maker's kneading function.

4. Installation (Drive Belt Replacement)

Follow these steps carefully to replace the drive belt in your Magic Chef CBM-310 bread maker.

1. Приготування: Ensure the bread maker is unplugged and completely cool. Clear a clean, well-lit workspace. Gather necessary tools, which may include a screwdriver (Phillips or flathead, depending on your model's screws) and possibly pliers.
2. Доступ до інтер'єру: Carefully turn the bread maker upside down. Locate and remove the screws securing the bottom panel. Gently lift off the bottom panel to expose the internal components, including the motor and the kneading shaft assembly.
3. Locating the Drive Belt: Identify the existing drive belt, which connects the motor pulley to the larger pulley on the kneading shaft. Inspect its condition for signs of wear, cracking, or breakage.
4. Removing the Old Belt: If the belt is intact, carefully roll it off the pulleys. If it is broken, remove any remaining pieces. Note the orientation of the belt on the pulleys for correct installation of the new one.
5. Installing the New Belt: First, loop the new drive belt around the smaller motor pulley. Then, carefully stretch and guide the belt onto the larger pulley of the kneading shaft. Ensure the belt is seated correctly and evenly on both pulleys. It should be snug but not overly tight.
6. Testing Belt Tension: Once installed, manually rotate the kneading shaft to ensure the belt moves smoothly without slipping or binding.
7. Повторне складання: Carefully re-position the bottom panel and secure it with the screws removed in step 2. Ensure all screws are tightened appropriately, but do not overtighten.
8. Фінальний тест: Plug the bread maker back into a power outlet. Run a short cycle (e.g., a mix cycle without ingredients) to confirm the kneading paddle rotates correctly and smoothly. Listen for any unusual noises.

5. Технічне обслуговування

To maximize the lifespan of your new drive belt and ensure consistent performance of your Magic Chef CBM-310 bread maker:

• Уникайте перевантаження: Do not exceed the maximum ingredient capacity specified in your bread maker's primary user manual. Overloading can strain the motor and belt.
• Регулярне прибирання: Periodically clean the exterior of your bread maker. Ensure no dough or debris accumulates around the kneading shaft, which could impede its movement and stress the belt.
• Періодично перевіряйте: If you notice any changes in kneading performance or hear unusual noises, inspect the belt for wear or damage.

6. Вирішення проблем

If you encounter issues after replacing the drive belt, consider the following:

• Kneading Paddle Not Turning:
  • Ensure the belt is properly seated on both pulleys.
  • Check for any obstructions preventing the kneading shaft from rotating.
  • Verify the motor is functioning (listen for a hum).
• Скрегіт або скрегіт:
  • The belt might be misaligned or rubbing against an internal component. Re-check belt seating.
  • Ensure no debris is caught between the belt and pulleys.
• Проковзування ременя:
  • The belt may not be tensioned correctly or could be the wrong size (though this belt is specific to CBM-310).
  • Pulleys might be dirty or worn.

7. Технічні характеристики

• Тип частини: Привідний ремінь
• Сумісність: Magic Chef CBM-310 Bread Maker Machine
• Стиль ременя: Плоский пояс
• колір: чорний
• Вага товару: Приблизно 0.3 унції
• Виробник: Чарівний шеф-кухар
