AGSHOME DP-D100 WiFi Door/Window Sensor User Manual

1. Вступ

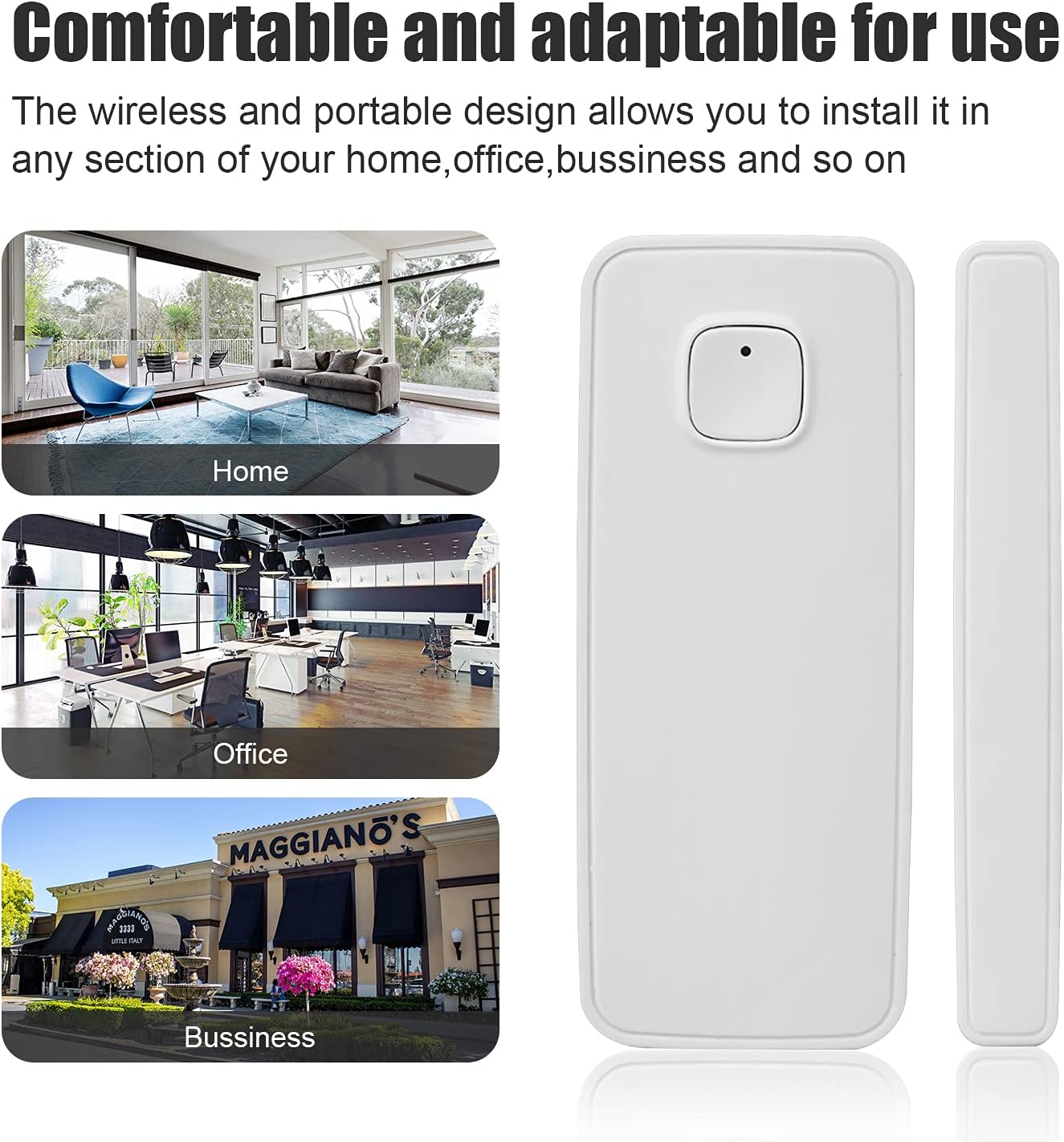

The AGSHOME DP-D100 WiFi Door/Window Sensor is a smart device designed to enhance home security by detecting the opening and closing of doors, windows, cabinets, or drawers. It integrates with smart home platforms like Smart Life, Tuya Smart, Amazon Alexa, and Google Assistant, providing real-time notifications and control via your smartphone.

2. Продукт закінчивсяview

2.1 Вміст упаковки

• Головний блок датчиків
• Магнітний контакт
• CR2 Batteries (pre-installed or included)
• Монтажні гвинти
• Клейкі подушечки
• Посібник користувача

2.2 Розміри виробу

3. Налаштування

3.1 Підготовка

• Переконайтеся, що ваша мережа Wi-Fi працює на частоті 2.4 ГГц. Мережі 5 ГГц не підтримуються.
• Зніміть ізоляційну пластину акумулятора, якщо вона є.
• Завантажте додаток «Smart Life» або «Tuya Smart» з магазину додатків вашого смартфона.

3.2 Device Pairing (AP Mode)

Follow these steps to connect your sensor using AP (Access Point) mode:

1. Відкрийте застосунок Smart Life або Tuya Smart.
2. Press and hold the button on the main sensor unit until the indicator light blinks slowly.
3. In the app, select 'Add Device' and choose the sensor type.
4. Select 'AP Mode' for pairing.
5. Connect your phone to the sensor's Wi-Fi hotspot (usually named 'SmartLife-XXXX' or 'Tuya-XXXX').
6. Поверніться до програми, щоб завершити процес створення пари.

3.3 Device Pairing (EZ Mode)

Alternatively, you can use EZ (Easy) mode for pairing:

1. Відкрийте застосунок Smart Life або Tuya Smart.
2. Press and hold the button on the main sensor unit until the indicator light blinks rapidly.
3. In the app, select 'Add Device' and choose the sensor type.
4. Select 'EZ Mode' for pairing.
5. Confirm your 2.4 GHz Wi-Fi network and enter the password.
6. The app will automatically scan and add the device.

3.4 Монтаж датчика

The sensor can be mounted using either adhesive pads or screws.

• Клейовий монтаж: Clean the surface where the sensor will be placed. Peel off the backing from the adhesive pads and firmly press the main sensor unit and magnetic contact onto the desired locations. Ensure the two parts are aligned and within 1/16 inch (approximately 1.5 mm) of each other when the door/window is closed.
• Гвинтове кріплення: Use the provided screws to secure the main sensor unit and magnetic contact to the door/window frame. Ensure proper alignment and close proximity (within 1/16 inch) for accurate detection.

4. Експлуатація датчика

4.1 Моніторинг та сповіщення в режимі реального часу

Once installed and paired, the sensor will send real-time notifications to your smartphone when the monitored door or window is opened or closed. You can view the history of these events within the Smart Life or Tuya Smart app.

4.2 Інтеграція з інтелектуальним помічником

The AGSHOME DP-D100 sensor is compatible with Amazon Alexa and Google Assistant, allowing for voice control and integration into smart home routines.

To connect with Alexa:

1. Відкрийте програму Amazon Alexa.
2. Go to 'Skills & Games' and search for 'Smart Life' or 'Tuya Smart'.
3. Enable the skill and link your Smart Life/Tuya Smart account.
4. Discover devices, and your sensor should appear.

4.3 Sensor Functionality Overview

5. Технічне обслуговування

5.1 Заміна батареї

The sensor uses one CR2 battery. With low power consumption, the battery life is typically over one year. When the battery is low, you will receive a notification via the app. To replace the battery:

1. Carefully open the main sensor unit.
2. Вийміть стару батарею CR2.
3. Вставте нову батарею CR2, дотримуючись правильної полярності.
4. Close the sensor unit securely.

6. Вирішення проблем

• Sensor not connecting to Wi-Fi: Ensure your Wi-Fi network is 2.4 GHz. 5 GHz networks are not supported. Verify the Wi-Fi password is correct. Try resetting the sensor and attempting the pairing process again.
• Без сповіщень: Check app settings to ensure notifications are enabled. Verify the sensor has sufficient battery power. Ensure the sensor and magnetic contact are properly aligned and within close proximity (recommended 1/16 inch or less).
• Inaccurate detection: Ensure the main sensor unit and magnetic contact are installed correctly and are very close to each other when the door/window is closed. The small arrow on the magnetic piece should face the main sensor unit.
• Alexa/Google Assistant not responding: Confirm the Smart Life/Tuya Smart skill is enabled in your smart assistant app and your account is linked. Try re-discovering devices.

7. Технічні характеристики

8. Гарантія та підтримка

For warranty information and technical support, please refer to the contact details provided in your product packaging or visit the official AGSHOME website. If you encounter issues with the Smart Life or Tuya Smart app, you may also contact their respective support channels.
