1. Вступ
This manual provides essential instructions for the safe and effective use, installation, and maintenance of your SigmasTek SP12-12 (T2) 12V 12Ah F2 Sealed Lead-Acid (SLA) batteries. These batteries are designed for dependable performance in various applications, including the Razor MX650 Dirt Rocket, UPS systems, emergency lighting, and more.
Please read this manual thoroughly before installation and operation to ensure proper handling and to maximize the lifespan of your batteries.
2. Продукт закінчивсяview і особливості
The SigmasTek SP12-12 (T2) battery is a high-quality, factory-fresh 12 Volt 12 Amp Hour F2 SLA battery. It is UL Recognized and CE Certified, ensuring safety and reliability. Key features include:
- Сумісна заміна: Specifically designed for compatibility with models like the Razor MX650 Dirt Rocket.
- Технологія AGM: Absorbed Glass Mat (AGM) technology ensures safe, spill-proof, and maintenance-free operation.
- Excellent Cycle Life: Engineered for long-term use and dependable performance.
- Постійна потужність: Factory-fresh units deliver consistent power output.
- Легка установка: Designed for quick and easy installation using existing hardware.
Image 2.1: Three SigmasTek SP12-12 (T2) 12V 12Ah F2 batteries, showcasing their compact design and F2 terminals.
3. Інформація про безпеку
Будь ласка, дотримуйтесь наступних запобіжних заходів безпеки, щоб запобігти травмам або пошкодженням:
- Не замикайте: Avoid connecting the positive and negative terminals directly, as this can cause severe damage to the battery and pose a fire hazard.
- Do Not Charge in a Sealed Container: Забезпечте належну вентиляцію під час заряджання, щоб запобігти накопиченню газу.
- Перезарядка після використання: Always recharge the battery promptly after use to maintain its health and extend its lifespan.
- Нерозливний: While these batteries are non-spillable, handle them with care to prevent physical damage.
- температура: Do not disassemble, heat above 60°C (140°F), or incinerate the battery.
- Утилізація: Dispose of batteries according to local regulations. Do not discard with household waste.
4. Монтаж
The SigmasTek SP12-12 (T2) batteries are designed for straightforward installation. For compatible devices like the Razor MX650 Dirt Rocket, you must use the existing cables and hardware to connect your new batteries. The batteries feature F2 type terminals.
4.1. Загальні кроки встановлення:
- Приготування: Ensure the device is turned off and disconnected from any power source. Wear appropriate safety gear, including gloves and eye protection.
- Видаліть старі батареї: Carefully disconnect the existing battery terminals (usually negative first, then positive). Note the wiring configuration.
- Вставте нові батареї: Place the new SigmasTek SP12-12 (T2) batteries into the battery compartment. Ensure they fit securely.
- Підключення терміналів: Connect the positive (+) terminal first, then the negative (-) terminal. Ensure all connections are tight and secure.
- Безпечний відсік: Закрийте та закріпіть відсік для батареї.
- Початкова оплата: It is recommended to fully charge the new batteries before their first use.

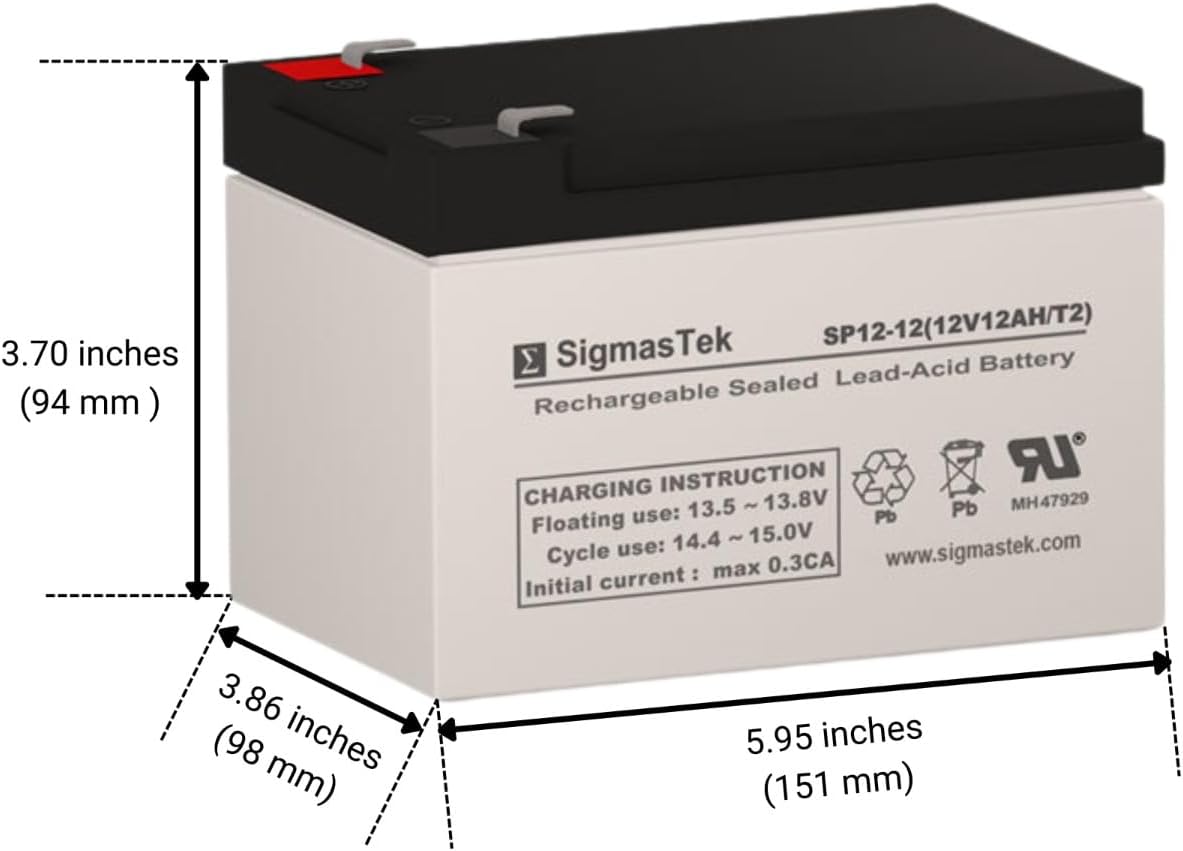

Image 4.1: Detailed dimensions of the SigmasTek SP12-12 (T2) battery, measuring 5.95 inches long, 3.86 inches wide, and 3.70 inches high (3.94 inches including terminals).
4.2. Installation Video Exampле:
Video 4.2: This video demonstrates the installation process for a Razor Dirt Bike, which may be helpful for replacing batteries in similar electric vehicles. (Source: CASIL USA)
5. Операція
SigmasTek SP12-12 (T2) batteries are designed for reliable power delivery in various applications. Ensure your device is compatible with 12V 12Ah F2 SLA batteries.
5.1. Рекомендоване використання:
- Джерело безперебійного живлення (UPS)
- Electric wheelchairs, scooters, bikes (e.g., Razor MX650 Dirt Rocket)
- Electronic apparatus and equipment
- Alarm and security systems
- Emergency first responder equipment
- Аварійне освітлення
- Медичні прилади
- Electric carts
- Telecom equipment
- розподільні пристрої
- Системи сонячної енергії
5.2. Battery Application Examples:
Video 5.1: This video highlights the versatility of 12V 12Ah scooter batteries in various applications. (Source: CASIL USA)
Video 5.2: This video showcases the Vici Battery VB12-12, a similar 12V 12Ah battery, and its applications in mobility scooters, UPS, and other systems. (Source: Battery Supersite)
Відео 5.3: Це відео надає оглядview of the Casil 12 Volt 12 Ah SLA AGM Deep Cycle Battery, demonstrating its features and uses. (Source: CASIL USA)
6. Технічне обслуговування
SigmasTek SP12-12 (T2) batteries are designed to be maintenance-free due to their AGM technology. This means no refilling of water is required.
6.1. Інструкції щодо заряджання:
Refer to the charging instructions printed on the battery label for specific voltage and current recommendations:
- Floating Use: 13.5 - 13.8 В
- Використання циклу: 14.4 - 15.0 В
- Початковий струм: Max 0.3CA
Always use a charger compatible with SLA/AGM batteries. Overcharging or undercharging can reduce battery life.
6.2. Зберігання:
For optimal battery life, store the batteries in a cool, dry place. The storage temperature should not exceed 40°C (104°F). Recharge batteries periodically during long-term storage to prevent deep discharge.

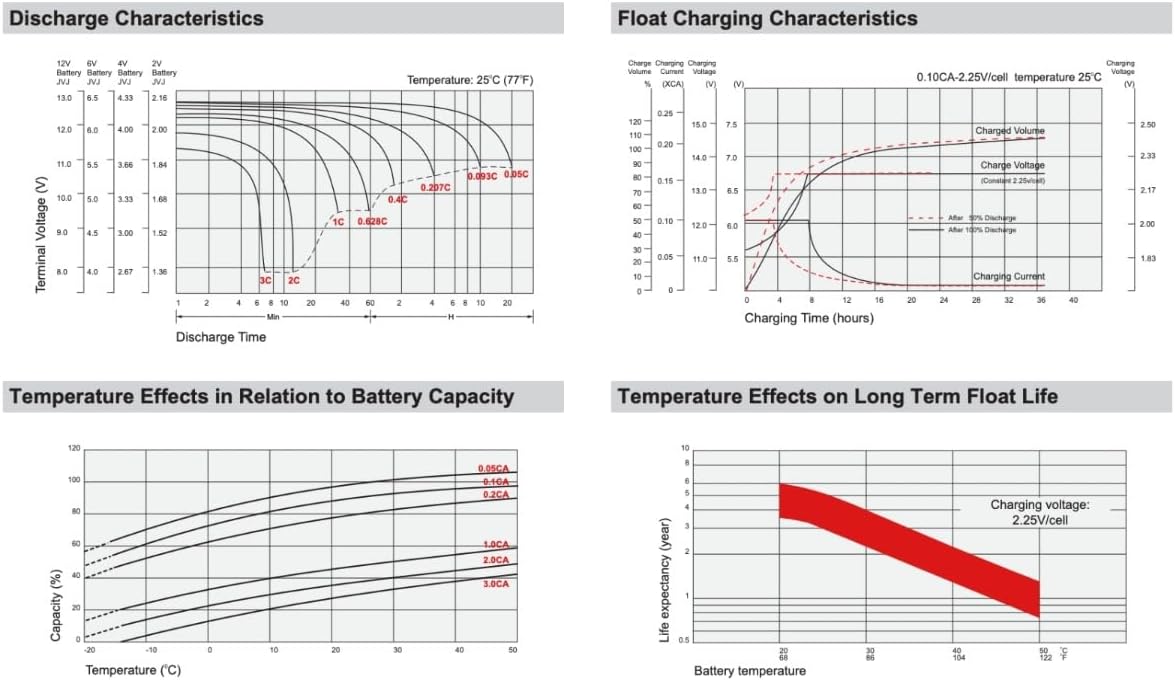

Image 6.1: Technical charts illustrating discharge characteristics, float charging characteristics, and the effects of temperature on battery capacity and long-term float life.
7. Вирішення проблем
If you encounter issues with your SigmasTek SP12-12 (T2) batteries, consider the following common troubleshooting steps:
- Пристрій не вмикається: Check all cable connections to ensure they are secure and correctly attached to the battery terminals. Verify the device's power switch is in the 'on' position.
- Короткий час виконання: Ensure the batteries are fully charged before use. Over time, battery capacity can decrease; if batteries are several years old, replacement may be necessary.
- Акумулятор не заряджається: Verify that the charger is functioning correctly and is compatible with 12V SLA/AGM batteries. Check the charger's connections to the battery and power outlet.
- Фізичні пошкодження: Inspect batteries for any signs of swelling, cracks, or leaks. Damaged batteries should be replaced immediately and disposed of properly.
If problems persist, consult a qualified technician or contact SigmasTek customer support.
Video 7.1: This video provides general information about Beiter DC Power batteries, emphasizing their reliability and ease of installation, which can be helpful for understanding battery functionality. (Source: Beiter DC Power)
8. Технічні характеристики
Detailed technical specifications for the SigmasTek SP12-12 (T2) 12V 12Ah F2 battery:
| Специфікація | Значення |
|---|---|
| Номінальний випtage | 12 В |
| Номінальна ємність (20HR) | 12 Аг |
| Тип батареї | Valve Regulated Lead-Acid Battery, AGM Design |
| Тип терміналу | T2 / F2 |
| Розміри продукту (Д x Ш x В) | 5.95 x 3.86 x 3.7 дюйма (151 x 98 x 94 мм) |
| Вага товару | 23.8 pounds (for a pack of 3) |
| Склад батареї | свинцева кислота |
| Сертифікати | UL Recognized, CE Certified |
Image 8.1: Comprehensive specifications table for the SigmasTek SP12-12 (T2) battery, including voltage, capacity, dimensions, and various applications.
Image 8.2: Table detailing the constant current discharge performance of the battery at 25°C (77°F) across various voltages and discharge times.
Image 8.3: Diagrams illustrating T2 terminal dimensions, a chart depicting the battery's cycle service life at different discharge depths, and a chart showing self-discharge characteristics over time at various temperatures.
9. Гарантія та підтримка
Your SigmasTek SP12-12 (T2) batteries are backed by a full 1-year warranty, ensuring peace of mind and dependable performance. This warranty covers manufacturing defects and ensures the battery meets or exceeds OEM standards.
For warranty claims, technical support, or any questions regarding your battery, please refer to the contact information provided by your retailer or visit the official SigmasTek webсайт.
