KYOCERA Ryobi MTR-42 Trimmer Instruction Manual

вступ

This manual provides essential information for the safe and efficient operation, maintenance, and care of your KYOCERA Ryobi MTR-42 Trimmer. Please read this manual thoroughly before using the tool and keep it for future reference. Understanding and following these instructions will ensure optimal performance and extend the life of your trimmer.

Важлива інформація з безпеки

Недотримання цих інструкцій з безпеки може призвести до серйозних травм або пошкодження майна.

• Always wear eye protection and sturdy shoes when operating the trimmer.
• Keep bystanders and pets at a safe distance from the work area.
• Do not operate the tool on wet or slippery surfaces.
• Inspect the tool before each use for any damage or loose parts.
• Keep hands and feet away from the cutting area during operation.
• For battery-powered tools, always follow the manufacturer's guidelines for charging and handling batteries. (Note: This model is corded, but this is a general safety tip from the source data.)
• Ensure the power switch is in the "OFF" position before connecting to a power source or performing any adjustments.
• Use only accessories and attachments recommended by KYOCERA.

Продукт закінченийview

The KYOCERA Ryobi MTR-42 Trimmer is a versatile woodworking tool designed for precision tasks such as chamfering, grooving, and decorative routing on wood materials. It features a compact design, easy depth adjustment, and a convenient spindle lock for quick bit changes.

Ключові характеристики:

• Діаметр валу: 0.2 inch (6 mm) for various routing bits.
• Повзунний перемикач: Easy-to-operate ON/OFF slide switch for enhanced visibility and control.
• Micro Depth Adjustment: Simple screw-type adjustment ring for precise cutting depth settings.
• One-Touch Clamp база: Quick and secure base fixation with a clamp важіль.
• Блокування шпинделя: Facilitates convenient and safe bit replacement using a single wrench.
• Dust Collection Ready: Connects to a dust collector for cleaner operation (optional nozzle set and hose required).

малюнок 1: The KYOCERA Ryobi MTR-42 Trimmer being used for chamfering wood, demonstrating its compact design and ease of handling. It includes a straight guide for precise cuts.

Налаштування

1. Attaching the Base

The trimmer base is designed for quick attachment and removal. Ensure the base is clean and free of debris before attaching it to the motor unit.

малюнок 2: Клamp lever on the trimmer base allows for quick and secure fixation of the base to the motor unit. Push the lever down to lock and pull up to release.

2. Installing/Changing Routing Bits

Always ensure the trimmer is unplugged from the power source before changing bits.

1. Натисніть і утримуйте кнопку блокування шпинделя, щоб запобігти обертанню шпинделя.
2. Використовуйте наданий гайковий ключ, щоб послабити гайку цанги.
3. Insert the desired routing bit into the collet, ensuring it is fully seated.
4. Міцно затягніть гайку цанги гайковим ключем, утримуючи фіксатор шпинделя. Не перетягуйте.

малюнок 3: The spindle lock feature allows for convenient bit changes using a single wrench, simplifying the process of attaching and detaching routing bits.

3. Регулювання глибини різання

The trimmer features a micro-adjustment ring for precise control over cutting depth.

1. Послабте основу clamp важіль.
2. Rotate the screw-type adjustment ring to set the desired cutting depth. Turning the ring clockwise typically increases depth, while counter-clockwise decreases it.
3. Once the desired depth is set, firmly secure the base clamp важіль.
4. Perform a test cut on a scrap piece of material to verify the depth setting before working on your main project.

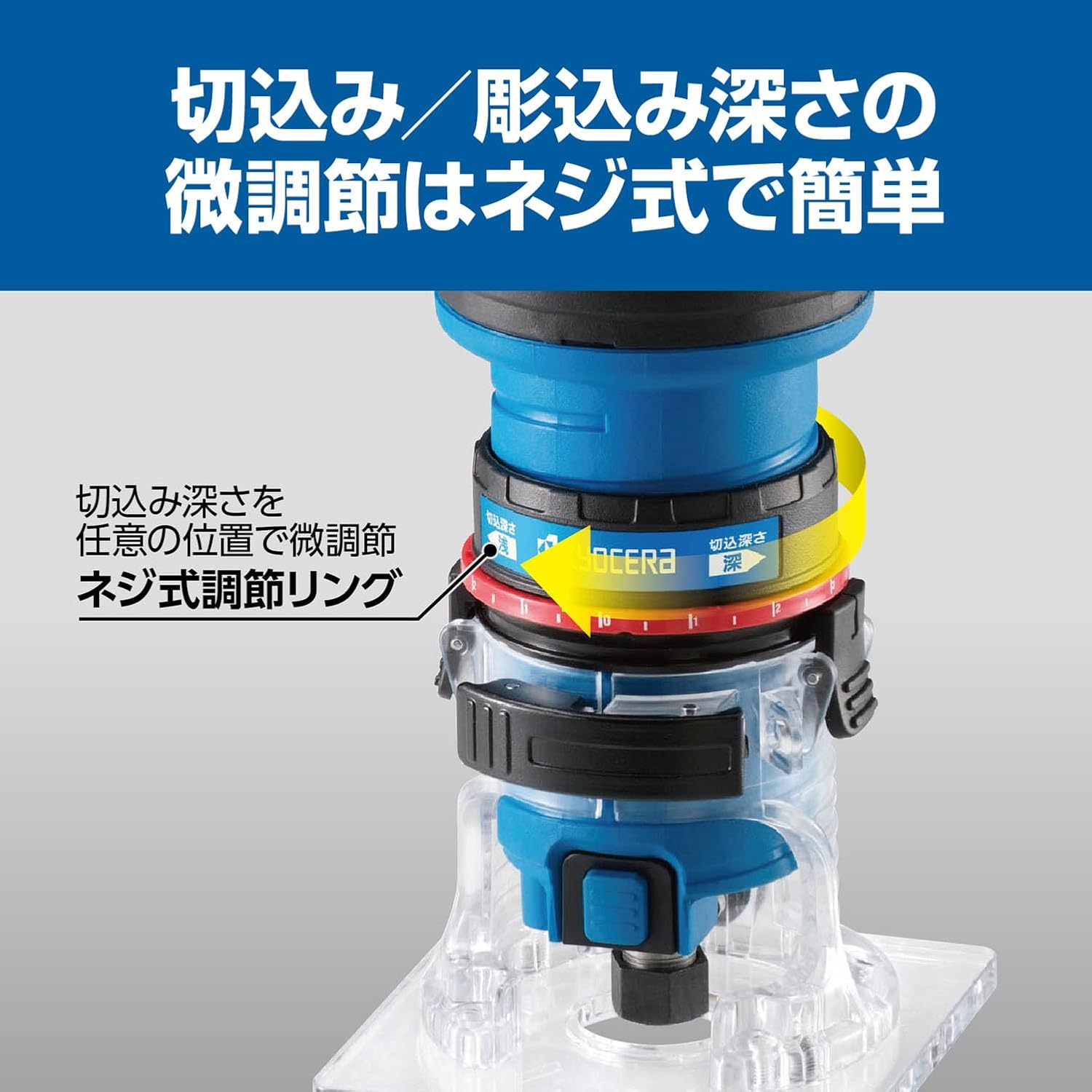

малюнок 4: The screw-type adjustment ring allows for precise, stepless micro-adjustment of the cutting depth, enabling fine-tuning for various applications.

Інструкція з експлуатації

1. Увімкнення/вимкнення живлення

The trimmer is equipped with a visible slide switch for easy power control.

• Повертатися ON: Slide the switch upwards.
• Повертатися ВИМКНЕНО: Slide the switch downwards.
• For safety, when placing the tool down or during breaks, ensure the switch is in the "OFF" position.

малюнок 5: The slide switch is clearly visible and easy to operate. Pushing it up turns the power ON, and pushing it down turns it OFF. The image shows the trimmer in operation.

2. Загальні поради щодо експлуатації

• Завжди міцно закріплюйте заготовку, щоб запобігти її руху під час роботи.
• Maintain a firm grip on the trimmer with both hands.
• Start the trimmer before making contact with the workpiece.
• Move the trimmer smoothly and consistently across the material. Avoid forcing the tool, as this can lead to poor cuts and potential kickback.
• For deeper cuts, it is often better to make multiple shallow passes rather than one deep pass.
• Always route against the direction of bit rotation to maintain control.

Технічне обслуговування

Regular maintenance ensures the longevity and safe operation of your trimmer. Always unplug the tool before performing any maintenance.

1. прибирання

• After each use, clean the trimmer body, base, and collet area with a dry cloth or soft brush to remove dust and debris.
• Не використовуйте розчинники або агресивні хімікати, оскільки вони можуть пошкодити пластикові деталі.
• Переконайтеся, що вентиляційні отвори вільні, щоб запобігти перегріву.

2. Догляд за бітами

• Keep routing bits sharp and clean. Dull bits can cause overheating, poor cuts, and increased strain on the motor.
• Store bits in a protective case to prevent damage.

3. Dust Collection (Optional)

For cleaner operation and to prolong tool life, consider using a dust collection system.

малюнок 6: The trimmer can be connected to a dust collection system using an optional nozzle set and hose (sold separately) for a cleaner work environment.

малюнок 7: Optional accessories include a dust collection adapter for connecting to a dust hose and a dovetail guide (10mm outer diameter / 8mm inner diameter) for precise template-based routing.

Усунення несправностей

Перш ніж звертатися до служби підтримки клієнтів, повторноview наступні поширені проблеми та способи їх вирішення:

Технічні характеристики

Гарантія та підтримка

For warranty information, technical support, or service inquiries, please contact KYOCERA customer service. Keep your purchase receipt and product model number (MTR-42) handy when contacting support.

Відвідайте офіційний сайт KYOCERA webсайт для отримання найактуальнішої інформації про підтримку: Магазин KYOCERA на Amazon
