Novy Monoblock Carbon Filter 7900055

1. Вступ

This manual provides essential information for the proper installation, operation, maintenance, and regeneration of your Novy Monoblock Carbon Filter 7900055. Please read these instructions carefully before using the product to ensure optimal performance and longevity.

The Novy Monoblock Carbon Filter 7900055 is a high-tech, regenerable filter designed to efficiently adsorb molecular air pollutants and odors in your kitchen ventilation system. It is an integral component for maintaining a fresh and clean kitchen environment.

2. Опис продукту

The Novy Monoblock Carbon Filter 7900055 is an advanced filtration solution featuring a unique design for superior odor elimination. Its core consists of a flexible layer containing millions of highly effective activated carbon balls. These carbon balls are engineered with a specialized internal structure of microscopically small channels, forming a sophisticated pore system that effectively binds harmful substances and odor molecules from the air.

This filter is designed to be 12 times regenerable, offering an environmentally friendly and cost-effective solution for air purification. Additionally, the filter exhibits water-repellent properties during cooking, contributing to its durability and consistent performance. Its innovative design ensures efficient air circulation and significant odor reduction, making it suitable for specific Novy convection box types.

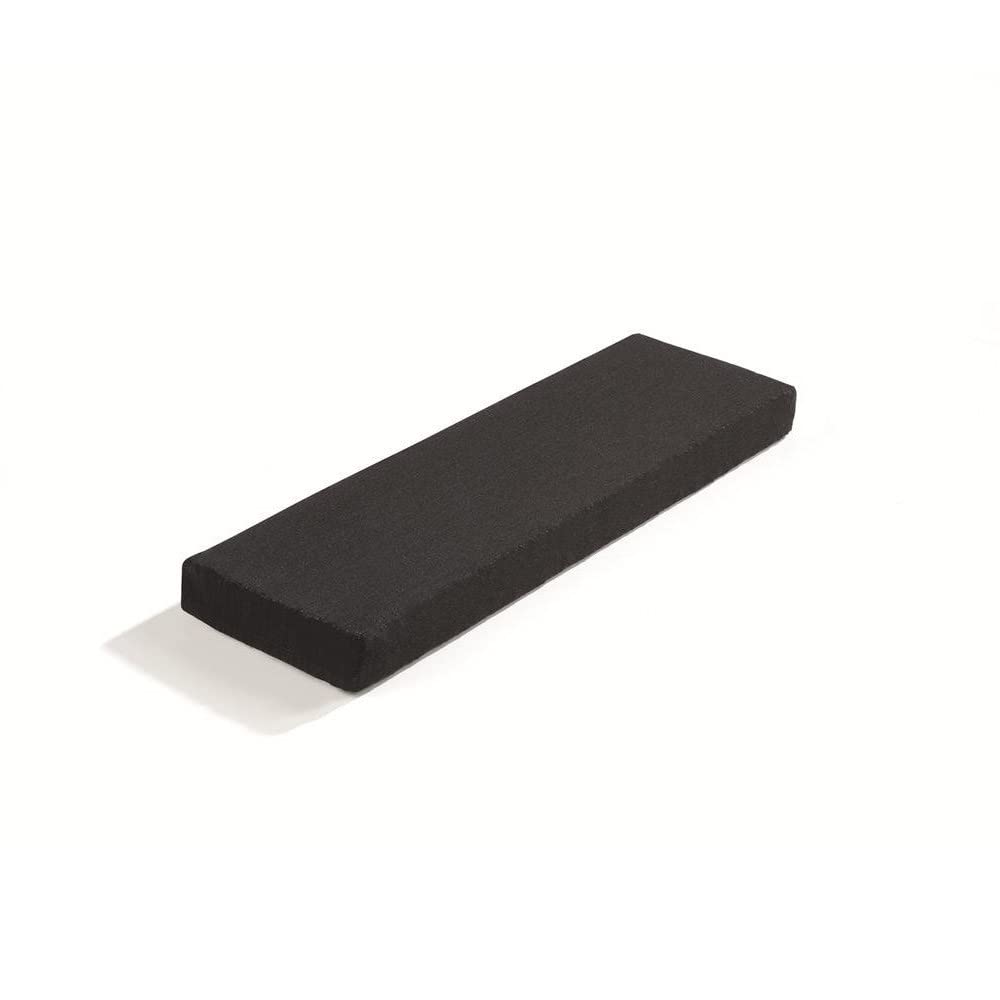

Image 1: The Novy Monoblock Carbon Filter 7900055, showcasinйого компактний дизайн.

3. Інформація про безпеку

Будь ласка, дотримуйтесь наступних правил безпеки:

• Always disconnect the power supply to your cooker hood before installing, removing, or performing maintenance on the carbon filter.
• Handle the filter carefully to avoid damage. Do not bend or puncture the filter material.
• Keep the filter away from open flames or excessive heat, except during the specified regeneration process.
• Do not wash the carbon filter with water or cleaning agents, as this can damage the activated carbon and reduce its effectiveness.
• Ensure the filter is completely cool before handling after regeneration.
• This filter is designed for specific Novy cooker hood models. Using it in incompatible appliances may lead to reduced performance or damage.

4. Налаштування та встановлення

The Novy Monoblock Carbon Filter 7900055 is designed for easy installation into compatible Novy cooker hood systems. Follow these general steps:

1. Відключення живлення: Ensure the cooker hood is completely switched off and disconnected from the main power supply before beginning installation.
2. Відсік фільтра доступу: Open the filter compartment of your cooker hood. This usually involves releasing latches or removing a cover, as detailed in your cooker hood's specific user manual.
3. Видаліть старий фільтр (якщо є): If replacing an existing filter, carefully remove the old carbon filter. Dispose of it according to local regulations.
4. Вставити новий фільтр: Position the Novy Monoblock Carbon Filter 7900055 into the designated slot or housing. Ensure it fits securely and correctly. The filter should sit flush without any gaps that could allow unfiltered air to pass.
5. Безпечний відсік: Закрийте та закріпіть відсік фільтра.
6. Знову підключіть живлення: Знову підключіть витяжку до джерела живлення.

For detailed, model-specific installation instructions, always refer to the user manual provided with your Novy cooker hood appliance.

Image 2: The carbon filter, ready for installation into a compatible Novy cooker hood system.

5. Інструкція з експлуатації

Once installed, the Novy Monoblock Carbon Filter 7900055 operates automatically as part of your cooker hood's recirculation system. When the cooker hood is switched on, air containing cooking odors and pollutants is drawn through the filter. The activated carbon within the filter adsorbs these unwanted molecules, releasing purified air back into the kitchen.

No special operation is required for the filter itself beyond ensuring it is correctly installed and regularly maintained (regenerated) as described in the Maintenance section.

6. Maintenance and Regeneration

The Novy Monoblock Carbon Filter 7900055 is a regenerable filter, designed to be reactivated up to 12 times. Regular regeneration is crucial for maintaining its high odor absorption efficiency and extending its lifespan. It is recommended to regenerate the filter every 3-4 months, depending on cooking frequency and intensity, or when you notice a decrease in odor absorption efficiency.

Regeneration Process:

1. Видалення: Carefully remove the carbon filter from your cooker hood appliance. Refer to your cooker hood's specific manual for removal instructions.
2. Cleaning (Optional): If the filter surface is visibly dirty, gently wipe it with a dry cloth. Do not wash the filter with water or detergents.
3. Oven Regeneration: Place the filter in a preheated oven at approximately 120°C (250°F) for 60 minutes. Ensure the oven is empty and well-ventilated. This heating process reactivates the activated carbon by releasing absorbed odors and moisture.
4. Охолодження: After regeneration, allow the filter to cool down completely to room temperature before handling and reinstallation. This may take several hours.
5. Перевстановлення: Reinstall the regenerated filter into your cooker hood according to the appliance's instructions.

After 12 regenerations, or if the filter's performance significantly degrades despite regeneration, it should be replaced with a new Novy Monoblock Carbon Filter 7900055.

Image 3: The carbon filter, prepared for the oven regeneration process.

7. Вирішення проблем

If you experience issues with your Novy Monoblock Carbon Filter 7900055, consider the following:

• Стійкі запахи:
  • Check if the filter is correctly installed and seated securely.
  • Verify if it's time for regeneration. Follow the steps in Section 6.
  • If the filter has been regenerated 12 times or more, it may need replacement.
• Зменшений потік повітря:
  • While carbon filters typically do not significantly impede airflow unless heavily saturated, ensure the filter is not physically obstructed or damaged.
  • Check your cooker hood's grease filters, as these are more likely to cause airflow issues if clogged.
• Пошкодження фільтра: If the filter appears physically damaged, it should be replaced immediately.

For issues related to the cooker hood appliance itself, consult your cooker hood's user manual or contact Novy customer support.

8. Технічні характеристики

9. Гарантія та підтримка

For warranty information regarding your Novy Monoblock Carbon Filter 7900055, please refer to the documentation provided with your Novy cooker hood appliance or contact Novy customer service directly. The lifespan of the filter is dependent on proper maintenance and regeneration as outlined in this manual.

For technical support, spare parts, or further inquiries, please visit the official Novy webсайт або зверніться до їхніх авторизованих сервісних центрів.

Novy Contact Information: (Please refer to your regional Novy webсайт для отримання конкретних контактних даних.)
