вступ
This manual provides essential information for setting up, operating, maintaining, and troubleshooting your ViewSonic VX2250WM-LED monitor. Please read these instructions carefully before using your monitor to ensure optimal performance and longevity.
малюнок 1: Фронт view з ViewSonic VX2250WM-LED monitor.
Інструкції з налаштування
1. Unpacking and Stand Assembly
Carefully remove the monitor and all components from the packaging. Place the monitor face down on a soft, clean surface to prevent scratches. Attach the stand base to the monitor neck, ensuring it clicks securely into place or is fastened with the provided screw.
малюнок 2: Сторона проfile монітора, що підкреслює його тонкий дизайн.
2. З’єднувальні кабелі
Before connecting any cables, ensure both the monitor and your computer are powered off. The connection ports are located on the rear of the monitor. You may need to tilt the monitor or lay it on its face to access them easily.
- Кабель живлення: Connect the power cable to the monitor's AC IN port and then to a power outlet.
- Відеокабель:
- For digital connection, use the DVI cable. Connect one end to the monitor's DVI port and the other to your computer's DVI output.
- For analog connection, use the VGA (D-SUB) cable. Connect one end to the monitor's D-SUB port and the other to your computer's VGA output.
- Аудіокабель: Connect the audio cable from your computer's audio output to the monitor's AUDIO IN port to utilize the integrated stereo speakers.
малюнок 3: Задня view of the monitor with connection ports.

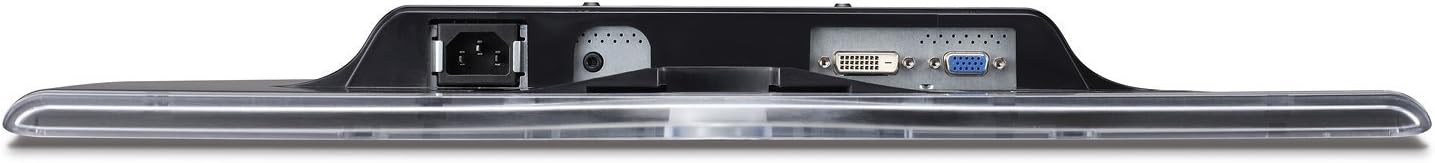

малюнок 4: Детальний view of the monitor's input ports.
3. Початкове увімкнення
Once all cables are securely connected, power on your computer, then press the power button on the monitor. The monitor should automatically detect the input signal. If no image appears, ensure all connections are firm and the correct input source is selected (see Operating Instructions).
Інструкція з експлуатації
Увімкнення/вимкнення живлення
Press the power button, usually located on the front or bottom right of the monitor bezel, to turn the monitor on or off.
Навігація по екранному меню (OSD).
The OSD menu allows you to adjust various monitor settings. Buttons for OSD navigation are typically located on the bottom right of the monitor. Press the menu button to open the OSD, use the arrow buttons to navigate, and the select button to confirm choices. The OSD is designed for intuitive use.
Вибір джерела вхідного сигналу
To switch between DVI and VGA inputs, press the dedicated input selection button (often labeled with an arrow or 'Input'). This is typically a one-button operation, allowing quick switching without navigating through the full OSD menu.
Контроль звуку
Adjust the volume of the integrated stereo speakers through the OSD menu or directly from your computer's operating system. Ensure the audio cable is connected from your computer's audio output to the monitor's AUDIO IN port.
Налаштування дисплея
- роздільна здатність: The monitor supports a Full HD 1920x1080 resolution. For optimal clarity, set your computer's display resolution to 1920x1080. If using a lower resolution, the monitor will still display a clear image, though some older systems may require driver installation for optimal lower resolution display.
- Співвідношення сторін: The monitor features automatic aspect ratio adjustment. If your input signal is 4:3, the image will be displayed in the center of the screen with black bars on the sides, preventing stretching.
- Калібрування кольору: If the image appears "washed out" initially, access your computer's display settings or the monitor's OSD to calibrate color, brightness, and contrast to your preference.
Функції енергозбереження
The VX2250WM-LED monitor is designed for energy efficiency, offering up to 40% power savings compared to standard 22-inch monitors. These features are typically managed automatically or can be fine-tuned within the OSD menu.
Технічне обслуговування
Очищення екрану
Обережно протріть екран м’якою тканиною без ворсу. Для стійких плям злегка протрітьampen the cloth with water or a non-abrasive, ammonia-free screen cleaner. Do not spray cleaner directly onto the screen.
Очищення Casing
Використовуйте м’яку суху тканину для протирання монітора casing. Avoid using strong detergents or abrasive cleaners, as they can damage the finish.
Загальний догляд
Avoid placing heavy objects on the monitor. Keep the monitor away from direct sunlight, heat sources, and excessive moisture. Ensure adequate ventilation around the monitor to prevent overheating.
Усунення несправностей
- Немає живлення:
Ensure the power cable is securely connected to both the monitor and a working power outlet. Check if the power indicator light on the monitor is on.
- Немає сигналу / Порожній екран:
Verify that the video cable (DVI or VGA) is firmly connected to both the monitor and your computer. Ensure your computer is powered on and functioning correctly. Use the monitor's input selection button to confirm the correct input source is chosen (e.g., DVI or VGA).
- Image Appears Washed Out or Incorrect Colors:
Access your computer's display settings (e.g., Windows Display Settings, Mac System Preferences) and the monitor's OSD menu to adjust brightness, contrast, and color temperature. Calibrate the display if necessary. Ensure the video cable is not loose or damaged.
- Fuzzy or Unclear Image at Lower Resolutions:
While the monitor performs well at lower resolutions, for optimal clarity, ensure your computer's display drivers are up-to-date. If using a non-native resolution, some slight blurring may occur, though this monitor is noted for maintaining clarity better than many others.
- No Audio from Integrated Speakers:
Check that the audio cable is connected from your computer's audio output to the monitor's AUDIO IN port. Verify that the volume is not muted or set too low on both the monitor's OSD and your computer's sound settings.
- Monitor Wobbles When Adjusting OSD:
This is a known characteristic due to the stand design. While it may wobble slightly when pressing OSD buttons, it does not affect the monitor's stability during normal use. Minimize interaction with OSD buttons after initial setup.
Технічні характеристики
| Назва моделі | VX2250WM-LED |
| Розмір екрана | 22-Inch (21.5-Inch Viewздатний) |
| Тип панелі | світлодіодне підсвічування |
| роздільна здатність | Повний HD 1920x1080 |
| Співвідношення сторін | 16:9 (supports 4:3 with auto adjustment) |
| Час відгуку | 5 мс |
| Динамічний коефіцієнт контрастності | 10,000,000:1 (MEGA) |
| Підключення | 1x DVI, 1x VGA (D-SUB), 1x Audio In |
| Доповідачі | Вбудовані стереодинаміки |
| Сумісне з кріпленням VESA | 100 мм х 100 мм |
| Вимоги до живлення | 100-240 В змінного струму, 50/60 Гц |
| Розміри (ДxШxВ) | 20.51 x 7.48 x 15.91 дюймів |
| вага | 7 фунта |
Гарантія та підтримка
Інформація про гарантію
The ViewSonic VX2250WM-LED monitor comes with a 3 рік обмеженої гарантії. This warranty covers defects in materials and workmanship under normal use. Additionally, it includes an industry-best pixel performance policy, ensuring a high standard for display quality.
For detailed warranty terms and conditions, please refer to the documentation included with your product or visit the official ViewСоник webсайт.
Технічна підтримка
If you encounter issues that cannot be resolved using the troubleshooting guide, please contact ViewSonic customer support. Support contact information can typically be found on the official ViewСоник webсайті або в упаковці вашого продукту.
