Murray MP3030 Duplex Type MH-T Circuit Breaker Instruction Manual

1. Вступ та інформація з техніки безпеки

This manual provides essential information for the safe installation, operation, and maintenance of the Murray MP3030 Duplex Type MH-T Circuit Breaker. This circuit breaker is designed for use in Murray load centers and meter combinations that are rated to accept Type MH-T breakers. Always consult the wiring diagram of your specific load center to confirm compatibility.

Важливе зауваження щодо безпеки: Installation and servicing of electrical equipment should only be performed by qualified, licensed electricians. Failure to follow these instructions can result in serious injury, death, or property damage. Always disconnect power at the main service panel before working on electrical circuits.

2. Продукт закінчивсяview

The Murray MP3030 is a duplex, 1/2-inch frame circuit breaker. It combines two independent 1/2-inch breaker poles into a single unit, allowing for space-saving in load centers. This unit plugs into one load center stab and requires one panel space. It is HACR rated.

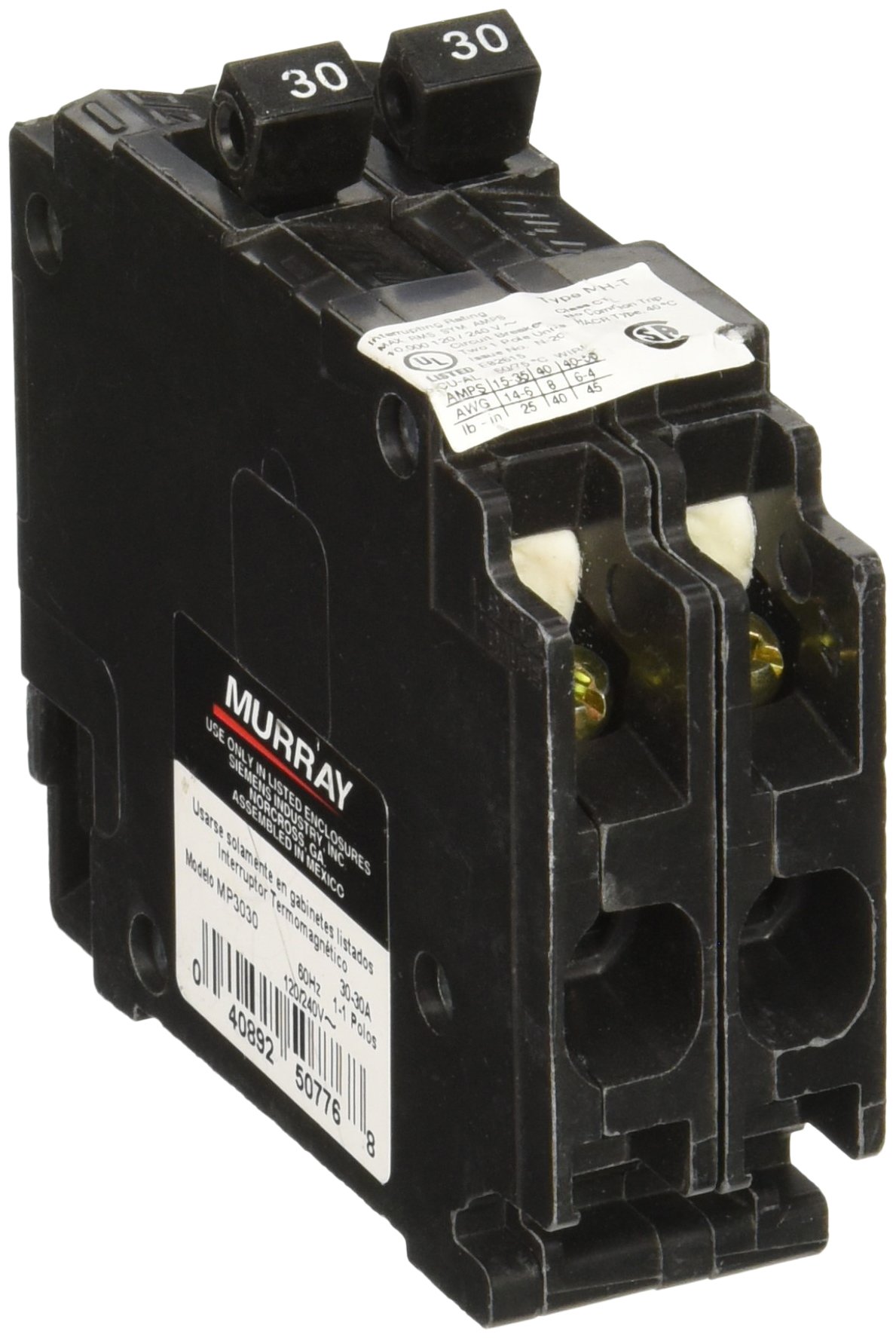

Figure 1: Murray MP3030 Duplex Type MH-T Circuit Breaker. This image shows the front and side view of the circuit breaker, highlighting its compact design and the two independent switches.

Figure 2: MH-T Duplex Circuit Breaker Diagram. This diagram illustrates the physical appearance of the duplex breaker and its internal wiring schematic, showing the line connection and the two load connections occupying one panel space.

3. Монтаж

Installation of the MP3030 circuit breaker must be performed by a qualified electrician in accordance with all local and national electrical codes.

1. Відключення живлення: Before beginning any work, ensure that the main power supply to the load center is completely disconnected at the main service panel. Verify with a voltagтестер.
2. Доступ до панелі: Carefully remove the cover of the load center to expose the bus bar and wiring area.
3. Розміщення автоматичного вимикача: Identify an available slot in the load center. The MP3030 is a 1/2-inch frame breaker and requires one panel space.
4. Підключення: Hook the rear of the breaker onto the retaining clip on the load center's bus bar. Apply firm, even pressure to the front of the breaker until it snaps securely into place.
5. Електропроводка: Connect the circuit wires to the appropriate terminals on the breaker. The MP3030 provides two single-pole circuits. Ensure all connections are tight and secure.
6. Cover Replacement: Once all connections are made and verified, replace the load center cover.
7. Відновлення живлення: Restore power at the main service panel.

To ensure the warranty on a Murray panel is not voided, the use of Murray breakers is required.

4. Операція

The Murray MP3030 circuit breaker functions as a protective device for electrical circuits. Each of the two poles operates independently.

• ON Позиція: When the breaker handle is in the 'ON' position, power is supplied to the connected circuit.
• Позиція ВИМК: Moving the handle to the 'OFF' position manually disconnects power to the circuit.
• Положення СПРОТИВЛЕНО: If an overload or short circuit occurs, the breaker will automatically move to a 'TRIPPED' position (typically midway between ON and OFF). This indicates a fault and interrupts power to protect the circuit.

To reset a tripped breaker, first move the handle firmly to the full 'OFF' position, then push it to the 'ON' position. If the breaker immediately trips again, do not attempt to reset it repeatedly. This indicates a persistent fault that requires investigation by a qualified electrician.

5. Технічне обслуговування

Circuit breakers are generally maintenance-free devices. However, periodic visual inspection is recommended.

• Ensure the load center area is clean and free from dust, debris, or obstructions.
• Check for any signs of physical damage, discoloration, or loose connections on the breaker or wiring.
• Do not attempt to open or repair the circuit breaker. If it is damaged or malfunctioning, it must be replaced.

Any maintenance requiring access to internal components of the load center or direct handling of the breaker should only be performed by a qualified electrician with the power disconnected.

6. Вирішення проблем

If you experience issues with your circuit breaker, consider the following:

• Часті спрацьовування автоматичного вимикача: This often indicates an overload on the circuit or a short circuit. Disconnect some appliances or devices from the circuit and try resetting the breaker. If it continues to trip, there may be a wiring fault or a faulty appliance.
• Вимикач не скидається: If the breaker will not stay in the 'ON' position after being reset, a persistent fault (overload or short circuit) is present. Do not force the breaker.
• No Power to Circuit, Breaker Not Tripped: Check if the main breaker in the service panel has tripped. If not, and the breaker is in the 'ON' position, there might be a loose connection or a fault within the circuit wiring.

For any persistent electrical issues or if you are unsure about the cause of a problem, contact a qualified electrician immediately. Do not attempt to diagnose or repair complex electrical faults yourself.

7. Технічні характеристики

8. Інформація про гарантію

The Murray MP3030 Duplex Type MH-T Circuit Breaker comes with a Lifetime warranty for parts only. For specific terms and conditions, please refer to the official warranty documentation provided by Murray or Siemens -HI.

9. Підтримка

For technical assistance, warranty claims, or further information regarding the Murray MP3030 circuit breaker, please contact a qualified electrician or refer to the official Murray (Siemens -HI) support channels. Always ensure that any electrical work is performed by certified professionals.
