1. Вступ
This user manual provides essential information for the proper installation, function, and maintenance of the Vaillant 090699 Monitoring Electrode. This component is designed for use with specific Vaillant VC and VCW series boilers to ensure safe and efficient operation. Please read this manual thoroughly before installation or service.
2. Інформація про безпеку
WARNING: Installation and service must be performed by a qualified and authorized technician only. Failure to follow these instructions can result in property damage, personal injury, or death.
- Завжди відключайте живлення котла перед будь-яким встановленням, технічним обслуговуванням або ремонтом.
- Ensure the boiler system is depressurized and cooled down before working on it.
- Одягайте відповідні засоби індивідуального захисту (ЗІЗ).
- Refer to the main boiler manual for additional safety precautions and detailed system information.
- Do not modify the electrode or use it for purposes other than its intended function.
3. Продукт закінчивсяview
The Vaillant 090699 Monitoring Electrode is a crucial safety and operational component within Vaillant boiler systems. It detects the presence of a flame, signaling to the boiler's control unit that combustion is occurring. This ensures that gas supply is maintained only when a flame is present, preventing unburnt gas accumulation.

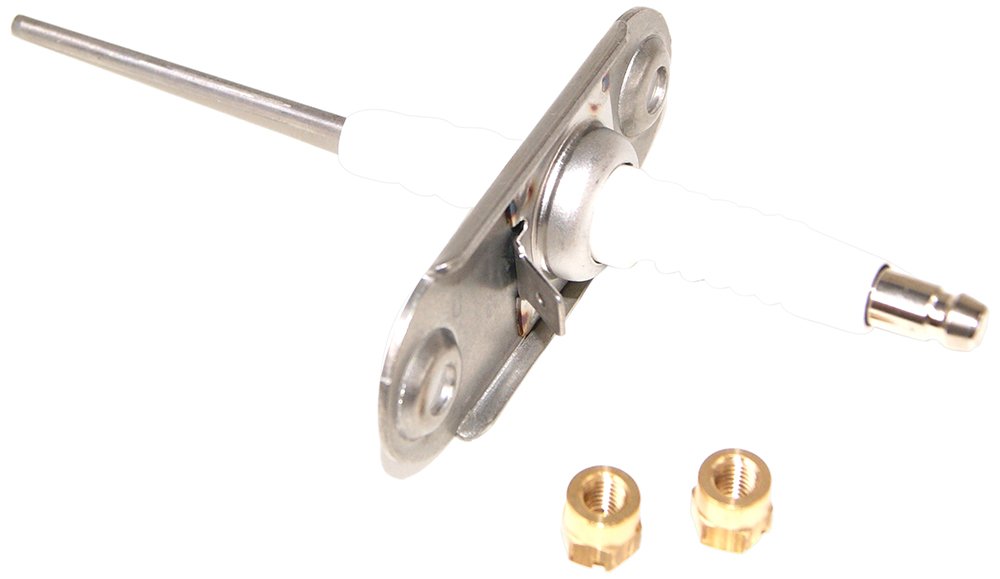

Figure 1: Vaillant 090699 Monitoring Electrode. This image displays the physical appearance of the electrode, which is a critical component for boiler flame detection.
3.1. Сумісність
This monitoring electrode is compatible with the following Vaillant boiler models:
- Vaillant VC 107 E
- Vaillant VC 166 E
- Vaillant VC 206 E
- Vaillant VC 256 E
- Vaillant VCW 206 E
- Vaillant VCW 256 E
Always verify the part number against your boiler's specifications before installation.
4. Встановлення (налаштування)
The installation of the monitoring electrode requires specialized knowledge and tools. It must be performed by a qualified heating engineer.
- Приготування:
- Ensure the boiler is completely shut down and isolated from the electrical supply.
- Close the gas supply valve to the boiler.
- Allow the boiler to cool down completely.
- Accessing the Combustion Chamber:
- Carefully remove the boiler casing and any necessary covers to gain access to the combustion chamber and the existing electrode. Refer to your specific boiler's service manual for detailed instructions on accessing these components.
- Removing the Old Electrode:
- Disconnect the electrical lead from the old monitoring electrode.
- Unscrew or unclip the old electrode from its mounting position. Note its orientation and position for correct installation of the new part.
- Installing the New Electrode:
- Carefully insert the new Vaillant 090699 electrode into the correct mounting position.
- Secure it firmly, ensuring it is correctly seated and oriented as per the original installation.
- Reconnect the electrical lead to the new electrode, ensuring a secure and clean connection.
- Збірка та тестування:
- Replace all covers and the boiler casing.
- Restore the gas supply and electrical power to the boiler.
- Perform a functional test of the boiler, observing the ignition sequence and flame detection. Ensure the boiler operates without fault codes related to flame detection.
- Check for any gas leaks if connections were disturbed.
5. Принципи роботи
The monitoring electrode works by detecting the presence of a flame through ionization. When a flame is present, it creates a conductive path for a small electrical current. The boiler's control board monitors this current. If the current is detected, it confirms the flame is lit, and the gas valve remains open. If the current is not detected (no flame), the control board will attempt re-ignition or shut down the gas supply for safety.
Proper operation of this electrode is critical for the safe and efficient functioning of your Vaillant boiler. A faulty electrode can lead to ignition failures, intermittent operation, or safety lockouts.
6. Технічне обслуговування
Regular maintenance of the monitoring electrode is part of routine boiler servicing. This should be performed annually by a qualified technician.
- Огляд: Visually inspect the electrode for signs of wear, corrosion, cracking, or carbon buildup.
- Прибирання: If carbon buildup is present, carefully clean the electrode tip with fine sandpaper or a wire brush. Avoid bending or damaging the ceramic insulator.
- Перевірка зазорів: Verify the electrode gap according to the specific boiler model's service manual. Incorrect gapping can affect flame detection.
- Заміна: If the electrode shows significant wear, damage, or consistently causes ignition issues despite cleaning, it should be replaced. The lifespan of an electrode varies but typically requires replacement every few years as part of preventative maintenance.
7. Вирішення проблем
If your boiler is experiencing issues related to flame detection, the monitoring electrode may be a contributing factor. Common symptoms and potential solutions are listed below. Always consult a qualified technician for diagnosis and repair.
| Симптом | Можлива причина | Action (Technician Only) |
|---|---|---|
| Котел не розпалюється | Dirty or faulty electrode, incorrect electrode gap, faulty ignition lead. | Inspect and clean electrode, check gap, test ignition lead, replace electrode if necessary. |
| Boiler ignites then immediately shuts down (lockout) | Electrode not detecting flame, poor flame signal, faulty control board. | Clean or replace electrode, check gas pressure, inspect burner, test control board. |
| Intermittent boiler operation | Loose electrode connection, intermittent flame signal, partial blockage. | Check all connections, clean electrode, inspect burner for blockages. |
8. Технічні характеристики
| Особливість | Деталь |
|---|---|
| Номер деталі | 090699 |
| Виробник | Vaillant |
| Розміри продукту (Д x Ш x В) | 11 х 8 х 7 см |
| вага | 80 грами |
| застосування | Flame monitoring in compatible Vaillant VC/VCW boilers |
9. Інформація про гарантію
Specific warranty details for the Vaillant 090699 Monitoring Electrode are typically provided at the point of purchase or can be found in the documentation accompanying the product. Generally, Vaillant parts come with a manufacturer's warranty against defects in materials and workmanship. Please retain your proof of purchase for warranty claims.
For detailed warranty terms and conditions, please refer to the official Vaillant website or contact your authorized Vaillant dealer.
10. Підтримка та контакти
For technical assistance, installation queries, or troubleshooting beyond the scope of this manual, please contact a qualified Vaillant service technician or your local Vaillant support center.
You can find contact information for Vaillant support on their official webсайт: www.vaillant.com
When contacting support, please have your boiler model number and the part number (090699) ready.
