Amana Microwave Magnetron Replacement Part Instruction Manual

1. Продукт закінчивсяview

This document provides essential information for the installation and safe handling of the Generic Microwave Magnetron replacement part, designed for various Amana microwave oven models. This component is critical for the proper functioning of your microwave oven.

Що в коробці

• 1 x Microwave Magnetron

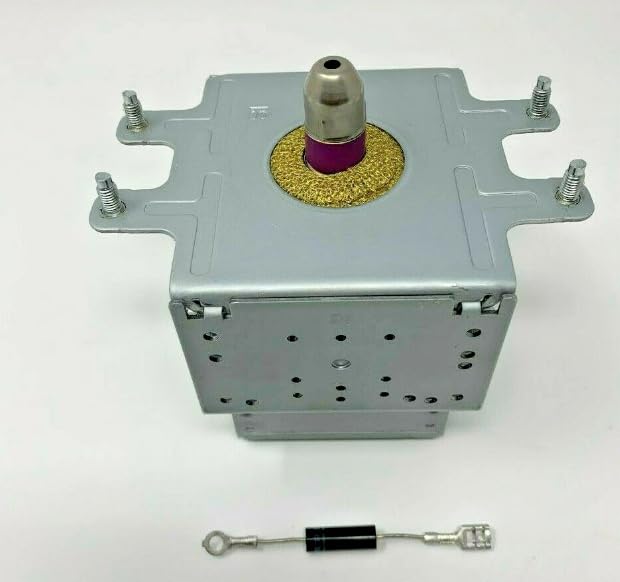

Image: A typical microwave magnetron component. This component is crucial for generating the microwaves that heat food.

2. Важлива інформація з безпеки

УВАГА: Мікрохвильові печі містять високовольтніtage components that can store a lethal electrical charge even when unplugged. Installation and repair of microwave magnetrons should only be performed by qualified and experienced service technicians. Attempting to replace this part without proper training and safety precautions can result in severe injury or death.

• Always unplug the microwave oven from the power source before attempting any service or installation.
• Розряд високої гучностіtage конденсатор before touching any internal components. Refer to your specific microwave oven's service manual for proper capacitor discharge procedures.
• Використовуйте відповідні засоби індивідуального захисту, включаючи ізотермічні рукавички.
• Do not operate the microwave oven with the outer casing removed or if the magnetron is damaged.
• Ensure all connections are secure and correctly installed before restoring power.

3. Compatible Amana Microwave Models

This magnetron is compatible with a wide range of Amana microwave oven models. Please verify your specific model number against the list below to ensure compatibility. This list includes models from the product title, description, and feature bullets.

Частковий список сумісних моделей:

This list represents a broad range of compatible models. Always cross-reference with your specific microwave oven's model and part number to ensure correct fitment.

4. Інструкції зі встановлення

Рекомендовано професійне встановлення: Due to the high-voltage components within microwave ovens, installation of this magnetron should only be performed by a certified appliance repair technician. Improper installation can lead to serious injury, damage to the appliance, or fire.

General Installation Steps (for qualified technicians only):

1. Відключити живлення: Від’єднайте мікрохвильову піч від електричної розетки.
2. Розрядний конденсатор: Safely discharge the high-voltage capacitor using appropriate tools and procedures. Refer to your specific microwave oven's service manual for detailed instructions.
3. Access Magnetron: Carefully remove the microwave oven's outer casing and any internal shielding to access the magnetron. Note the position and connections of the old magnetron.
4. Remove Old Magnetron: Disconnect the wiring and mounting screws holding the old magnetron in place.
5. Install New Magnetron: Position the new magnetron, ensuring proper alignment. Secure it with the mounting screws.
6. Підключіть проводку: Reconnect the wiring to the new magnetron, ensuring all connections are tight and correct.
7. Зберіть: Replace any shielding and the outer casing. Ensure all screws are tightened.
8. Тест: Plug the microwave oven back into the power outlet and perform a test run with a cup of water to ensure proper operation. Observe for any unusual noises or smells.

5. Operating Your Microwave Oven

After successful installation of the magnetron, your microwave oven should function as intended. Refer to your specific Amana microwave oven's user manual for detailed operating instructions, cooking settings, and safety guidelines.

• Ensure the microwave door closes securely before operation.
• Do not operate an empty microwave oven.
• Використовуйте лише придатний для мікрохвильової печі посуд.

6. Технічне обслуговування

The magnetron itself is a sealed component and does not require user maintenance. Regular maintenance of your microwave oven typically involves:

• Прибирання: Regularly clean the interior and exterior of the microwave oven with a mild detergent and soft cloth. Avoid abrasive cleaners.
• Перевірка ущільнювача дверей: Periodically check the door seal for any signs of damage or wear, which could lead to microwave leakage.
• Вентиляція: Ensure the microwave's ventilation openings are clear and unobstructed.

7. Усунення поширених проблем

If your microwave oven is not heating after magnetron replacement, or if you experience other issues, consider the following:

• Без нагрівання:
  • Verify the magnetron was installed correctly and all connections are secure.
  • Check if the high-voltage capacitor was properly discharged and recharged.
  • Ensure the microwave door interlock switches are functioning correctly.
• Незвичайні шуми/запахи:
  • Негайно вимкніть мікрохвильову піч з розетки.
  • This could indicate a faulty component or improper installation. Seek professional assistance.
• Немає живлення:
  • Перевірте побутовий автоматичний вимикач або запобіжник.
  • Ensure the microwave is properly plugged into a working outlet.

For complex issues or if you are unsure about any repair step, always consult a qualified service technician.

8. Технічні характеристики продукту

9. Інформація про гарантію

Warranty details for this Generic replacement part are not explicitly provided in the product information. Please refer to the seller's return policy or contact the seller directly for specific warranty terms and conditions.

Політика повернення: The product listing indicates a 30-day return policy from the buybox winner.

10. Підтримка клієнтів

For technical assistance or inquiries regarding this magnetron, please contact the seller, TOOTOK, through the Amazon platform where the product was purchased. For issues related to your Amana microwave oven's overall operation, please refer to the original appliance manufacturer's support channels.

Продавець: TOOTOK
