MOVA Robotic Mower Garage Instruction Manual

1. Продукт закінчивсяview

The MOVA Robotic Mower Garage is designed to provide essential protection for your MOVA LiDAX Ultra 1000 or 2000 robotic lawn mower. This accessory shields your mower from harsh weather conditions, including rain and direct sunlight, thereby helping to extend its operational lifespan.

1.1 Сумісність

• Compatible with MOVA LiDAX Ultra 1000 Robotic Mower.
• Compatible with MOVA LiDAX Ultra 2000 Robotic Mower.
• Не сумісний with MOVA LiDAX Ultra 3000 AWD Robotic Mower.

1.2 Основні характеристики

• Захист від погодних умов: Safeguards the mower against rain and sun exposure.
• Цілісність сигналу: Designed to prevent interference with the mower's signal or connection.
• Легка установка: Simple and straightforward setup process.

1.3 Що в коробці

Будь ласка, переконайтеся, що всі компоненти присутні перед початком встановлення:

• Дах х1
• Support Frame x2
• Ground Nail x8
• Quick-Release Fastener x10
• Шестигранний ключ x1
• Короткий посібник x1
• MOVA Sticker x1

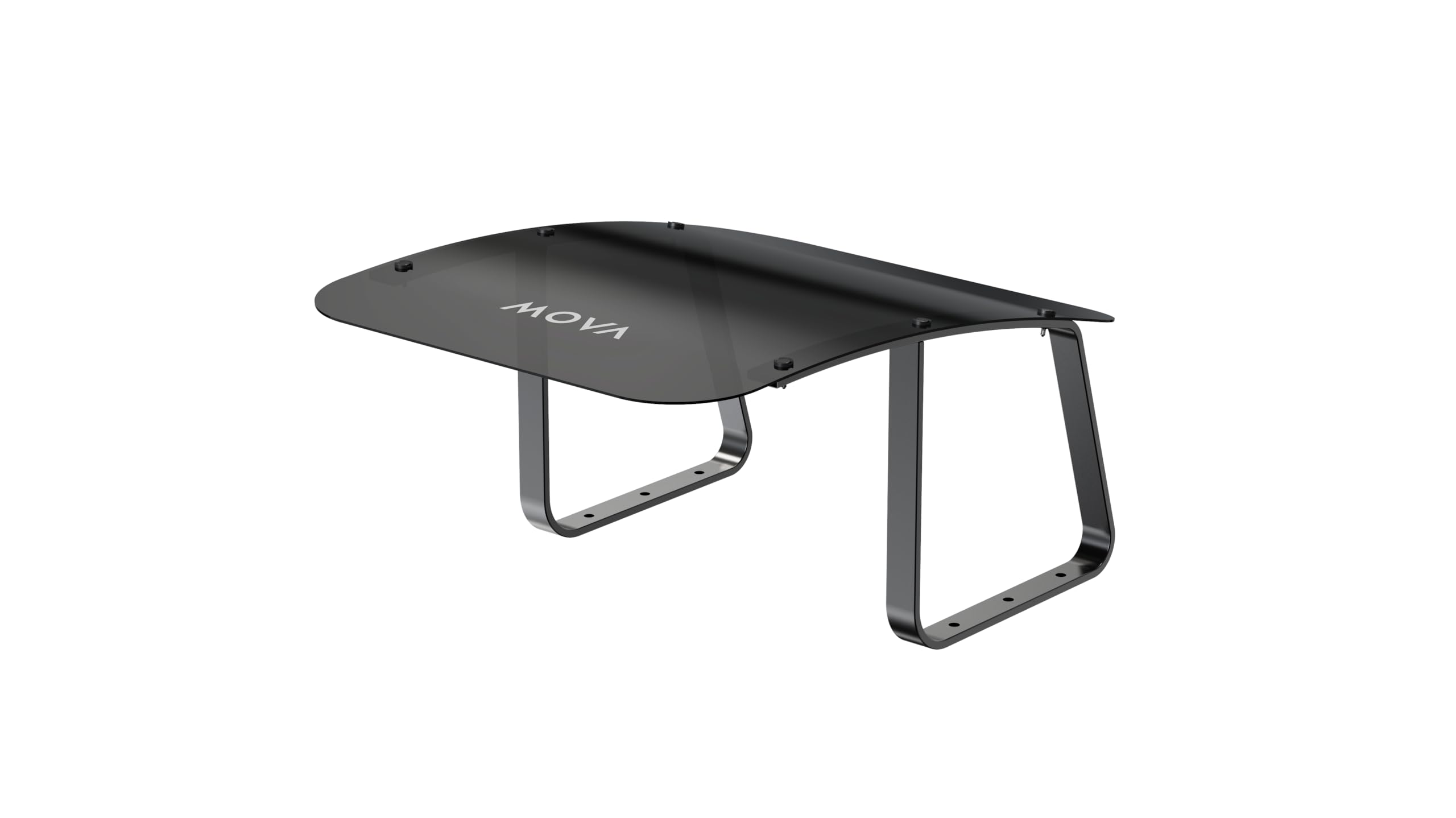

Image 1.1: The MOVA Robotic Mower Garage providing shelter for a robotic mower.

2. Інформація про безпеку

Уважно прочитайте всі інструкції перед складанням та використанням. Зберігайте цей посібник для подальшого використання.

• Під час складання переконайтеся, що всі компоненти надійно закріплені, щоб запобігти нестабільності.
• Не вносьте жодних змін до виробу, оскільки це може порушити його структурну цілісність та анулювати гарантію.
• Тримайте дітей і домашніх тварин подалі від місця збору.
• Position the garage on a level surface to ensure stability.
• Regularly inspect the garage for any signs of wear or damage. Replace damaged parts immediately.

3. Посібник із встановлення

Follow these steps to properly install your MOVA Robotic Mower Garage:

1. Розпакуйте компоненти: Carefully remove all items from the packaging and verify against the 'What's in the Box' list.
2. Assemble Support Frames: Connect the parts of the two support frames as indicated in the Quick Start Guide. Ensure all connections are firm.
3. Прикріпити дах: Place the roof onto the assembled support frames. Secure the roof to the frames using the provided quick-release fasteners. Tighten them with the hex key.
4. Position Garage: Carefully place the assembled garage over your robotic mower's charging station. Ensure it is centered and does not obstruct the mower's entry or exit path.
5. Закріпити на землі: Use the eight ground nails to firmly secure the garage to the ground. Push them through the designated holes in the support frames until the garage is stable.
6. Підтвердити дозвіл: Confirm that the mower can freely dock and undock without making contact with the garage structure. Ensure there is no interference with the mower's signal.

Image 3.1: MOVA Robotic Mower Garage components.

4. Операція

The MOVA Robotic Mower Garage is designed to seamlessly integrate with your MOVA LiDAX Ultra 1000 or 2000. Once installed, the garage provides a protective cover for your mower while it is docked at its charging station.

• Автоматичний захист: The garage functions passively, providing continuous protection for your mower when it returns to its charging station.
• Цілісність сигналу: The design ensures that the garage does not interfere with the robotic mower's navigation signals or charging connection.
• Mower Docking: Ensure the garage is positioned correctly to allow the mower to dock and undock without obstruction. Observe the mower's first few docking cycles after installation to confirm proper alignment.

5. Технічне обслуговування

Regular maintenance will ensure the longevity and effectiveness of your robotic mower garage.

• Прибирання: Clean the roof and support frames periodically with a soft, damp cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the plastic material.
• Огляд: Annually, or more frequently if exposed to severe weather, inspect all fasteners and ground nails to ensure they are tight and secure. Check the structure for any signs of damage or wear.
• Видалення сміття: Keep the area around and under the garage clear of leaves, grass clippings, and other debris that could obstruct the mower or charging station.

6. Вирішення проблем

If you encounter issues with your MOVA Robotic Mower Garage, refer to the following common problems and solutions:

• Mower Not Docking Properly:
  • Ensure the garage is aligned correctly with the charging station.
  • Check for any physical obstructions (e.g., debris, overgrown plants) blocking the mower's path into the garage.
  • Verify that the garage is not interfering with the mower's navigation signals. Try slightly adjusting the garage's position.
• Garage Appears Unstable:
  • Confirm that all eight ground nails are securely fastened into the ground.
  • Ensure the support frames are properly assembled and all quick-release fasteners are tightened using the hex key.
  • Verify that the garage is placed on a relatively level and firm surface.
• Damage to Garage Components:
  • If any part of the garage is damaged, contact MOVA customer support for replacement parts or guidance. Do not attempt to repair damaged structural components yourself.

7. Технічні характеристики

8. Гарантія та підтримка

8.1 Гарантія на виріб

The MOVA Robotic Mower Garage comes with a Гарантія на продукт 3 роки. This warranty covers manufacturing defects and ensures reliable operation under normal use. Please retain your proof of purchase for warranty claims.

Image 8.1: MOVA Service Policy overview.

8.2 Підтримка клієнтів

For technical assistance, troubleshooting not covered in this manual, or warranty inquiries, please refer to the Quick Start Guide included in your product packaging. You may also visit the official MOVA website for additional support resources and contact information.

MOVA is committed to providing a 24/7 Rapid Responding Service Team to assist you with any product-related concerns.
