Інструкція з експлуатації акумулятора WEIZE 12V 100Ah LiFePO4

вступ

This manual provides essential information for the safe and efficient use of your WEIZE 12V 100Ah LiFePO4 Deep Cycle Lithium Battery. This battery is designed for energy storage applications, offering high performance and a long cycle life. It features a compact, lightweight design and includes a smart Battery Management System (BMS) for enhanced protection.

Please read this manual thoroughly before installation and operation to ensure proper usage and to maximize the lifespan of your battery.

Інформація про безпеку

ПОПЕРЕДЖЕННЯ: Недотримання цих інструкцій з безпеки може призвести до пожежі, ураження електричним струмом, травмування або пошкодження акумулятора та іншого майна.

• Не замикайте клеми акумулятора.
• Не нагрівайте та не спалюйте акумулятор.
• Не занурюйте батарею в рідину.
• Не розбирайте батарею.
• Use only a dedicated LiFePO4 battery charger.
• Не підключайте більше двох батарей послідовно.
• This battery is intended for energy storage purposes only. Do not use this battery as a car starting battery or a golf cart battery.
• Забезпечте належну вентиляцію під час заряджання та роботи.
• Зберігати в недоступному для дітей місці.

Продукт закінченийview

The WEIZE 12V 100Ah LiFePO4 battery is engineered for superior performance and durability. Key features include:

• Чудова продуктивність: Provides 1.28kWh of energy, supporting a maximum load of 1536W with a continuous discharge current of up to 100A (peak 500A for 3 seconds).
• Довгий термін служби: Offers over 2000 cycles at 100% depth of discharge, or 8000 cycles at 50% depth of discharge.
• Built-In 100A BMS: Protects against overcharge, over-discharge, overcurrent, short-circuiting, and extreme temperatures (both low and high).
• Легкий і компактний: Significantly lighter than lead-acid batteries, making it ideal for various applications.
• Захист від низьких температур: The BMS automatically cuts off charging when temperatures are below freezing (0°C / 32°F) to prevent damage.

Image: The WEIZE 12V 100Ah LiFePO4 battery, highlighting its compact dimensions (10.24"W x 6.6"D x 8.27"H) and lightweight design (21.8 lbs). It is 25% smaller and 75% lighter than a comparable 100Ah SLA battery.

Image: The WEIZE 12V 100Ah LiFePO4 battery, illustrating its 1280Wh energy capacity and power delivery for various appliances, such as 10W for 12.8 hours, 100W for 12.8 hours, 600W for 2.1 hours, and 1200W for 1 hour.

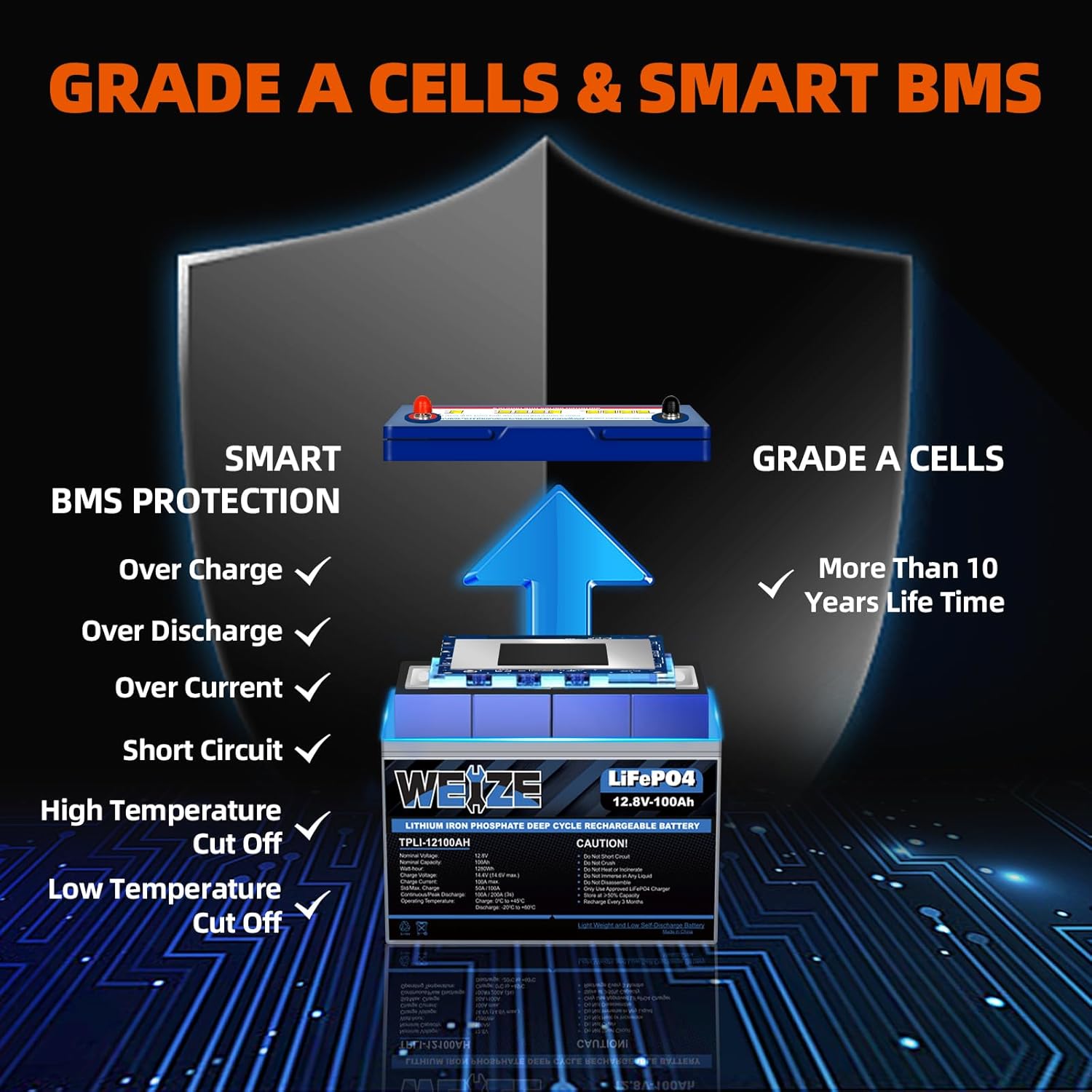

Image: Diagram showing the internal structure of the WEIZE LiFePO4 battery with Grade A cells and Smart BMS protection. The BMS provides protection against overcharge, over-discharge, overcurrent, short circuit, high temperature cut-off, and low temperature cut-off.

Налаштування

Початкова зарядка

Before first use, it is recommended to fully charge your WEIZE LiFePO4 battery. Use a dedicated LiFePO4 compatible charger. Ensure the charger settings are appropriate for lithium iron phosphate batteries (typically 14.4V to 14.6V). Avoid chargers with "equalizing" or "desulfation" modes, as these are for lead-acid batteries and can damage your LiFePO4 battery.

Підключення акумуляторів

For parallel connections, ensure all batteries are at a similar state of charge before connecting. Do not connect more than two batteries in series. Always use appropriate gauge wiring and secure connections to prevent arcing or overheating.

The battery is equipped with Marine Terminals for secure connections.

Інструкції з експлуатації

The WEIZE 12V 100Ah LiFePO4 battery is versatile and suitable for various deep cycle applications:

• RV та Camping: Powering appliances, lights, and electronics in recreational vehicles and during campпоїздки.
• Сонячні системи: Зберігання енергії, що виробляється сонячними панелями, для автономного або резервного живлення.
• Морські програми: Ideal for fish finders, ice fishing, and boating electronics.
• Тролінгові двигуни: Provides reliable and long-lasting power for electric trolling motors.

Always ensure your application's power requirements do not exceed the battery's maximum continuous discharge current of 100A or peak discharge current of 500A (for 3 seconds).

Image: Collage showing common applications for the WEIZE LiFePO4 battery, including powering an RV, a house with solar panels, a boat, and providing energy for campінж.

Технічне обслуговування

Зарядка

Always use a LiFePO4 compatible charger. The recommended charging voltage is between 14.4V and 14.6V. Avoid charging the battery when its internal temperature is below 0°C (32°F). The built-in BMS will automatically prevent charging in freezing conditions to protect the battery.

Зберігання

For long-term storage, discharge the battery to approximately 50% of its capacity. Store the battery in a cool, dry place, away from direct sunlight and extreme temperatures. It is recommended to check and charge the battery every 3 months during storage to maintain its health.

Усунення несправностей

Battery Appears Dead (BMS Cutoff)

If the battery appears completely dead, it is likely that the built-in Battery Management System (BMS) has triggered a protective shutdown due to conditions such as over-discharge, overcurrent, or short-circuiting. The BMS will automatically cut off the battery, and the voltage may drop below 1V.

To reactivate the battery:

1. Disconnect the battery from any load.
2. Connect a LiFePO4-compatible charger to the battery. The BMS will automatically reactivate after approximately 1 second once the circuit is cut off and a charging voltage застосовується.
3. If the battery does not reactivate immediately, try connecting one charger cable to its respective terminal and gently tapping the other charger cable to its terminal several times. This can sometimes help "wake up" the BMS.

Ensure that the cause of the BMS shutdown (e.g., short circuit, excessive load) is resolved before attempting to reactivate and use the battery.

Технічні характеристики

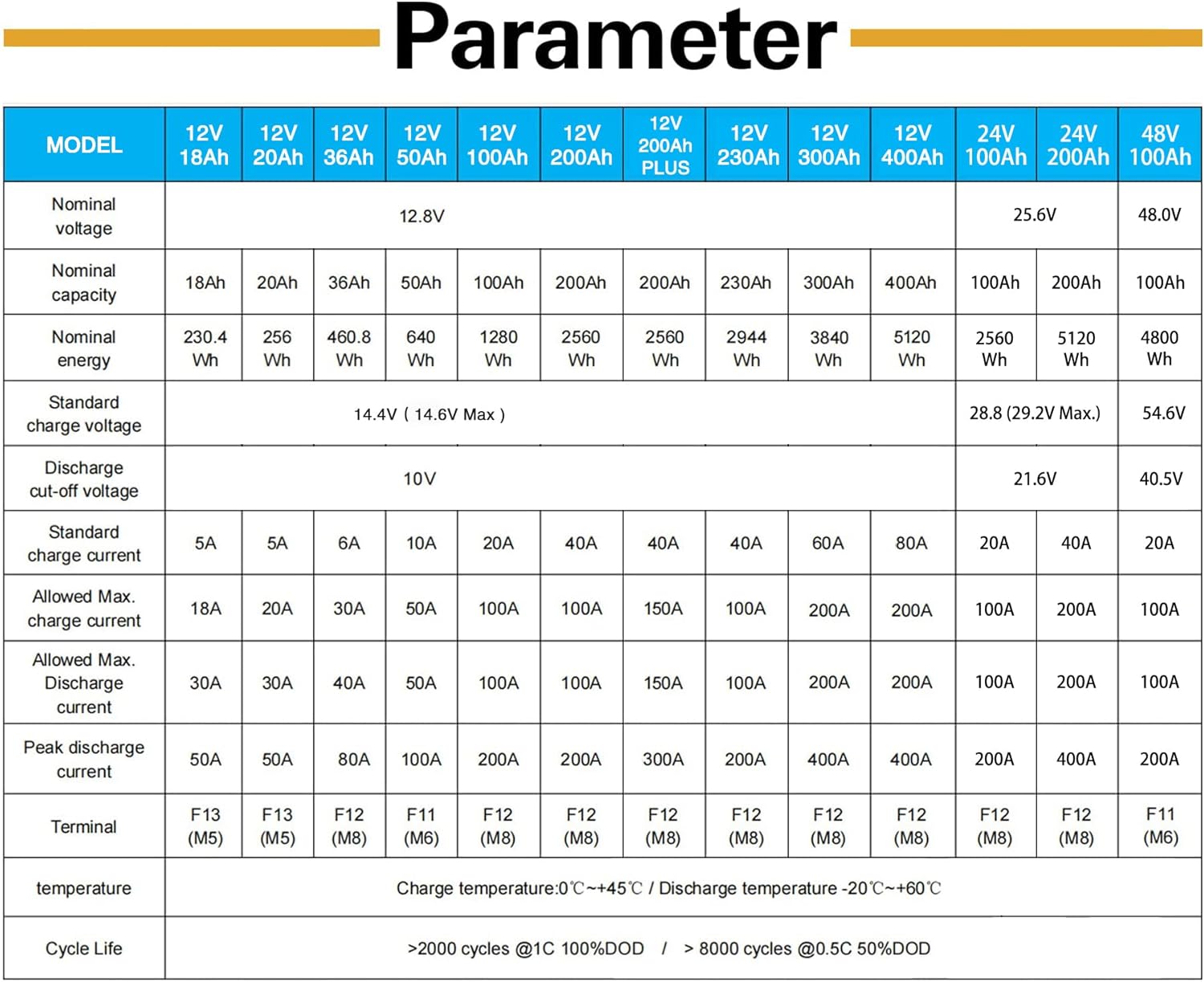

Image: A detailed parameter table for various WEIZE LiFePO4 battery models, including nominal voltage, nominal capacity, energy, standard charge voltage, граничний об’єм викидуtage, standard charge current, allowed max charge current, allowed max discharge current, peak discharge current, terminal type, temperature ranges, and cycle life.

Гарантія

The WEIZE 12V 100Ah LiFePO4 Battery (Model BAC-0110) comes with a Гарантія 10 рікЦя гарантія поширюється на дефекти матеріалів та виготовлення за умов нормального використання та обслуговування. Будь ласка, збережіть чек про покупку для пред'явлення претензій за гарантією.

For detailed warranty terms and conditions, please refer to the official WEIZE webсайту або зв’яжіться зі службою підтримки клієнтів.

Підтримка

For technical assistance, troubleshooting, or warranty inquiries, please contact WEIZE customer support through the following channels:

• Webсайт: Visit the official WEIZE webсайт із поширеними запитаннями та ресурсами підтримки.
• Електронна пошта: Refer to your product packaging or the WEIZE webсайт для адрес електронної пошти служби підтримки клієнтів.
• телефон: Contact numbers may be available on the WEIZE webсайт для прямої підтримки.

When contacting support, please have your battery model number (BAC-0110) and proof of purchase readily available.
