HanOaki DDS1108 Single Phase Energy Meter User Manual

вступ

Welcome to the HanOaki DDS1108 Single Phase Energy Meter user manual. This document provides essential information for the safe and efficient installation, operation, and maintenance of your energy meter. Please read this manual thoroughly before using the device.

Інформація про безпеку

УВАГА: Electrical installation should only be performed by qualified personnel. Disconnect power before installation or maintenance. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Ensure all local electrical codes and regulations are followed.
• Не використовуйте лічильник, якщо він виглядає пошкодженим.
• Do not expose the meter to moisture or extreme temperatures outside its specified operating range.

Продукт закінченийview

The HanOaki DDS1108 is a single-phase electronic energy meter designed for accurate measurement of AC active energy in 220V/50Hz systems. It is suitable for various applications including industrial complexes, apartment buildings, commercial hotels, and rental properties.

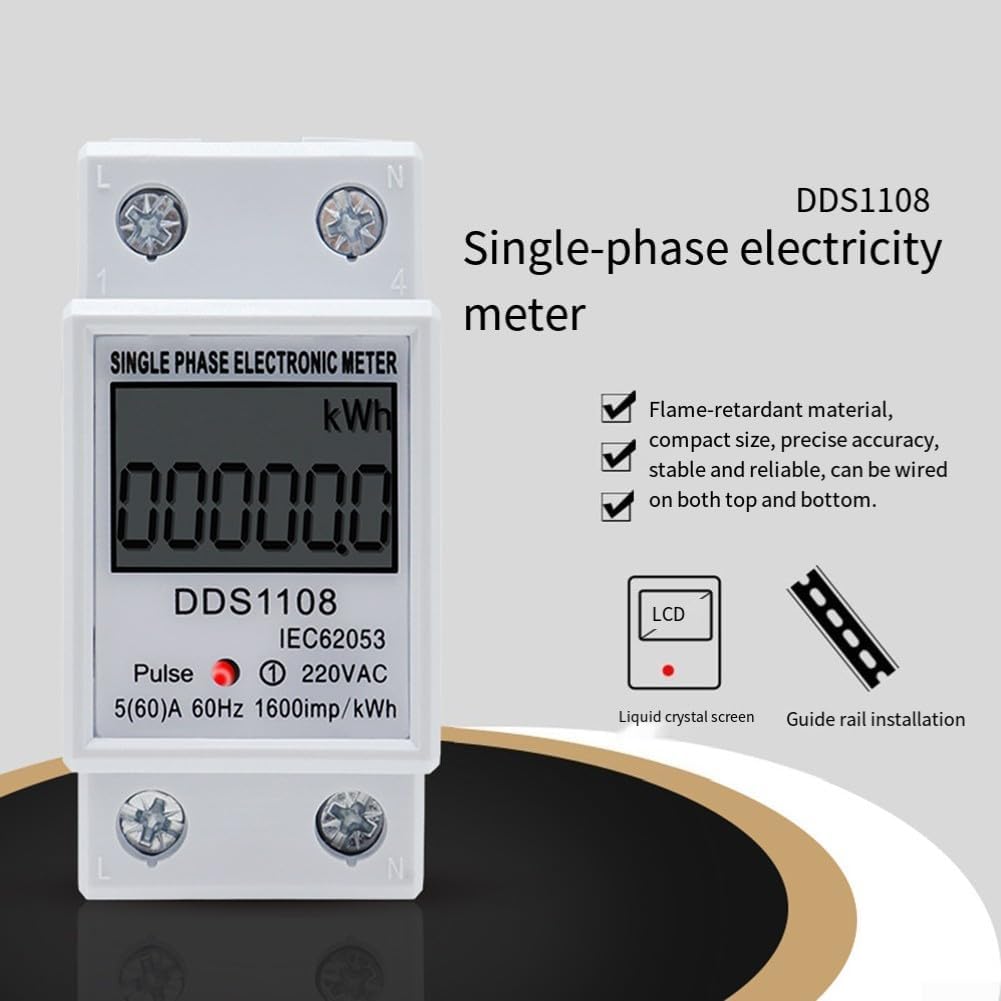

Зображення: спереду view of the HanOaki DDS1108 Single Phase Electronic Meter, showing the LCD display, model number, pulse indicator, and connection terminals.

Ключові характеристики

• Precise AC Energy Monitoring: Accurately measures active energy consumption in 220V/50Hz single-phase systems, ensuring correct billing for various properties.
• Data Security with Non-Volatile Memory: Integrated memory protects your cumulative energy data, preventing loss and maintaining accurate records even during a complete power failure.
• Clear LCD Display & Compact Build: Features a wide-temperature, easy-to-read 5+1 digit LCD screen. Its space-saving, compact, and lightweight design ensures reliable performance in various environments.
• Simplified DIN Rail Installation: Designed for quick and easy mounting on a standard 35mm DIN rail.
• Simple Voltage Signal Power Supply: Directly powered by the voltage signal itself, eliminating the need for any separate auxiliary power supply.
• Низьке енергоспоживання: Highly efficient, with an overall power consumption of less than 2W/5VA, helping to keep operational costs low.

Технічні характеристики

Встановлення та налаштування

1. Монтаж

The DDS1108 meter is designed for standard 35mm DIN rail installation. Ensure the DIN rail is securely mounted in a suitable enclosure.

1. Align the meter with the DIN rail.
2. Press the meter firmly onto the rail until it clicks into place, ensuring the blue clip mechanism engages.

Зображення: Збоку view of the DDS1108 meter, highlighting the blue clip mechanism for DIN rail mounting.

2. Електропроводка

Refer to the wiring diagram below for correct connections. Ensure power is disconnected at the main circuit breaker before performing any wiring.

• Connect the incoming live (L) wire to terminal 1.
• Connect the outgoing live (L) wire to terminal 2.
• Connect the incoming neutral (N) wire to terminal 3.
• Connect the outgoing neutral (N) wire to terminal 4.

The meter is designed to be wired on both top and bottom terminals for flexibility.

Зображення: Зверху вниз view of the DDS1108 meter, showing the 'L' (Live) and 'N' (Neutral) input and output terminals for wiring.

Інструкція з експлуатації

Увімкнення

Once correctly installed and wired, restore power to the circuit. The LCD display will illuminate and begin showing the accumulated energy consumption in kilowatt-hours (kWh).

Читання дисплея

The meter features a 5+1 digit LCD display, showing total energy consumption in kWh. The last digit (after the decimal point) represents tenths of a kWh.

Індикатор пульсу

The red 'Pulse' LED indicator will flash to signify active energy measurement. Each flash corresponds to a specific amount of energy consumed (e.g., 1600imp/kWh, as indicated on the meter face).

Технічне обслуговування

The HanOaki DDS1108 energy meter requires minimal maintenance to ensure long-term reliable operation.

• Keep the meter clean and free from dust. Use a soft, dry cloth for cleaning.
• Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the display or casing.
• The meter contains no user-serviceable parts. Do not attempt to open or repair the device, as this will void the warranty and may pose a safety risk.

Усунення несправностей

No Display / Meter Not Powering On

• Ensure the main power supply to the circuit is active and within the rated voltagе (змінний струм 220 В).
• Check all wiring connections for proper contact and polarity (Live to Live, Neutral to Neutral).
• Verify that the meter is correctly installed on the DIN rail and all terminals are securely fastened.

Неправильні показники

• Confirm that the wiring is correct according to the installation diagram. Incorrect wiring can lead to inaccurate measurements.
• Ensure the load connected is within the meter's specified working current range (5(80)A). Overloading can affect accuracy.

Pulse LED Not Flashing

• Verify that there is an active electrical load connected and consuming power. The LED only flashes when energy is being consumed.
• Check the power supply and all wiring connections to ensure the meter is receiving power and connected to the load circuit.

Гарантія та підтримка

For warranty information, technical support, or any product-related inquiries, please contact the manufacturer, HanOaki, or your point of purchase. Keep your purchase receipt or invoice as proof of purchase for warranty claims.

• Виробник: HanOaki
• For further assistance, refer to the official HanOaki webсайту або зв’яжіться зі своїм відділом обслуговування клієнтів.
