Electactic 3.2 Cu.ft Mini Upright Freezer Instruction Manual

1. Вступ

Thank you for choosing the Electactic 3.2 Cu.ft Mini Upright Freezer. This instruction manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read this manual thoroughly before use and retain it for future reference.

This compact upright freezer is designed for convenience and efficiency, featuring an adjustable thermostat, removable shelves, and a reversible door to suit various living spaces such as homes, dorms, kitchens, and offices. It utilizes advanced R600a refrigerant and low-energy compressors for quiet and energy-saving operation.

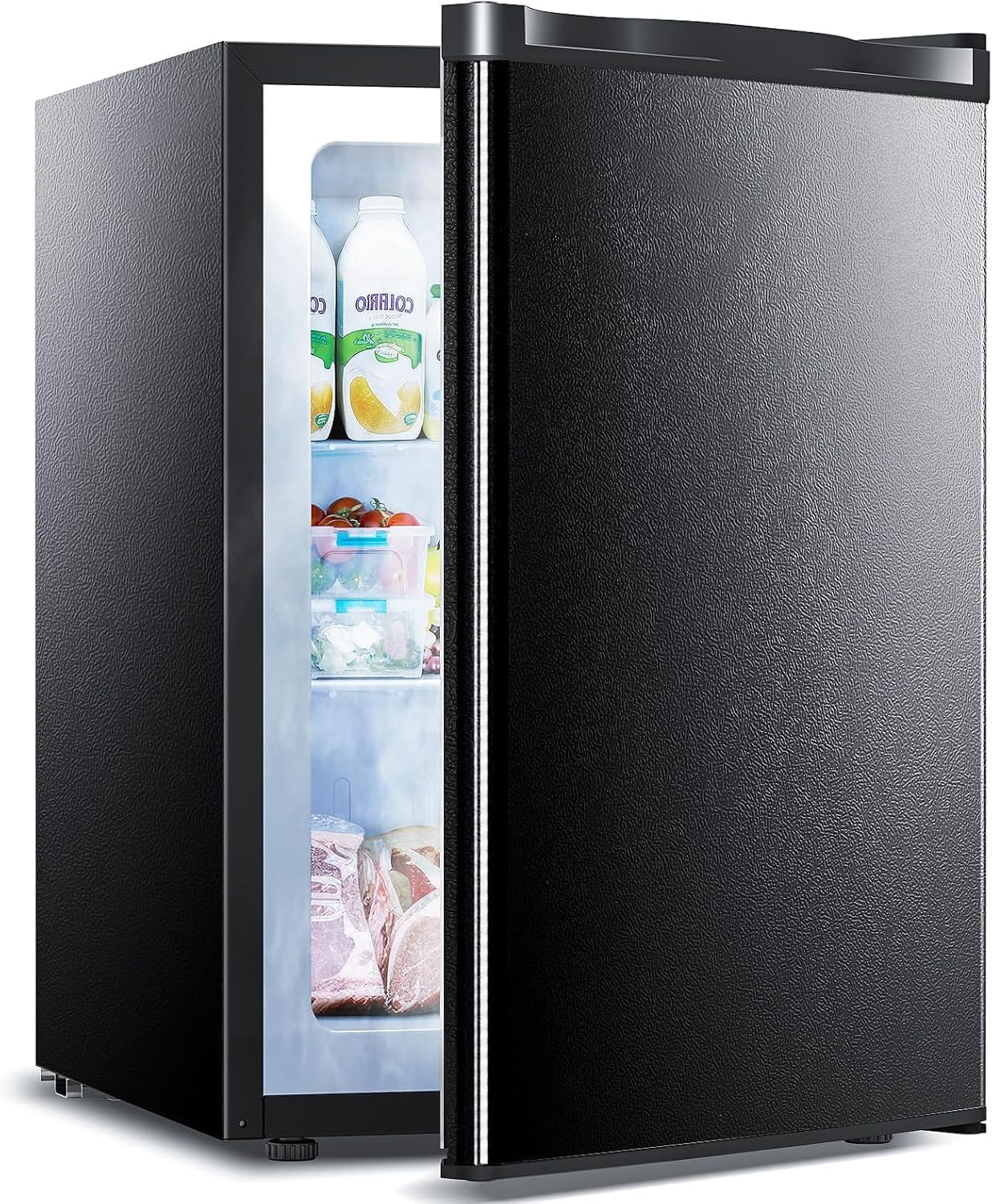

Image: Electactic 3.2 Cu.ft Mini Upright Freezer in Black.

2. Інформація про безпеку

Your safety and the safety of others are very important. Please read and follow all safety instructions provided in this manual to minimize the risk of fire, electric shock, or injury.

• Risk of Fire / Flammable Materials: This appliance contains R600a refrigerant, which is flammable. Handle with care and ensure proper ventilation. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Електрична безпека: Ensure the power outlet is properly grounded. Do not use extension cords. Disconnect the appliance from the power supply before cleaning or performing maintenance.
• Розміщення: This appliance is designed for freestanding installation only. Do not obstruct ventilation openings.
• Безпека дітей: Слідкуйте за дітьми, щоб вони не гралися з пристроєм.

3. Вміст упаковки

Переконайтеся, що всі предмети присутні під час розпакування:

• Electactic 3.2 Cu.ft Mini Upright Freezer
• Removable Shelves (Quantity: 2)
• Посібник користувача

4. Налаштування та встановлення

4.1 Розпакування

Carefully remove all packaging materials, including foam and adhesive tape. Ensure no parts are missing or damaged. It is recommended to keep the packaging materials for future transport of the appliance.

4.2 Розміщення

Place the freezer on a flat, stable surface away from direct sunlight and heat sources. Allow adequate space around the appliance for proper ventilation (at least 4 inches on the sides and back). The freezer has adjustable leveling legs to ensure stability on uneven floors.

Image: Product dimensions for the Electactic Mini Upright Freezer. Dimensions are approximately 20.28"D x 20.87"W x 31.5"H.

Image: The compact design of the Electactic Mini Upright Freezer allows for versatile placement in various rooms.

4.3 Зміна напрямку відчинення дверей

The freezer features a reversible door, allowing it to open from either the left or the right side to accommodate your space. Refer to the detailed instructions in the separate door reversal guide (if provided) or contact customer support for assistance.

Image: Close-up of the freezer's features, including the reversible door mechanism, groove handle, and quality PVC door seal.

4.4 Початкове ввімкнення

After placement, wait at least 2-4 hours before plugging the freezer into a power outlet. This allows the refrigerant to settle. Once plugged in, the freezer will begin cooling. Allow it to run for several hours empty before loading with food.

5. Інструкція з експлуатації

5.1 Контроль температури

The freezer is equipped with a 7-level adjustable thermostat located at the back of the unit. Turn the rotary knob to select your desired temperature setting. Setting "1" is the warmest, and "7" is the coldest. The temperature range can be controlled from -7.6°F to 6.8°F (-22°C to -14°C).

Image: Illustration of the 7-grade adjustable thermostat and optimal temperature zones for different food items.

5.2 Місткість сховища

The 3.2 cubic feet capacity provides ample space for various frozen goods. The removable shelves allow for flexible storage configurations to accommodate larger items.

Зображення: Інтер'єр view of the freezer filled with various frozen foods, showcasinйого можливості зберігання.

6. Технічне обслуговування та очищення

6.1 Розморожування

This freezer requires manual defrosting. When frost accumulates to a thickness of 0.2 inches (5 mm) or more, it should be defrosted. To defrost, unplug the appliance, remove all food items, and allow the frost to melt naturally. Use a soft cloth to wipe away melted water. Do not use sharp objects to remove ice.

6.2 Очищення

Regularly clean the interior and exterior of the freezer with a mild detergent and warm water. Ensure the appliance is unplugged before cleaning. The removable shelves can be washed separately. The quality PVC door seal should also be cleaned to maintain its effectiveness.

Image: The freezer's interior, showing removable shelves for easy cleaning.

7. Вирішення проблем

If you experience issues with your freezer, please consult the following common troubleshooting tips before contacting customer service.

Якщо проблема не зникає після перевірки цих пунктів, зверніться до служби підтримки клієнтів.

8. Технічні характеристики

Image: Technical specifications table for the Electactic Mini Upright Freezer.

9. Офіційне відео продукту

10. Гарантія та підтримка

For warranty information or technical support, please refer to the warranty card included with your product or contact Electactic customer service. Keep your purchase receipt as proof of purchase for any warranty claims.

Обслуговування клієнтів: Please visit the Electactic Store on Amazon or refer to the contact details provided in your product packaging.
