Generic BV-500 360° Ceiling-Mount PIR Motion Detector User Manual

1. Вступ

The BV-500 Bravo 360° is a ceiling-mounted passive infrared motion detector designed to deliver comprehensive and reliable motion sensing across an entire room. Utilizing an advanced quad-element PIR sensor paired with a specialized 360° Fresnel lens, this detector ensures consistent and uniform detection regardless of motion direction within a maximum sensing distance of 40 feet.

Equipped with patented Multi-Level Signal Processing (MLSP), the BV-500 accurately distinguishes human infrared energy from environmental noise across a wide temperature range, significantly reducing false alarms caused by temperature fluctuations. Integrated temperature compensation further enhances detection sensitivity at critical temperatures, maintaining optimal performance in diverse environments. The device allows sensitivity adjustment to configure detection parameters for either normal or hostile conditions, providing flexible installation options to suit various settings.

2. Інформація про безпеку

• Електрична безпека: Installation should be performed by qualified personnel in accordance with all local electrical codes. Ensure power is disconnected before installation or servicing.
• Тільки для використання в приміщенні: This device is designed for indoor applications only. Do not expose to moisture, extreme temperatures, or direct sunlight.
• Монтаж: Mount the detector securely to a stable ceiling surface to prevent accidental dislodgement.
• Перешкоди: Avoid installing near heat sources, air conditioning vents, or areas with strong electromagnetic interference, which may affect performance.

3. Вміст упаковки

Будь ласка, перевірте, чи містить ваша упаковка такі предмети:

• 1 x BV-500 Motion Detector
• Кріпильні елементи (шурупи, анкера)
• Інструкція з експлуатації

4. Продукт закінчивсяview

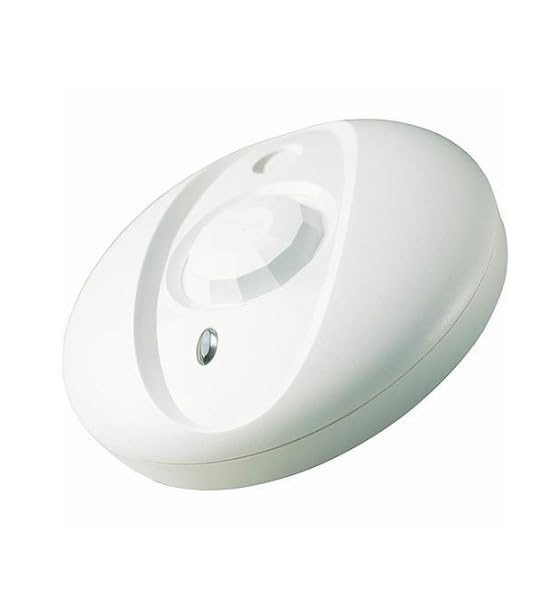

Image showing the compact, white, circular design of the BV-500 motion detector, designed for unobtrusive ceiling installation. The device features a low-profile design, integrating seamlessly into various indoor environments.

The BV-500 features a sleek, low-profile white housing designed for discreet ceiling integration. The main body contains the quad-element PIR sensor and the specialized Fresnel lens, which provides the 360° detection pattern. Connection terminals for power and alarm output are located on the rear or inside the housing, accessible during installation.

5. Встановлення та налаштування

5.1 Місце монтажу

• Select a central ceiling location that provides an unobstructed 360° view території, що підлягає охороні.
• Avoid mounting directly above or facing heat sources (e.g., radiators, heating vents) or areas with rapid temperature changes.
• Ensure the mounting surface is stable and can support the detector.

5.2 Електропроводка

1. Відключити живлення: Ensure all power to the alarm system and the installation area is turned off before proceeding.
2. Підключення живлення: Connect the 14.5V DC power supply to the designated power terminals on the detector. Observe correct polarity.
3. Вихід сигналізації: Connect the Form 'A' (normally open) alarm contact terminals to your alarm control panel's zone input. Refer to your alarm panel's manual for specific wiring instructions.

5.3 Регулювання чутливості

The BV-500 allows for sensitivity adjustment to optimize detection for specific environments. Typically, a jumper or switch setting is provided:

• Normal Environment: Use this setting for typical indoor conditions with minimal environmental disturbances.
• Hostile Environment: Use this setting in areas prone to air currents, temperature fluctuations, or other factors that might cause false alarms. This setting may slightly reduce detection range or sensitivity to improve stability.

Refer to the internal markings or a detailed diagram (if provided with the physical product) for the exact location and configuration of the sensitivity adjustment.

6. Операція

Once properly installed and powered, the BV-500 motion detector continuously monitors its 360° coverage area for infrared energy changes indicative of human movement. The advanced quad-element PIR sensor detects these changes, and the patented Multi-Level Signal Processing (MLSP) analyzes the signals to differentiate between actual human presence and environmental noise.

Основні експлуатаційні характеристики:

• Покриття 360°: The specialized Fresnel lens ensures uniform detection in all directions within a 40-foot radius.
• Температурна компенсація: The detector automatically adjusts its sensitivity to maintain consistent performance across a wide range of operating temperatures, preventing reduced detection in critical temperature conditions.
• Digital Signal Analysis: This technology ensures a consistent detection pattern and signal clarity throughout the entire sensing area, minimizing blind spots.
• Активація сигналізації: Upon detecting valid motion, the Form 'A' (normally open) alarm contact will close, signaling an alarm condition to the connected control panel.

7. Технічне обслуговування

The BV-500 motion detector requires minimal maintenance to ensure optimal performance.

• Прибирання: Periodically, gently wipe the detector's lens and housing with a soft, dry, lint-free cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the lens or housing.
• Перевірка перешкод: Ensure that there are no new obstructions (e.g., furniture, decorations, light fixtures) within the detector's field of view that could block its 360° coverage.
• Перевірка функціональності: It is recommended to periodically test the detector's functionality in conjunction with your alarm system to ensure it is operating correctly.

8. Вирішення проблем

If you experience issues with your BV-500 motion detector, refer to the following troubleshooting guide:

9. Технічні характеристики

10. Гарантія та підтримка

For warranty information, technical assistance, or to report any issues with your BV-500 motion detector, please contact your authorized dealer or the manufacturer, DSC. It is recommended to retain your purchase receipt as proof of purchase for warranty claims.

Будь ласка, відвідайте офіційний сайт виробника website or consult your product packaging for the most current contact information and support resources.
