User Manual for 2-in-1 Dog Training Collar

1. Продукт закінчивсяview

This 2-in-1 Dog Shock Collar and Bark Collar is designed to assist dog owners in training their pets effectively and humanely. It combines a remote-controlled training collar with an automatic anti-barking function, offering multiple training modes to suit various dog temperaments and training needs.

Key features include a long remote range, durable waterproof design, and adjustable stimulation levels for precise control. This manual provides detailed instructions on setting up, operating, maintaining, and troubleshooting your device.

Figure 1: The 2-in-1 Dog Shock Collar and its remote control, with a Golden Retriever wearing the collar.

2. Важлива інформація з безпеки

Please read all safety and usage instructions carefully before using this product.

• Цей пристрій призначений для використання лише з собаками.
• Do not use this product on aggressive dogs or dogs with health issues. Consult a veterinarian if unsure.
• Ensure the collar fits properly. It should be snug enough to allow contact with the dog's skin, but not so tight as to cause discomfort or skin irritation.
• Do not leave the collar on your dog for more than 12 hours per day.
• Regularly check your dog's neck for signs of irritation or sores. If irritation occurs, discontinue use until the skin heals.
• Use the static stimulation feature responsibly and only when necessary, starting with the lowest effective level.
• Зберігати в недоступному для дітей місці.

As per product directions: Use the shock collar to train your dog by deterrent methods including electric shocks, vibrations, and warnings. Ensure proper fit and monitor your dog during use for safety.

3. Компоненти та елементи керування продуктом

Familiarize yourself with the main components of your training system:

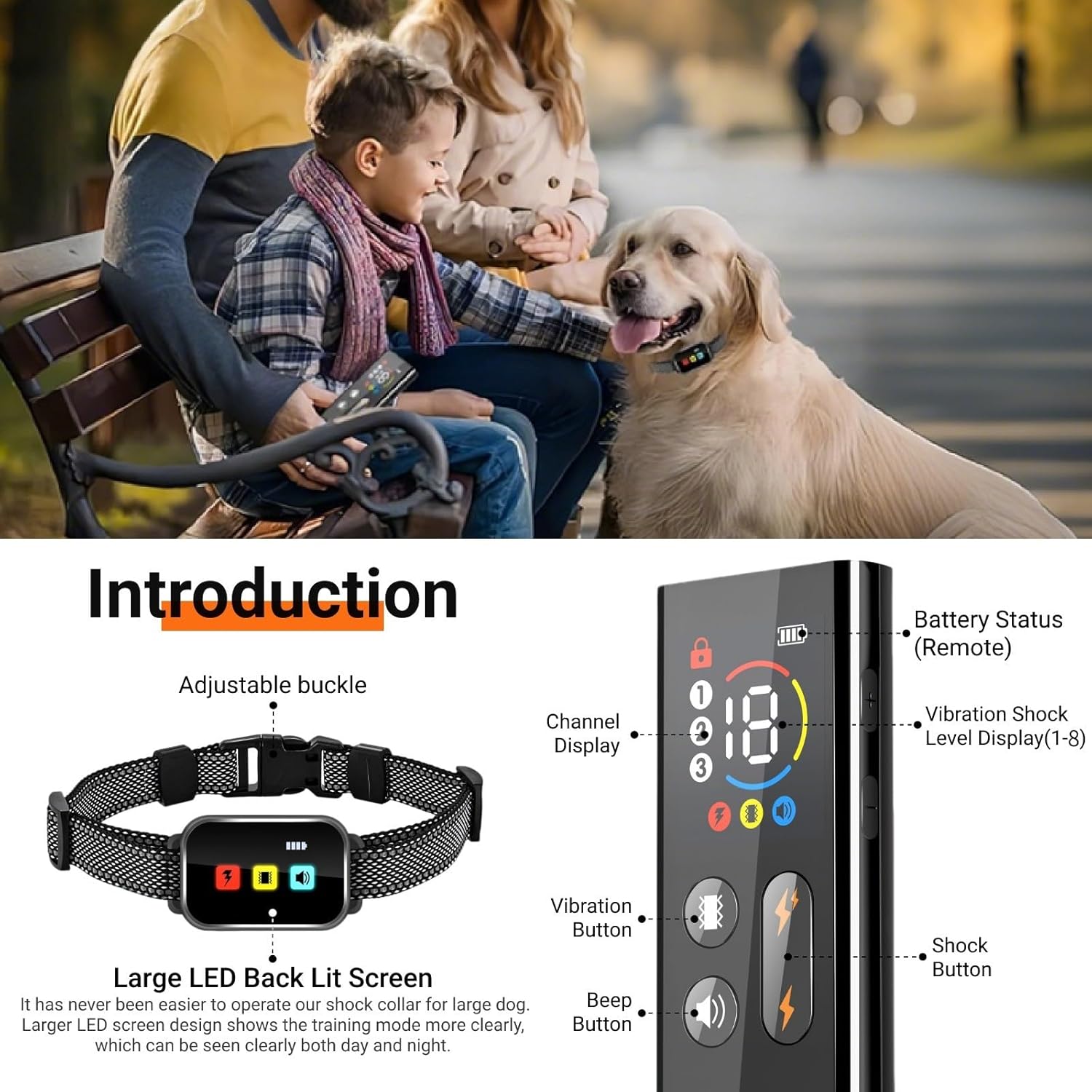

Малюнок 2: Детально view of the collar and remote control, highlighting key features and buttons.

• Training Collar Receiver: Worn by the dog, features an adjustable buckle and a large LED lit screen for clear display of training modes and battery status.
• Пульт дистанційного керування: Handheld device for controlling the collar.
• Battery Status (Remote): Indicates the remote's power level.
• Відображення каналу: Shows the selected training channel (for multiple collars).
• Vibration Shock Level Display (1-18): Shows the current intensity level for vibration or static stimulation.
• Кнопка вібрації: Activates the vibration mode.
• Кнопка звукового сигналу: Activates the audible warning tone.
• Кнопка розряду: Activates the static stimulation mode.

4. Налаштування та зарядка

4.1 Заряджання пристроїв

Both the training collar receiver and the remote control are equipped with rechargeable batteries. Use the provided USB Type-C charging cable.

Figure 3: Illustration of the Type-C charging process for both the collar and remote.

• Connect the Type-C cable to the charging port on both the collar receiver and the remote.
• Plug the other end into a USB power source (e.g., power bank, power adapter, laptop/PC).
• Повна зарядка займає приблизно 2 години.
• Once fully charged, the remote can last for up to 120 days on standby, and the receiver for up to 45 days on standby.

4.2 Встановлення коміра

Proper fit is crucial for the effectiveness and safety of the collar.

• Place the collar around your dog's neck, ensuring the contact points touch the skin.
• Adjust the strap using the adjustable buckle so that it is snug but not overly tight. You should be able to fit one or two fingers comfortably between the collar and your dog's neck.
• The collar is suitable for dogs with a neck size between 10-70 cm.
• For the IP67 waterproof feature to function correctly, ensure the screws on the receiver are tightened to prevent water from entering.

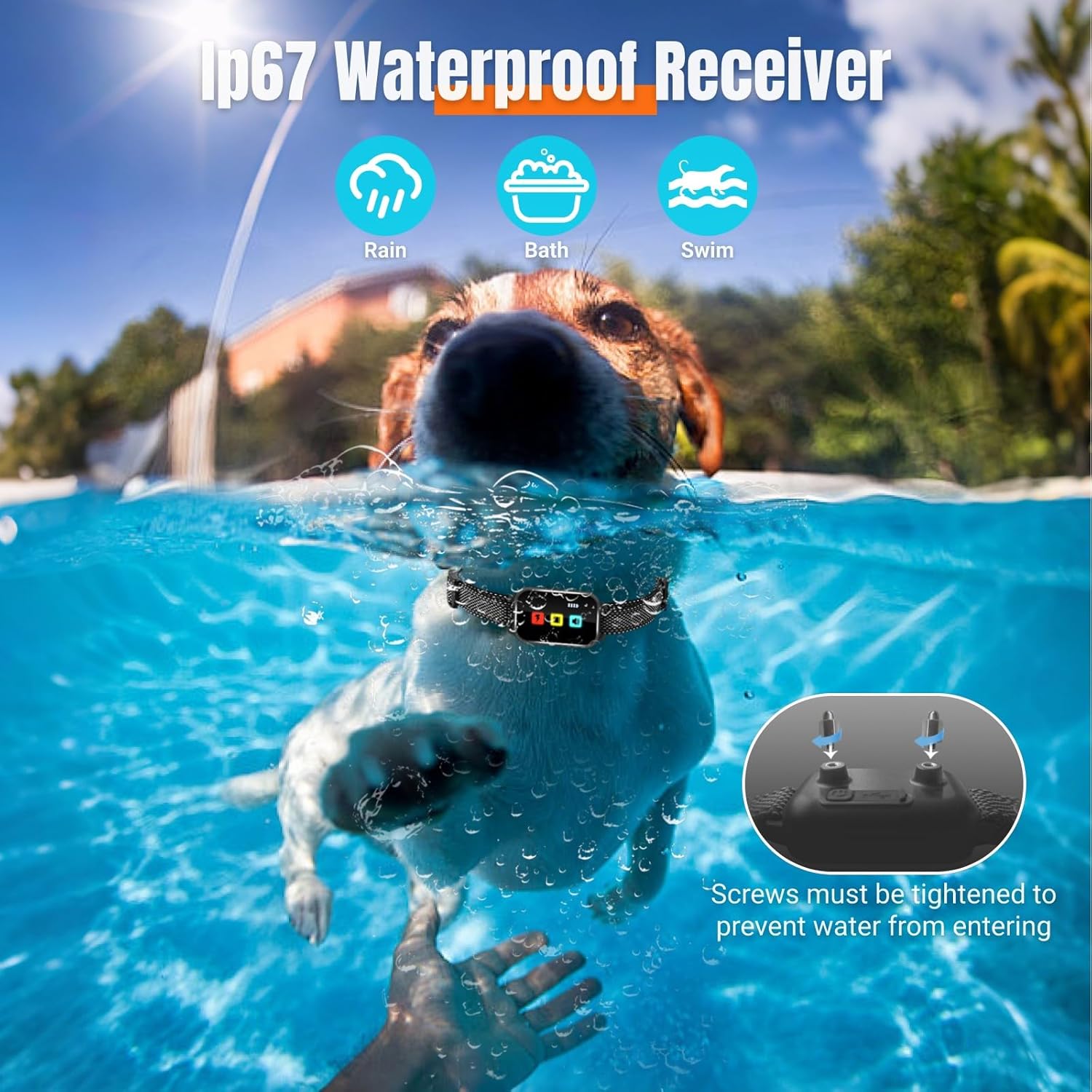

Figure 4: The IP67 waterproof receiver in use, demonstrating its resistance to water. Ensure screws are tightened for water protection.

5. Operating the Training Collar

The collar offers four training modes: sound warning, vibration, static stimulation, and an automatic anti-barking mode.

5.1 режими навчання

• Sound Warning (Beep): Press the Beep Button on the remote to emit an audible tone. This is often used as an initial warning or a positive reinforcement signal.
• Режим вібрації: Press the Vibration Button. You can adjust the vibration intensity from levels 1-8 using the remote. This mode provides a gentle, non-harmful deterrent.
• Режим статичної стимуляції: Press the Shock Button. The static stimulation level can be adjusted from 1-18. Start with the lowest level and increase only if necessary, observing your dog's reaction. This mode should be used cautiously and as a last resort.
• Automatic Anti-Barking Mode: The collar automatically detects and corrects excessive barking using progressive sound warnings, vibrations, or static stimulation. The sensitivity of this mode is adjustable.

The remote control allows for precise adjustment of vibration (1-8 levels) and static stimulation (1-18 levels) to tailor the training to your dog's temperament and specific needs.

Figure 5: The training collar is suitable for addressing various behaviors such as excessive barking, biting, chewing, and improving obedience commands like 'sit' and 'motion'.

Figure 6: The remote control offers an effective range of up to 800 meters (2600 feet), allowing for training over long distances.

6. Технічне обслуговування

• Прибирання: Протріть нашийник і пульт рекламоюamp тканина. Не використовуйте агресивні хімікати або абразивні засоби для чищення.
• Зберігання: Зберігайте пристрій у прохолодному сухому місці, коли він не використовується.
• Догляд за акумулятором: To prolong battery life, avoid fully discharging the batteries frequently. Charge them regularly.
• Контактні особи: Periodically check the contact points on the receiver for dirt or debris and clean them if necessary to ensure proper skin contact.

7. Вирішення проблем

8. Технічні характеристики продукту

Figure 7: Detailed product dimensions and suitability for various dog sizes.

9. Гарантія та підтримка

Specific warranty information is not provided in the product details. For warranty claims or technical support, please contact the manufacturer or your point of purchase.

Manufacturer: Hye Soonil

For further assistance, please refer to the contact information provided with your product packaging or visit the official website of the brand "Generic" if available.
