Electactic 8000 BTU Window Air Conditioner User Manual

вступ

The Electactic 8000 BTU Window Air Conditioner is a versatile and energy-efficient unit designed to cool rooms up to 350 sq.ft. It delivers powerful and quick cooling with adjustable temperature control from 61°F to 88°F. Perfect for medium bedrooms, living rooms, apartments, and offices, it is designed to save energy with an estimated yearly electricity cost of just $72.

This unit combines an air conditioner, fan, and dehumidifier in one, offering 6 versatile modes: Cool, Dry, Fan, Auto, Sleep, and Eco. It also features a 24-hour timer for customized comfort year-round. With 4 adjustable air directions and 3 fan speed settings, you can customize airflow to your preference for optimal comfort.

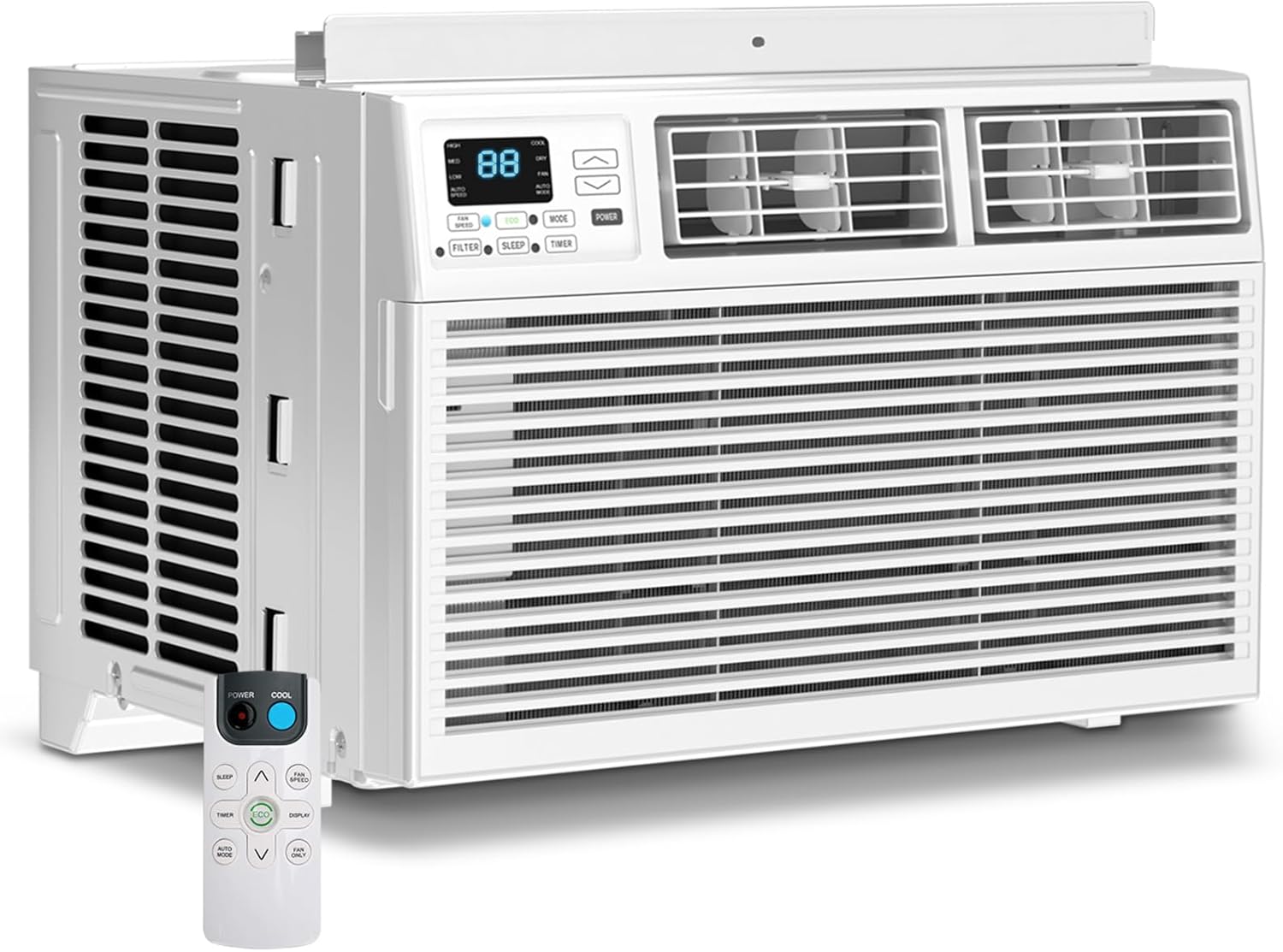

Figure 1: Electactic 8000 BTU Window Air Conditioner with remote control.

Налаштування та встановлення

The Electactic 8000 BTU Window Air Conditioner comes with a complete installation kit, making setup hassle-free. It is designed to fit both single and double-hung windows with widths between 23-36 inches and a minimum height of 14.5 inches.

Кроки встановлення:

1. Розпакуйте та визначте компоненти: Carefully remove the air conditioner unit and all accessories from the packaging. Identify the top rail, accordion panels, remote control, and various screws/foam gaskets.
2. Прикріпіть верхню рейку: Locate the top rail (with sponge on the bottom) and the four smallest screws (3/8-inch). Align the taller side of the top rail with the front of the AC unit's top panel. Secure it using the screws and a screwdriver.
3. Attach Accordion Panels: Identify the left and right accordion panels. Extend each panel and slide its top and bottom brackets into the corresponding slots on the side of the AC unit. Ensure they are securely linked.
4. Розмістіть пристрій у вікні: Carefully lift the unit and place it into your window opening. Ensure the bottom rail of the AC unit rests securely on the windowsill. Adjust the accordion panels to fill the window opening on both sides.
5. Захистіть пристрій: Lower the window sash down onto the top rail of the AC unit to hold it in place. Use the provided sash lock and lock frame to further secure the window and the unit, preventing accidental opening or removal.
6. Apply Foam Insulation: If there are any gaps between the window sash and the unit, or around the accordion panels, use the provided foam gaskets to seal them. This improves insulation and energy efficiency.
7. Плагін: Once securely installed, plug the unit into a standard 115-volt electrical outlet.

Figure 2: Complete installation kit components.

Figure 3: Window AC unit dimensions and fit for window openings.

Інструкція з експлуатації

The Electactic 8000 BTU Window Air Conditioner features an intuitive control panel and a convenient remote control for easy operation. The unit offers various modes and settings to customize your comfort.

Панель керування та пульт дистанційного керування:

• Кнопка живлення: Натисніть, щоб увімкнути або вимкнути пристрій.
• Кнопка режиму: Cycle through the 6 available modes:
  • круто: Provides powerful cooling.
  • Сухий: Reduces excess moisture (dehumidifier function).
  • Вентилятор: Циркулює повітря без охолодження.
  • Авто: Automatically selects cooling or fan mode based on room temperature.
  • Сон: Регулює температуру та швидкість вентилятора для комфортного сну.
  • Еко: Energy-saving mode that cycles the fan and compressor to maintain temperature.
• Контроль температури: Use the Up/Down arrows to set your desired temperature between 61°F and 88°F.
• Швидкість вентилятора: Adjust fan speed (Low, Medium, High, Auto Speed) to control airflow intensity.
• Напрямок повітря: Manually adjust the 4-way directional louvers to direct airflow where needed.
• Таймер: Встановіть 24-годинний таймер для автоматичного ввімкнення/вимкнення.

Figure 4: Control panel and remote control for easy adjustments.

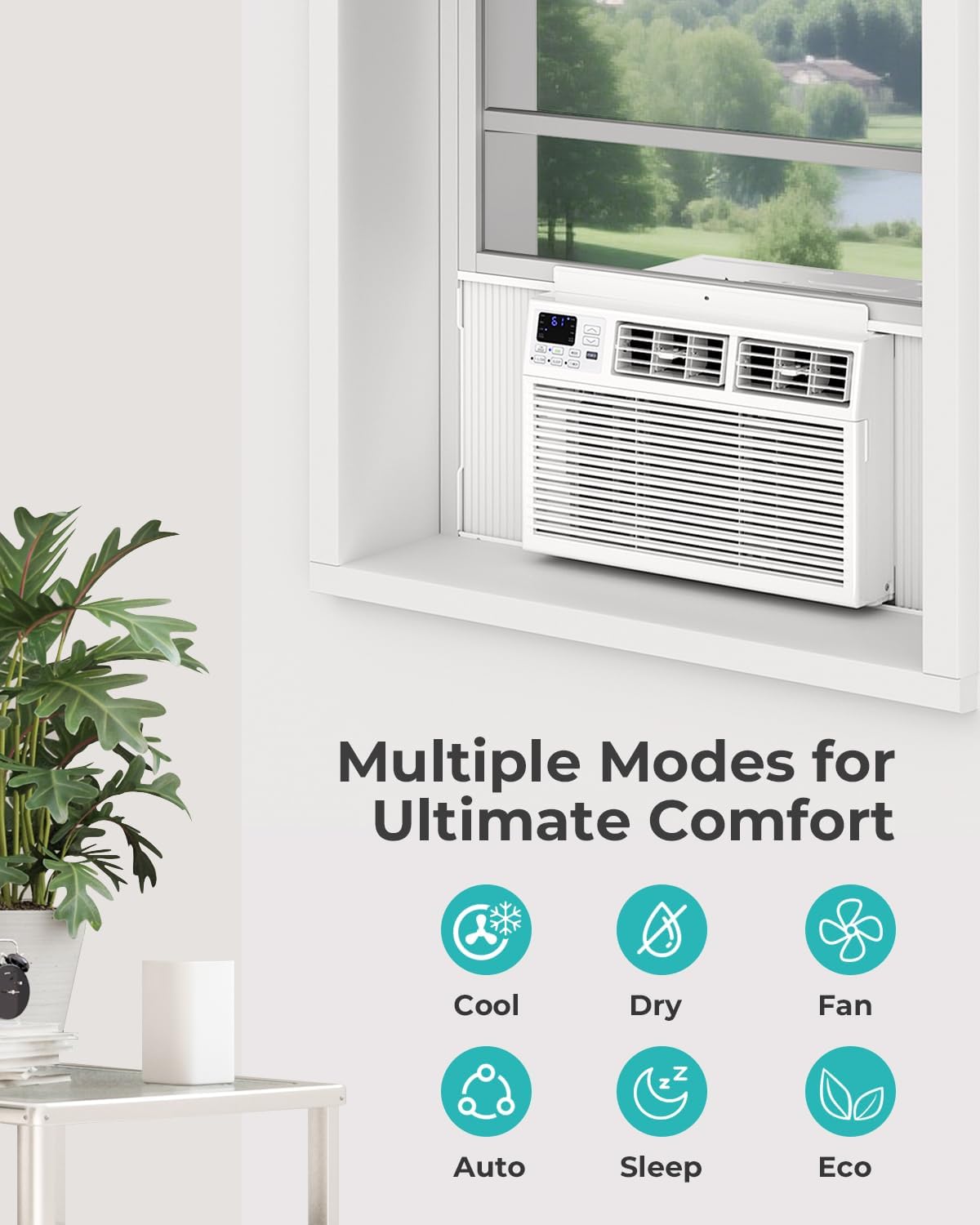

Figure 5: Multiple modes for ultimate comfort.

Технічне обслуговування

Регулярне технічне обслуговування забезпечує оптимальну роботу та довговічність вашого кондиціонера.

Очищення фільтра:

The unit features a washable filter that traps dust and airborne particles. Clean the filter regularly (e.g., every two weeks or when the 'Filter' indicator light illuminates) to maintain air quality and cooling efficiency. To clean, simply slide out the filter, wash it with warm, soapy water, rinse thoroughly, and let it air dry completely before reinserting.

Self-Draining System:

This unit is equipped with a self-draining system that automatically removes condensation, eliminating the need for manual emptying of a water tray.

Figure 6: Accessing the washable filter for cleaning.

Усунення несправностей

If you encounter any issues with your air conditioner, please refer to the full user manual for detailed troubleshooting steps. Common issues often relate to power supply, filter cleanliness, or proper window sealing.

Технічні характеристики

Гарантія та підтримка

This Electactic Window Air Conditioner comes with a Гарантія 1 рік з дати покупки.

For customer support, technical assistance, or warranty claims, please refer to the contact information provided in your product packaging or visit the official Electactic website. You may also find helpful resources and FAQs on the Electactic Store on Amazon.
