1. Продукт закінчивсяview
This manual provides instructions for the assembly, operation, and maintenance of your Generic Bamboo Narrow Kitchen Pantry Cabinet. This cabinet is designed to maximize storage in small spaces, such as kitchens and living rooms, offering a practical solution for organizing spices and other items.
The cabinet features an independent single door design for each compartment, allowing easy access to stored items. Its multi-layer partition layout helps in organizing items based on size and frequency of use. Constructed from high-quality materials, it offers strong load-bearing capacity and a fully sealed, dustproof design to protect contents.
2. Вміст упаковки
Будь ласка, переконайтеся, що всі компоненти присутні перед початком складання. Якщо якісь деталі відсутні або пошкоджені, зверніться до служби підтримки клієнтів.
- Left Side Bracket (x1)
- Right Side Bracket (x1)
- Задня панель (x4)
- Large Shelf (x5)
- Small Shelf (x4)
- Прокладка дверей
- Маленькі гвинти
- Великі гвинти
- Інструмент встановлення
- Дверний засув
- двері Пробка
- Дверна панель

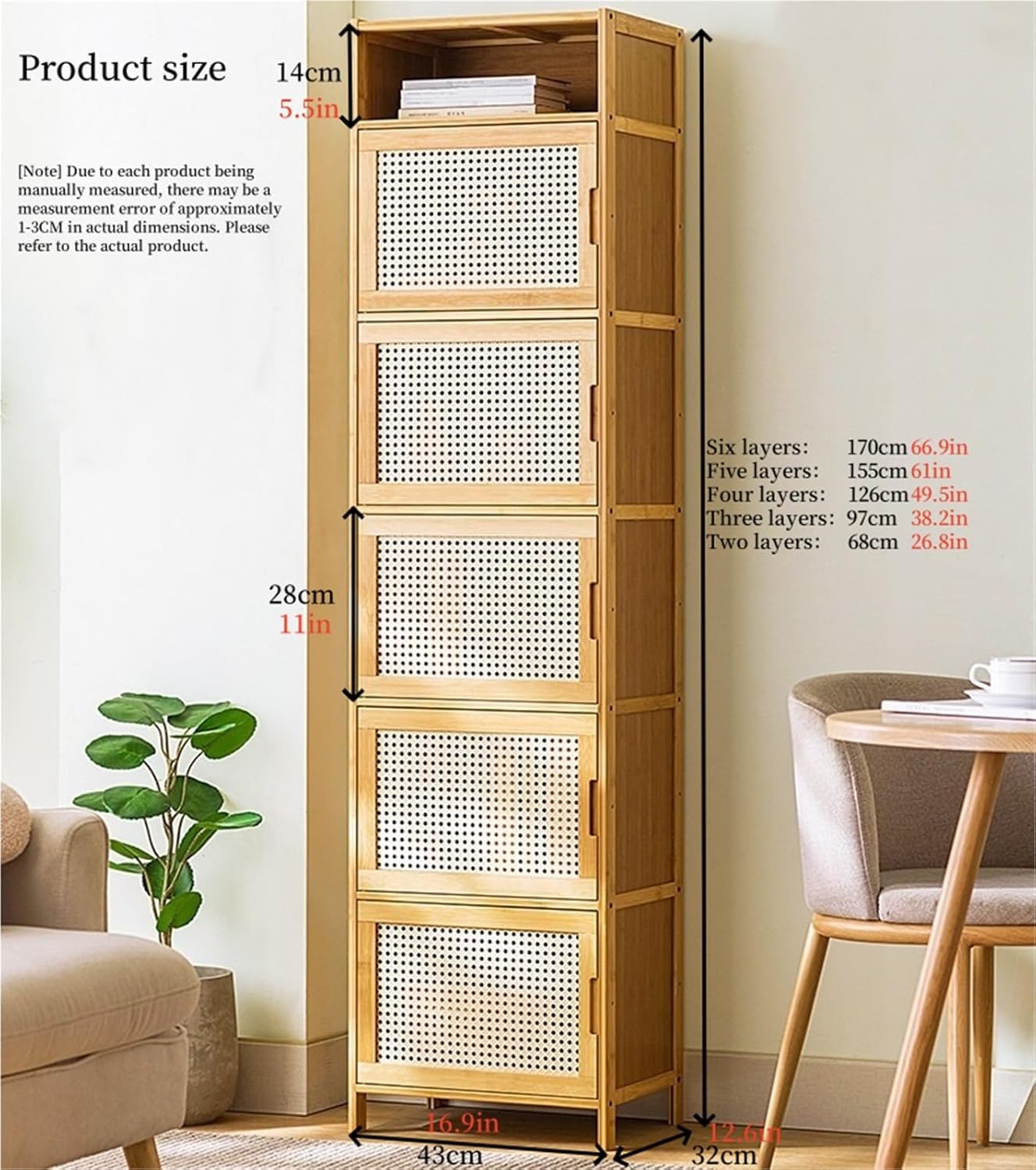

Image 1: Product size diagram illustrating the dimensions of the cabinet and its various layers.
3. Інструкція зі складання
Follow these steps carefully to assemble your pantry cabinet. An installation video is also provided for visual guidance.
3.1. Prepare Side Brackets and Latches
- Take out the right side bracket.
- Install the door latches onto the right side bracket using the small screws. Ensure they are securely fastened.
Video 1: Installation video demonstrating the assembly process of the storage cabinet.
3.2. Встановіть полиці
- Take out a large layer board (shelf).
- Install the large layer board into the designated slots on the side brackets using the large screws. Repeat for all large shelves.
- Take out a small layer board (shelf).
- Install the small layer board into the designated slots on the side brackets using the large screws. Repeat for all small shelves.
3.3. Attach Door Panels
- Take out a door panel and a door pad.
- Install the door pad onto the door panel using small screws.
- Take the door bolt and insert it into both ends of the door panel.
- Carefully insert the assembled door panel into the shelf/laminated board. Ensure the door bolt aligns with the holes on the side brackets for smooth operation.
3.4. Insert Backboards
- Take out the backboard.
- Insert the backboard along the groove on the rear of the cabinet structure. Ensure it fits snugly to provide stability and dust protection.
3.5. Фінальна збірка
- Take out the left side bracket.
- Install the left side bracket onto the assembled structure using large screws, ensuring all connections are secure.
- Once assembled, carefully stand the cabinet upright.
Image 2: The assembled cabinet positioned in a kitchen, demonstrating its compact footprint and independent door opening feature.
4. Інструкція з експлуатації
Your Bamboo Narrow Kitchen Pantry Cabinet is designed for convenient storage and access.
- Independent Door Opening: Each compartment features an independent door. Gently pull the groove handle to open a specific compartment without disturbing others.
- Оптимізація зберігання: Utilize the multi-layer partition layout to organize items efficiently. Place frequently used small items on upper shelves, books or documents in the middle, and heavier objects on lower shelves for stability.
- Використання простору: The narrow design is ideal for small corners. Its 32cm deepening width allows for significant storage capacity in a compact footprint.

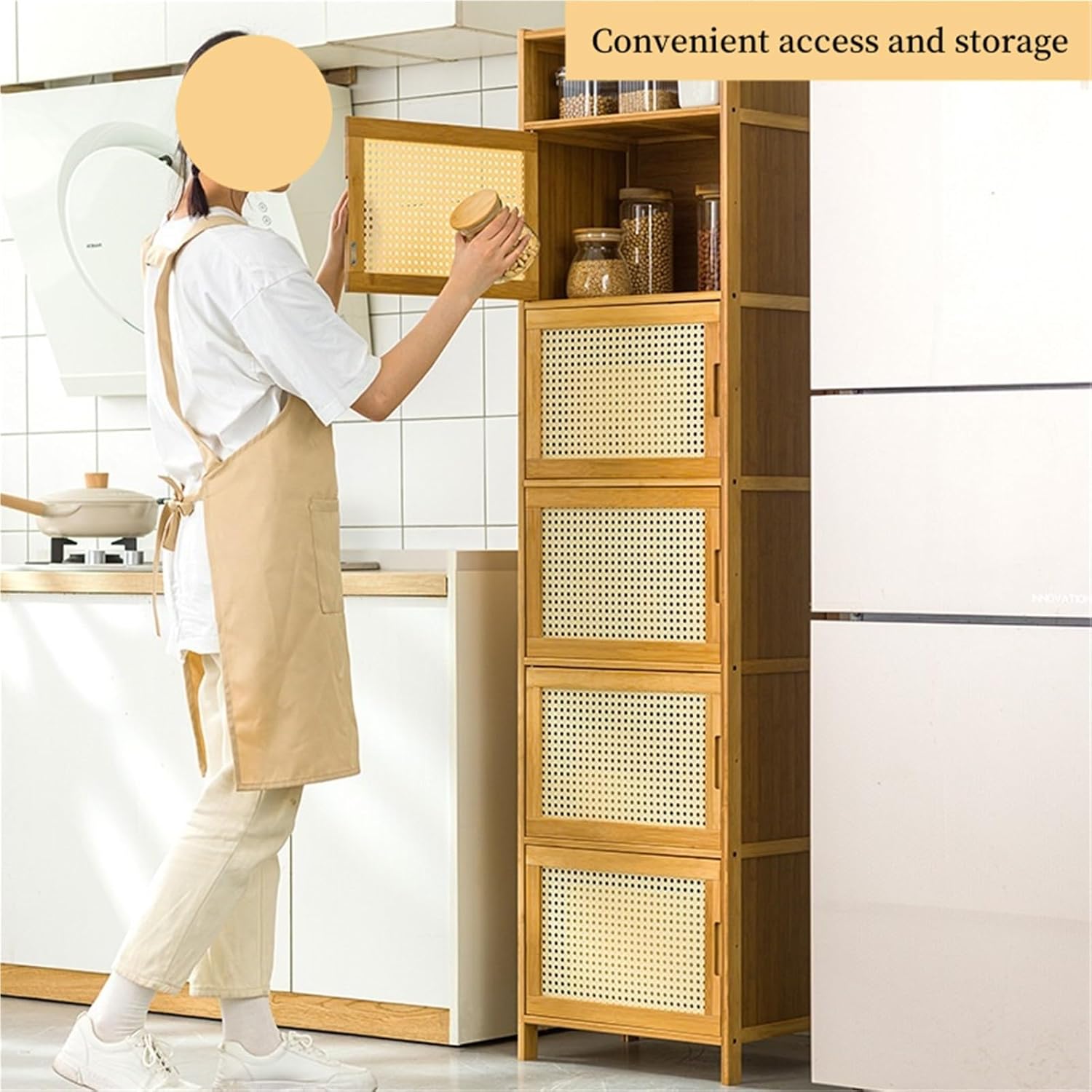

Image 3: A person demonstrating convenient access to items stored within the cabinet.
Зображення 4: Крупний план view highlighting the 32cm deepened width of the cabinet, designed to accommodate more items.
5. Технічне обслуговування
To ensure the longevity and appearance of your bamboo cabinet, follow these maintenance guidelines:
- Прибирання: Протріть поверхні шафи м’якою тканиноюamp cloth. Avoid using harsh chemicals or abrasive cleaners, which can damage the bamboo finish.
- Захист від пилу: The fully sealed design helps block dust. Periodically wipe down the exterior and interior to maintain cleanliness.
- вологість: While bamboo is durable, avoid prolonged exposure to excessive moisture. Wipe up spills immediately.
- Door Care: The powerful door stoppers ensure tight closure. If doors become stiff, a small amount of silicone spray on the hinges can help.
Зображення 5: Ззаду view of the cabinet, illustrating the seamless composite back and side panels designed for dust protection.
6. Вирішення проблем
| проблема | Можлива причина | Рішення |
|---|---|---|
| Cabinet feels wobbly after assembly. | Screws not fully tightened; uneven floor surface. | Ensure all screws are tightened. Place the cabinet on a level surface or use shims if necessary. |
| Двері не зачиняються належним чином. | Door bolts not correctly inserted; door latches misaligned. | Check that door bolts are fully inserted into the panel and align with the side bracket holes. Verify door latches are securely installed. |
| Difficulty inserting back panel. | Groove obstruction; panel misalignment. | Ensure the groove is clear of debris. Gently guide the back panel into the groove, applying even pressure. |
7. Технічні характеристики
- Бренд: загальний
- Номер моделі: MUNCCBDDO-43CM*32CM*155CM
- колір: Природні
- Розміри продукту (Д x Ш x В): 43 см x 32 см x 155 см (16.9 дюйма Д x 12.6 дюйма Ш x 61 дюйма В)
- матеріал: Bamboo + Composite board + Plastic
- Тип монтажу: Підлогове кріплення
- Кількість штук: 1 (зібраний блок)
- Необхідна збірка: так
- Вага товару: 5500 грамів
Image 6: Close-up of the cabinet door, highlighting the imitation rattan plastic material, which is both beautiful and practical.
8. Гарантія та підтримка
For warranty information or customer support, please refer to the seller's policies on the purchase platform or contact "Hui Hui Nan A Shop" directly. Keep your purchase receipt for any warranty claims.
