Allimity AKB73975615 Replacement Remote Control User Manual

вступ

This manual provides instructions for the Allimity AKB73975615 replacement infrared remote control, designed for use with various LG AC Air Conditioner models. This remote functions as a direct replacement and does not require programming. Please read this manual carefully before use to ensure proper operation.

Налаштування

1. Встановлення батареї

The remote control requires two AAA alkaline batteries (not included). Follow these steps to install them:

1. Знайдіть кришку батарейного відсіку на задній панелі пульта дистанційного керування.
2. Посуньте кришку вниз, щоб відкрити відсік.
3. Insert two new AAA alkaline batteries, ensuring the positive (+) and negative (-) terminals match the diagrams inside the compartment.
4. Засуньте кришку батарейного відсіку назад на місце, доки вона надійно не клацне.

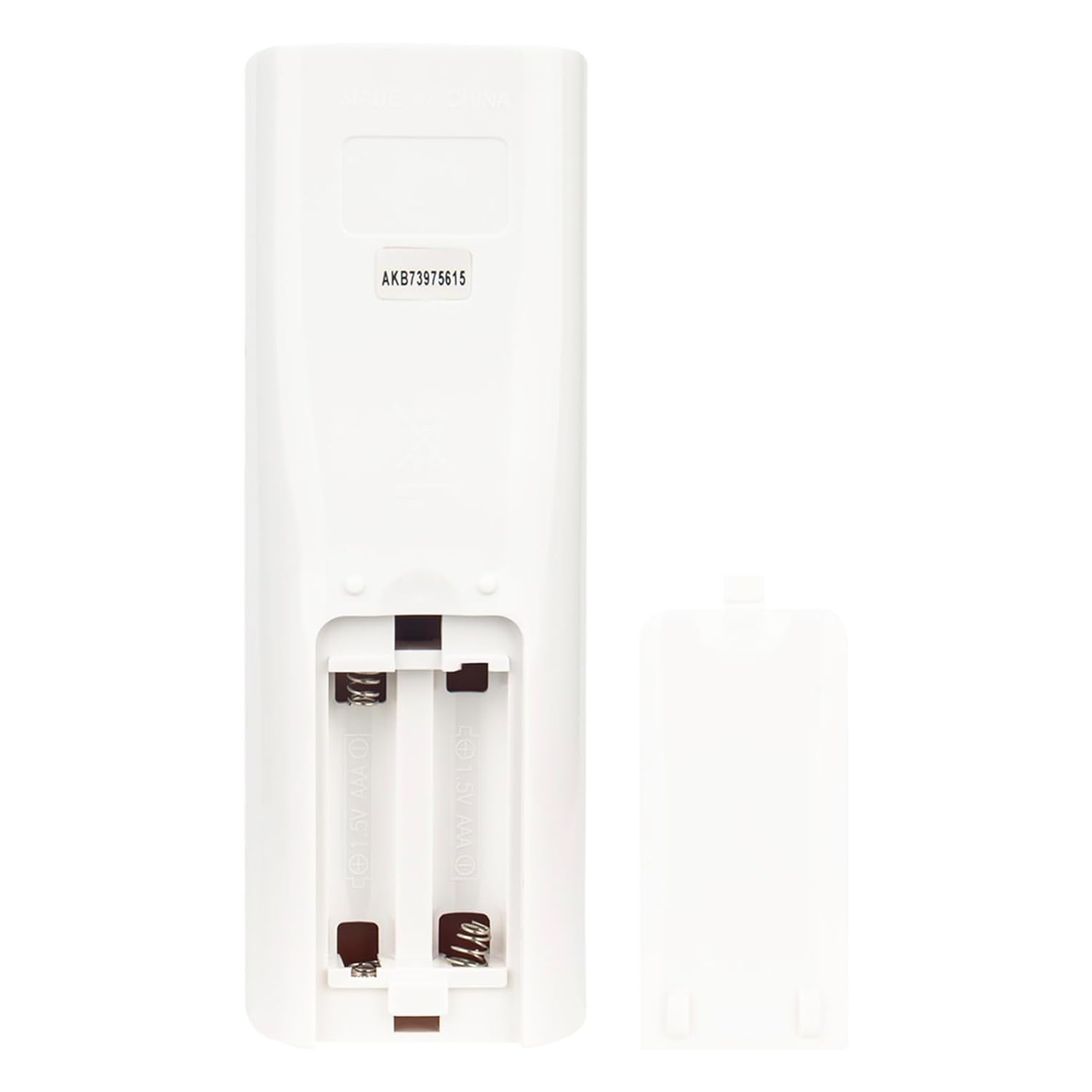

Image: Open battery compartment showing where to insert AAA batteries.

2. Початкове використання

After installing the batteries, the remote is ready for use. No pairing or programming is required. Simply point the remote control directly towards the infrared sensor on your LG AC Air Conditioner unit.

Інструкція з експлуатації

Ensure there are no obstacles between the remote control and the air conditioner unit's sensor for optimal performance. The remote operates using infrared technology.

Зображення: спереду view of the remote control, highlighting its buttons and general layout.

Функції кнопок:

• POWER (Red Button): Turns the air conditioner unit ON or OFF.
• ENERGY SAVING (Yellow Button): Активує або деактивує режим енергозбереження.
• M'SOON: Likely activates a specific 'Monsoon' or dehumidification mode.
• РЕЖИМ: Cycles through operating modes (e.g., Cool, Fan, Dry, Heat - depending on AC unit features).
• ТЕМПЕРАТУРА ▲ / ▼: Adjusts the temperature setting upwards or downwards.
• ШВИДКІСТЬ ВЕНТИЛЯТОРА: Регулювання швидкості вентилятора (наприклад, низька, середня, висока, автоматична).
• H'COOL: Activates a 'High Cool' or powerful cooling mode.
• SWING (Vertical): Controls the vertical louver swing.
• SWING (Horizontal): Controls the horizontal louver swing.
• КІМНАТНА ТЕМП: Displays the current room temperature.
• ТАЙМЕР УВІМК./ВИМК: Sets or cancels the timer for automatic power ON/OFF.
• СПАТИ: Activates sleep mode for quiet operation and adjusted temperature curves.
• SET / CLEAR: Used for setting or clearing timer functions.
• LIGHT / TIME [3SEC] / A/C CLEAN:
  • Press briefly for display light (if applicable).
  • Press and hold for 3 seconds to set the time.
  • Activates the A/C clean function (if supported by the unit).
• СКИДАННЯ: Resets the remote control settings.

Технічне обслуговування

Очищення пульта дистанційного керування

To clean the remote control, wipe it gently with a soft, dry cloth. Do not use liquid cleaners, abrasive cleaners, or chemical solvents, as these may damage the remote's surface or internal components.

Заміна батареї

Replace batteries when the remote's range decreases or if the display becomes dim. Always replace both batteries at the same time with new AAA alkaline batteries. Remove batteries if the remote will not be used for an extended period to prevent leakage.

Усунення несправностей

• Пульт не працює:
  • Ensure new AAA alkaline batteries are correctly installed with the correct polarity.
  • Point the remote directly at the air conditioner's infrared receiver.
  • Remove any obstacles between the remote and the AC unit.
  • Verify that the remote control sensor on the AC unit is clean and unobstructed.
• Дистанційне керування працює з перебоями:
  • Замініть батарейки на нові.
  • Ensure you are within the effective operating range (approximately 10 meters).
• Деякі функції не працюють:
  • This remote is a replacement and may not support all advanced features of your specific LG AC model if those features were unique to the original remote.
  • Ensure your AC unit supports the specific function you are trying to use (e.g., A/C Clean, specific swing modes).
• Remote is not compatible with my AC model:
  • This remote is compatible with specific LG AC models listed in the product description. If your model is not listed, it may not be fully compatible.
  • Refer to the "Compatible Models" section or contact support for assistance.

Технічні характеристики

Сумісні моделі:

This remote control is compatible with the following LG AC Air Conditioner models:

• AKB73456104
• AKB73315611
• AKB74515420
• A12AW1NF2
• A4UW246FA4
• AD0121
• ASNW126F1G2
• AMNH09GAF11
• AMNH12GAF11
• AMNW36GNJA0
• AMNW24GECA0
• APNH2433LAE
• ASNH18G8RU3
• APNH423TLAE
• ASNH24G8RU3
• USNW096H4A0
• LC097HV4
• LC127HV4
• LCN097HV4
• LCM427HV
• LCN246HV
• LCN127HV4
• LCN187HV
• LCN247HV
• LCN367H
• LMCN077HV
• LMCN097HV
• LCN426HV
• LMCN125HV
• LMCN185HV
• MA12AH1
• MU4M25
• MA09AH1

Note: If your specific model number is not listed, please contact customer support to verify compatibility before purchase.

Інформація про гарантію

This Allimity remote control comes with a Гарантія 30 днів from the date of purchase. This warranty covers manufacturing defects. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear. Please retain your proof of purchase for warranty claims.

Підтримка клієнтів

For any questions, troubleshooting assistance, or warranty claims, please contact Allimity customer support:

• Електронна пошта: indcandy2023@126.com
• Виробник: allimity inc
• Адреса виробника: RM B11-43, FL 11, Niulanqian, Minzhijiedao, Longhua, Shenzhen, Guangdong 518109, CN

When contacting support, please provide your product model number (AKB73975615) and a detailed description of the issue.
