VEVOR Commercial Beverage Dispenser (3 x 12L Tanks) Instruction Manual

1. Вступ

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your VEVOR Commercial Beverage Dispenser. Please read these instructions thoroughly before initial use and retain them for future reference. This appliance is designed for commercial use in dispensing cold beverages.

Image 1.1: The VEVOR Commercial Beverage Dispenser, showcasing its three transparent tanks and stainless steel base.

2. Техніка безпеки

• Переконайтеся, що прилад встановлено на стійкій, рівній поверхні, подалі від прямих сонячних променів та джерел тепла.
• Connect the dispenser to a grounded power outlet with the correct voltage, як зазначено на етикетці з характеристиками.
• Не занурюйте прилад або його електричні компоненти у воду чи інші рідини.
• Unplug the dispenser before cleaning, maintenance, or if it will be unused for an extended period.
• Тримайте дітей та сторонніх осіб подалі від приладу під час його роботи.
• Do not operate the dispenser with a damaged power cord or plug. Contact qualified service personnel for repairs.
• Allow the unit to stand upright for at least 24 hours after transportation before plugging it in to allow the refrigerant to settle.

3. Компоненти та характеристики продукту

The VEVOR Commercial Beverage Dispenser is constructed with durable, food-grade materials for reliable performance.

Ключові компоненти:

• Beverage Tanks: Three 12-liter (12.7 QT) transparent PC (Polycarbonate) tanks for holding beverages.
• Основа з нержавіючої сталі: Thickened SUS stainless steel shell providing stability and corrosion resistance.
• Dispensing Spouts: Enlarged diameter spouts with stainless steel press switches for easy dispensing, even with beverages containing small pulp particles.
• Stirring Rods: Located within each tank to ensure uniform beverage temperature and prevent sedimentation.
• Система охолодження: Includes a powerful compressor, high-efficiency condenser, and 304 food-grade stainless steel evaporator for rapid and consistent cooling.
• Water Receiving Trays: Large capacity trays at the base to catch drips and maintain cleanliness.
• Перемикачі управління: Independent buttons for activating cooling and stirring functions.

Image 3.1: Material construction details, showing food-grade PC tanks and stainless steel components.

Image 3.2: User-friendly design elements including the press switch, enlarged spout, drip tray, and sealing ring.

4. Налаштування

1. Розпакування: Обережно вийміть дозатор з упаковки. Перевірте його на наявність пошкоджень під час транспортування.
2. Розміщення: Position the dispenser on a sturdy, level counter or table. Ensure adequate ventilation around the unit, especially at the sides and rear where air vents are located.
3. Початкове очищення: Before first use, thoroughly clean all parts that will come into contact with beverages. Refer to the 'Cleaning and Maintenance' section for detailed instructions.
4. Осідання холодоагенту: After transportation, allow the unit to stand upright and unplugged for a minimum of 24 hours. This allows the refrigerant to stabilize, preventing potential damage to the compressor.
5. Збірка: Ensure the tanks are correctly seated on the base, and the dispensing spouts are securely attached. Verify that all sealing rings are properly in place to prevent leaks.
6. Підключення живлення: Plug the dispenser into a dedicated, grounded electrical outlet that matches the voltagе вимоги підрозділу.

Image 4.1: Important note regarding the 24-hour waiting period after transport for refrigerant settling.

5. Інструкція з експлуатації

1. Заповнення резервуарів: Open the lids of the beverage tanks and pour your desired cold beverages into each tank. Do not overfill beyond the maximum fill line.
2. Активація охолодження: Press the 'Cooling' switch to turn on the refrigeration system. The unit will begin to cool the beverages to the optimal temperature range of 45-54°F (7-12°C).
3. Activate Stirring: If your beverage requires continuous mixing (e.g., juice with pulp, milkshakes), press the 'Stirring' switch. The internal stirring rods will rotate to maintain a consistent temperature and prevent sedimentation.
4. Дозування: Place a cup under the desired dispensing spout. Press the stainless steel press switch to release the beverage. Release the switch to stop dispensing.
5. Моніторинг: Regularly check beverage levels and refill as needed. Ensure the drip trays are emptied periodically to prevent overflow.

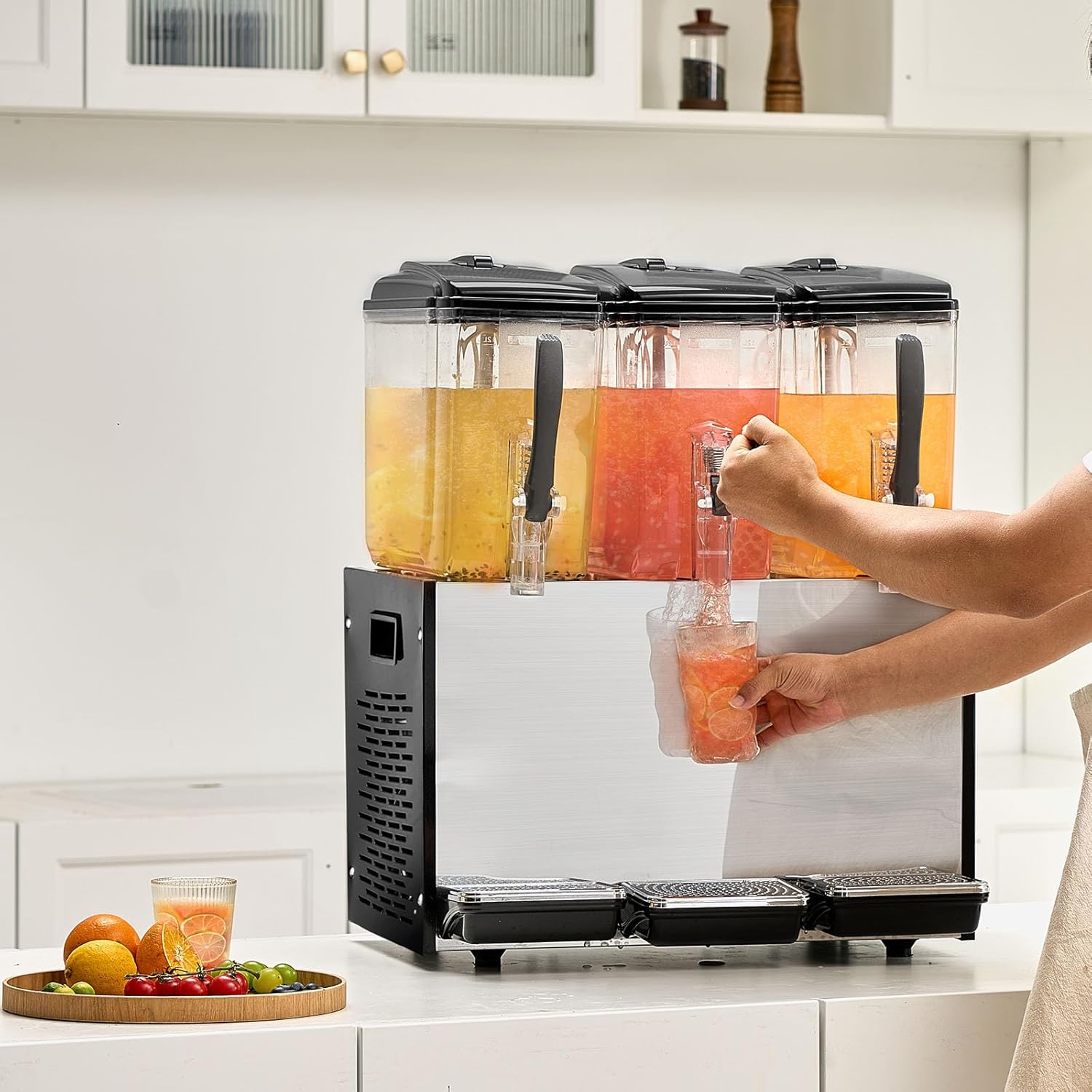

Image 5.1: Demonstrating the dispensing process using the press switch.

6. Очищення та технічне обслуговування

Regular cleaning and maintenance are crucial for hygiene and extending the lifespan of your beverage dispenser.

Щоденне прибирання:

1. Вимкнення живлення: Turn off both the cooling and stirring switches, then unplug the unit from the power outlet.
2. Порожні резервуари: Drain any remaining beverages from the tanks.
3. Розбирати: Carefully remove the tanks, lids, stirring rods, and dispensing spouts.
4. Компоненти мийки: Wash all removable parts with warm, soapy water. Use a soft brush for thorough cleaning. Rinse thoroughly with clean water.
5. Чиста основа: Wipe down the stainless steel base with a damp cloth and mild detergent. Do not use abrasive cleaners or immerse the base in water.
6. Сухий: Перед повторним складанням переконайтеся, що всі компоненти повністю сухі, щоб запобігти розмноженню бактерій.
7. Empty Drip Trays: Remove and empty the water receiving trays, then wash and dry them.

Періодичне технічне обслуговування:

• Inspect sealing rings for wear and tear. Replace if necessary to prevent leaks.
• Ensure the ventilation grilles on the sides and back of the unit are free from dust and debris to maintain efficient cooling.
• The provided Vaseline can be applied sparingly to rubber seals to maintain their flexibility and extend their lifespan.

7. Вирішення проблем

8. Технічні характеристики

Image 8.1: Product dimensions and a list of included accessories.

9. Аксесуари в комплекті

The following items are included with your VEVOR Commercial Beverage Dispenser:

• 1 x Commercial Beverage Dispenser Unit
• 1 х Інструкція з експлуатації
• 3 x Tank Seal Rings
• 3 х насадки
• 6 x O-Ring Seals
• 3 x Water Catchment Boxes
• Vaseline (for rubber seals)

10. Гарантія та підтримка

For warranty information, technical support, or service inquiries, please refer to the contact details provided in your purchase documentation or visit the official VEVOR webсайт. Зберігайте чек про покупку як підтвердження покупки для гарантійних претензій.
