INJORA 1.0 inch 57x22mm Rock Terrain Tires & Silicone Rubber Inserts Instruction Manual

1. Продукт закінчивсяview

The INJORA 1.0 inch Rock Terrain Tires and Silicone Rubber Inserts are designed for 1/24 and 1/18 scale RC crawlers. This combo provides enhanced grip and sidewall support for various rock crawling and off-road conditions. The tires are molded in the Super Soft & Sticky S5 Compound, featuring a practical tread pattern for consistent traction. The included silicone rubber inserts offer superb sidewall support, improving overall performance.

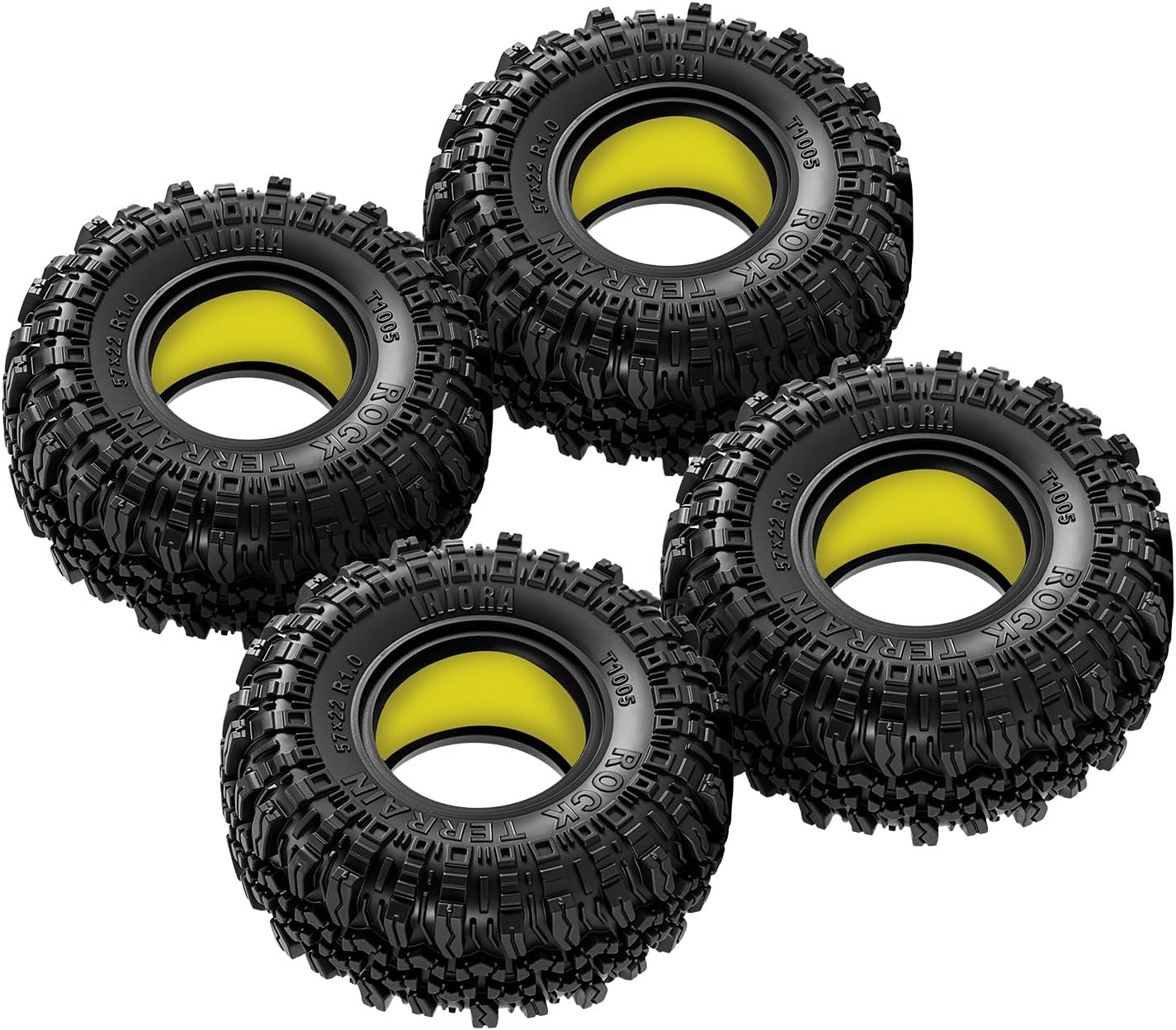

Зображення 1.1: закінченоview of the INJORA 1.0 inch Rock Terrain Tires and Silicone Rubber Inserts.

2. Вміст упаковки

Перевірте наявність усіх компонентів у вашій упаковці:

• 4 x 1.0 inch Rock Terrain Tires (Part Number: T1005)
• 4 x Silicone Rubber Inserts (Yellow, Super Soft)

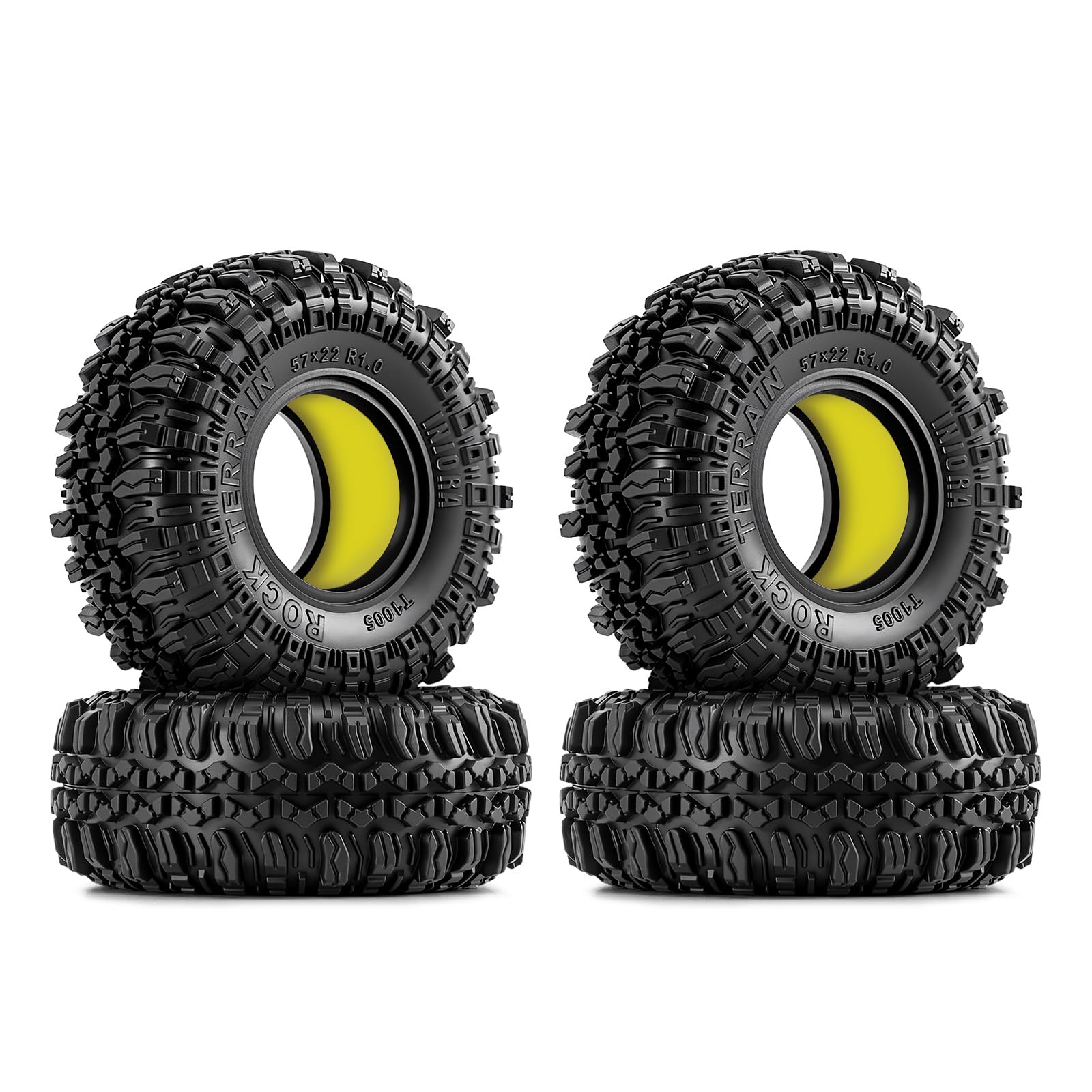

Image 2.1: Complete package contents including four tires and four silicone inserts.

3. Особливості продукту

• Molded in the Super Soft & Sticky INJORA S5 Compound for superior grip.
• Practical tread pattern designed for consistent grip on rocks and mixed crawling surfaces.
• Staggered center blocks provide stable forward traction.
• Side tread blocks offer added support during turns and off-camber driving.
• Includes silicone rubber inserts for superb sidewall support and improved performance.

Зображення 3.1: Детальний опис view of the tire's tread pattern, highlighting the staggered center and side blocks.

Image 3.2: The super soft silicone rubber insert, demonstrating its flexibility.

4. Налаштування та встановлення

These tires and inserts are designed for easy installation on compatible 1.0 inch RC wheels. Assembly is required.

4.1 Необхідні інструменти (не включені)

• Small screwdriver or hex wrench (depending on wheel type)
• RC wheel (1.0 inch diameter)

4.2 Етапи встановлення

1. Підготуйте колесо: If using beadlock wheels, disassemble the wheel by removing the screws that hold the outer rings. For glued wheels, ensure the wheel is clean and ready for tire mounting.
2. Insert the Silicone: Carefully place one silicone rubber insert inside one tire. Ensure the insert sits evenly within the tire casing. The insert provides internal support to the tire.
3. Встановіть шину: Position the tire with the insert onto your 1.0 inch RC wheel. For beadlock wheels, align the tire beads with the inner and outer rings of the wheel. For glued wheels, apply appropriate RC tire glue to the wheel bead and carefully press the tire onto the wheel, ensuring a secure fit.
4. Закріпіть колесо: For beadlock wheels, reassemble the outer rings and tighten the screws evenly in a star pattern to ensure the tire bead is securely clamped without pinching the tire or insert. For glued wheels, allow sufficient drying time for the glue as per the glue manufacturer's instructions before use.
5. повторити: Follow these steps for the remaining tires and inserts.

Image 4.1: Illustration of the silicone insert correctly positioned within the tire for optimal sidewall support.

5. Операція

These tires are designed for RC crawler applications, offering excellent performance on various terrains, including rocks, dirt, and mixed surfaces. The S5 compound provides a balance of softness and durability for challenging conditions.

• Придатність місцевості: Optimized for rock crawling and general off-road use.
• Продуктивність: The super soft compound and silicone inserts work together to allow the tire to conform to obstacles, maximizing contact patch and grip.
• Стиль водіння: Best suited for slow-speed, technical crawling where precise traction is critical.

6. Технічне обслуговування

Proper maintenance ensures the longevity and consistent performance of your INJORA tires and inserts.

• Прибирання: After use, especially in muddy or dusty conditions, clean the tires with mild soap and water. Rinse thoroughly and allow them to air dry completely. This helps maintain the stickiness of the S5 compound.
• Огляд: Regularly inspect tires for cuts, tears, or excessive wear. Check inserts for deformation or damage. Replace any damaged components to maintain optimal performance.
• Зберігання: Store tires in a cool, dry place away from direct sunlight and extreme temperatures. Avoid storing them under heavy objects that could deform the tires or inserts.

Image 6.1: The silicone inserts are waterproof and can be easily cleaned.

7. Вирішення проблем

If you encounter issues with your tires, consider the following:

• Втрата зчеплення: Ensure tires are clean. Dirt and debris can reduce traction. If tires feel less sticky over time, a thorough cleaning may restore performance.
• Tire Deformation/Wobble: Check if the silicone insert is properly seated within the tire and if the tire is correctly mounted on the wheel. For beadlock wheels, ensure all screws are tightened evenly.
• Передчасне зносування: Excessive speed or aggressive driving on abrasive surfaces can accelerate wear. Ensure your RC vehicle's suspension and alignment are correctly set up.

8. Технічні характеристики

Image 8.1: Dimensional specifications for the tire and insert.

9. Гарантія та підтримка

For specific warranty information and customer support, please refer to the official INJORA webсайт або зверніться до продавця. Зберігайте чек про покупку як підтвердження покупки.

• Виробник: ІНДЖОРА
• Контакти: Refer to INJORA's official channels for support.
