вступ
Thank you for choosing the TFA Dostmann Smart BBQ 14.1515.10 Wireless Meat Thermometer. This device allows you to monitor both the core temperature of your food and the ambient temperature of your cooking environment (grill, oven, air fryer) with precision, ensuring perfectly cooked results every time. This manual provides essential information for the safe and efficient use of your new thermometer.
Image: The TFA Dostmann Smart BBQ Wireless Meat Thermometer, showing the main unit (booster) and the probe.
Продукт закінченийview і компоненти
The Smart BBQ Wireless Meat Thermometer system consists of two main components: the wireless probe and the booster/charging station.
- Wireless Probe: A thin, stainless steel probe with a ceramic handle designed to be inserted into food. It measures both internal food temperature and ambient cooking temperature. It is dishwasher-safe.
- Booster/Charging Station: This unit charges the probe and extends its wireless range. It features a magnetic back for convenient placement.
- USB-кабель для зарядки: For recharging the booster.
- Керівництво користувача: Цей документ.

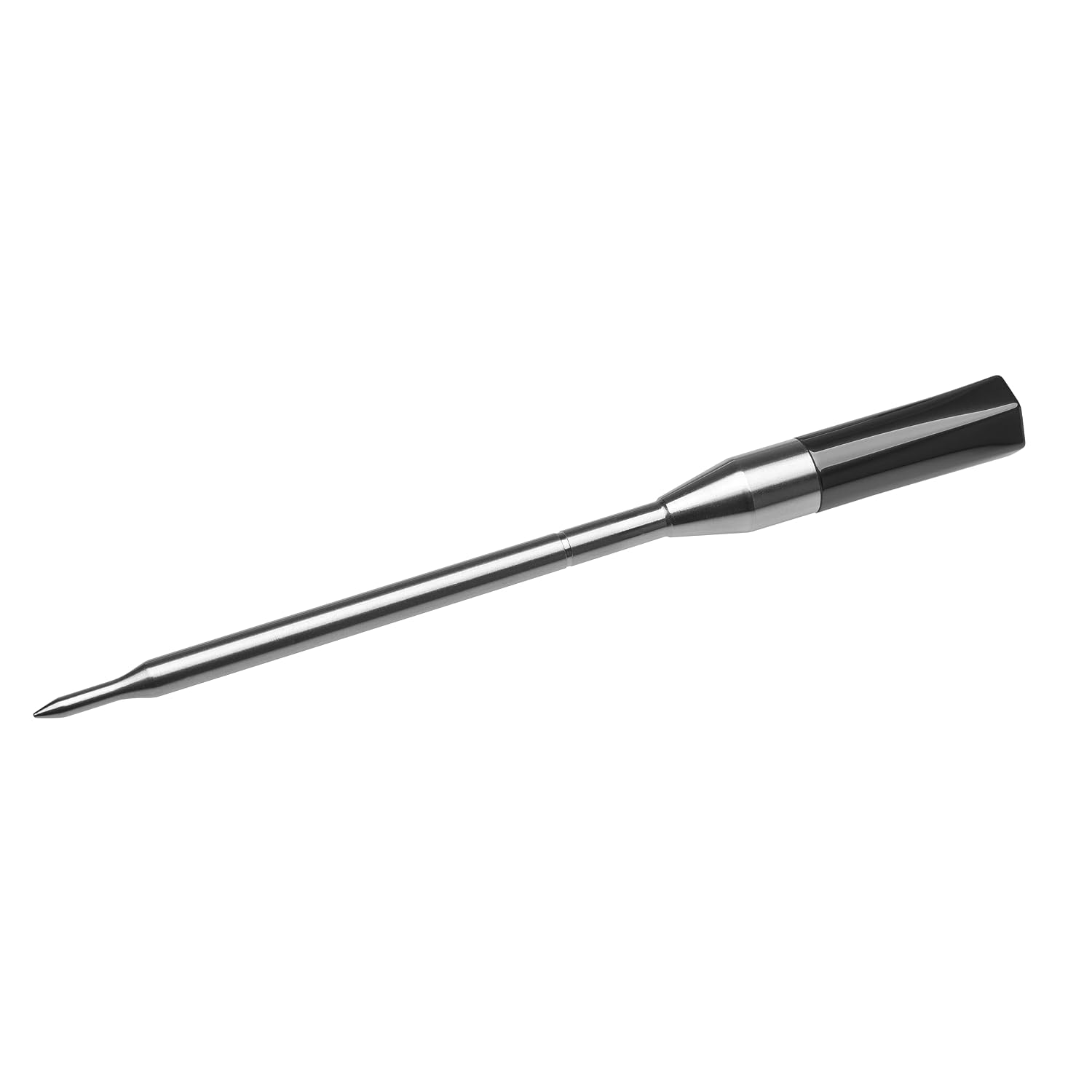

Зображення: Детальний view of the wireless stainless steel probe with its ceramic handle.
Налаштування
- Charge the Probe and Booster:
- Insert the wireless probe into the charging station. The probe fully charges in approximately 30 minutes, providing up to 48 hours of use.
- Connect the booster/charging station to a USB power source using the provided USB cable. The booster fully charges in approximately 60 minutes.
- Download the TEMPROBE App:
Download the free TEMPROBE app from the App Store (for iOS devices) or Google Play Store (for Android devices). шукати "TEMPROBE".
- Підключення пристрою:
- Переконайтеся, що на вашому смартфоні або планшеті увімкнено Bluetooth.
- Open the TEMPROBE app.
- Press the "SYNC" button on the booster/charging station to initiate pairing. The app will guide you through the connection process.
Image: Diagram illustrating the wireless connection flow from the probe to the booster, and then to the TEMPROBE app on a smartphone.
Інструкція з експлуатації
- Вставте зонд: Carefully insert the stainless steel probe into the thickest part of the meat, avoiding bones. Ensure the probe is securely placed. The probe can withstand ambient temperatures up to 300 °C.
- Place the Booster: Position the booster/charging station within 2 to 20 meters of the probe. The booster extends the wireless range to your smartphone up to 50 meters. Its magnetic back allows attachment to metal surfaces like a refrigerator or grill side table.
- Монітор за допомогою застосунку:
- Open the TEMPROBE app on your smartphone or tablet.
- The app will display both the core temperature of your food and the ambient temperature of your cooking environment.
- Choose from pre-programmed meat types and doneness levels, or set a custom target temperature.
- Set upper and lower temperature limits for the cooking chamber if desired.
- Utilize the integrated timer to track cooking duration.
- Сигналізація та сповіщення:
The app will notify you when the target temperature is reached, the timer expires, or if the cooking chamber temperature falls outside your set limits. Customize alarm settings within the app.
Image: The wireless probe accurately measuring the internal temperature of a large roast inside a smoker or oven.
Image: The wireless probe inserted into a piece of salmon on a grill, demonstrating its use in various cooking environments.
Технічне обслуговування
- Очищення зонда: The stainless steel probe is dishwasher-safe. For manual cleaning, wash with warm soapy water and dry thoroughly.
- Бустерне очищення: Wipe the booster/charging station with a damp тканина. Не занурюйте його у воду.
- Зберігання: Store the probe and booster in a dry place when not in use.
- Догляд за акумулятором: Recharge the probe and booster regularly to maintain battery health, especially if stored for extended periods.
Усунення несправностей
| проблема | Можлива причина | Рішення |
|---|---|---|
| No connection between probe and booster. | Probe or booster battery is low; probe is out of range; interference. | Recharge both devices. Ensure probe is within 2-20m of the booster. Reduce potential interference sources. |
| No connection between booster and app. | Booster battery is low; Bluetooth is off; booster is out of range of the phone; app issue. | Recharge the booster. Enable Bluetooth on your device. Ensure phone is within 50m of the booster. Restart the app or phone. |
| Неточні показання температури. | Зонд вставлено неправильно; зонд пошкоджено. | Ensure the probe is inserted into the thickest part of the meat, away from bones. If damage is suspected, contact support. |
| Додаток не відповідає. | Software glitch; device compatibility issue. | Close and restart the app. Restart your smartphone/tablet. Check for app updates. |
Технічні характеристики
| Номер моделі | 14.1515.10 |
| Бренд | ТФА Достман |
| Діапазон температур зонда | від -10 °C до 100 °C |
| Cooking Chamber Temperature Range | від -10 °C до 300 °C |
| Wireless Range (Probe to Booster) | Від 2 до 20 метрів |
| Wireless Range (Booster to Smartphone) | До 50 метрів |
| матеріал | Пластик, нержавіюча сталь |
| Батарея датчика | Integrated Lithium-ion 5 mAh, 2.4 V (approx. 30 min charge for 48 hrs use) |
| Бустерна батарея | Integrated Lithium-ion 650 mAh, 3.7 V (approx. 60 min charge) |
| Розміри (Д x Ш x В) | 169 x 52 x 23 мм |
| вага | 129 г |
| Точність вимірювання | +/- 1 ° C |
| Підключення | Bluetooth |
| Особливості | Alarm, Low Battery Indicator, Programmable, Rechargeable, Contactless |
Гарантія та підтримка
The manufacturer, TFA Dostmann, provides a 1-year availability for spare parts for this product. For further support, please refer to the contact information provided with your purchase or visit the official TFA Dostmann webсайт.
