ROBOTIME 3D Wooden Puzzle Marble Run LGX02 Instruction Manual

1. Продукт закінчивсяview

The ROBOTIME LGX02 is an advanced 3D wooden puzzle that combines two distinct marble run models, the Marble Run Night City (LGA01) and the Marble Run Space Port (LGC01), connected by the LG01 Link Pack. This unique combination creates an extended and interactive electric marble run experience. Designed for enthusiasts aged 14 and above, this kit offers a challenging yet rewarding assembly process, culminating in a dynamic display piece with electric ball movement and integrated lighting effects.

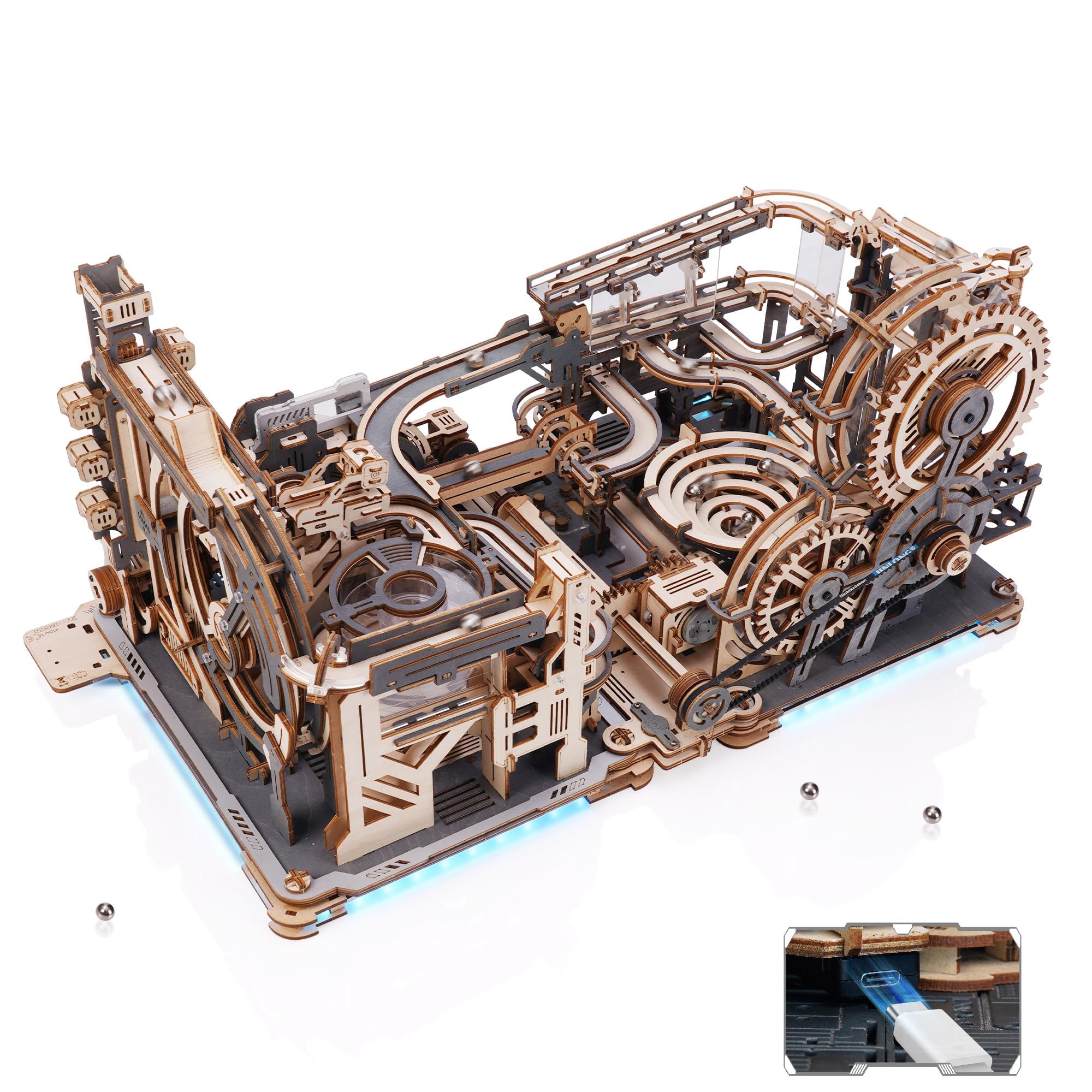

Image 1.1: The fully assembled ROBOTIME LGX02 Marble Run, showcasing its intricate design and combined modules.

Ключові характеристики:

• Unique Combination: Integrates LGA01 (Night City) and LGC01 (Space Port) models with the LG01 Link Pack for an expanded marble run.
• Електрична операція: Features a USB-powered electric drive system for continuous ball movement (USB cable not included).
• Interactive Lighting: Equipped with LED lights that offer breathing and constant illumination modes, controlled by a touch switch.
• Advanced Assembly: Rated as an advanced skill level kit, providing over 14 hours of engaging construction.
• Освітнє значення: Enhances creativity, concentration, and problem-solving skills through hands-on building.
• Декоративний дисплей: Serves as an attractive interior decoration and a unique collection item upon completion.

2. Інформація про безпеку

Please read and understand all safety warnings and instructions before assembling and operating this product. Failure to follow these instructions may result in injury or damage to the product.

• Небезпека задухи: Цей виріб містить дрібні деталі та не підходить для дітей віком до 3 років.
• Нагляд дорослих: For safety, assembly and operation should always be performed under adult supervision, especially for younger users.
• Прочитайте інструкції: Always read the entire instruction manual thoroughly before beginning assembly.
• Обережно поводьтеся: Wooden parts can be delicate. Handle them carefully to prevent breakage during removal from sheets and assembly.

3. Вміст упаковки

Перш ніж розпочати складання, перевірте наявність усіх перелічених нижче компонентів у вашій упаковці. Якщо якісь деталі відсутні або пошкоджені, зверніться до служби підтримки клієнтів.

Image 3.1: All components included in the ROBOTIME LGX02 kit.

• Pre-cut Wooden Sheets (for LGA01, LGC01, and LG01 modules)
• Steel Balls (20 pieces)
• Electric Motor Unit
• LED Light Strip with Touch Switch
• Plastic Components (e.g., track connectors, gears)
• Ілюстрована інструкція з експлуатації
• Small Tools/Accessories (e.g., sandpaper, wax, glue if required by specific steps)

Примітка: A USB cable for powering the electric motor is not included and must be provided separately.

4. Інструкції з налаштування

Follow these general steps for assembling your ROBOTIME 3D Wooden Puzzle Marble Run LGX02. Refer to the detailed illustrated instruction manual included in your package for specific step-by-step guidance.

Image 4.1: Assembly in progress, demonstrating the hands-on building experience.

1. Приготування:
   • Clear a spacious, well-lit workspace.
   • Organize all wooden sheets and small parts.
   • Have a craft knife, sandpaper, and possibly wood glue (not always required, check manual) ready.
2. Ідентифікація частини: Carefully identify each wooden piece by matching it with the diagrams in the instruction manual.
3. Видалення деталі: Gently press out the pre-cut wooden pieces from their sheets. Use a craft knife for any stubborn connections to avoid damaging the parts. Smooth rough edges with sandpaper if necessary.
4. Module Assembly (LGA01 & LGC01): Follow the instructions to assemble the Night City (LGA01) and Space Port (LGC01) modules separately. Pay close attention to gear alignment and moving parts to ensure smooth operation.
5. Link Pack Assembly (LG01): Assemble the LG01 Link Pack according to its specific instructions. This module connects the two main marble run sections.
6. Connecting Modules: Once LGA01, LGC01, and LG01 are assembled, connect them as shown in the manual to form the complete LGX02 marble run.
7. Electric Motor & Lighting Installation: Install the electric motor unit and LED light strip as directed. Ensure all connections are secure.
8. Остаточні перевірки: Before powering on, manually check all moving parts, gears, and tracks to ensure they move freely without obstruction.

5. Інструкція з експлуатації

Once assembled, your ROBOTIME LGX02 Marble Run is ready for operation. Follow these steps to enjoy the dynamic movement of the steel balls and the integrated lighting effects.

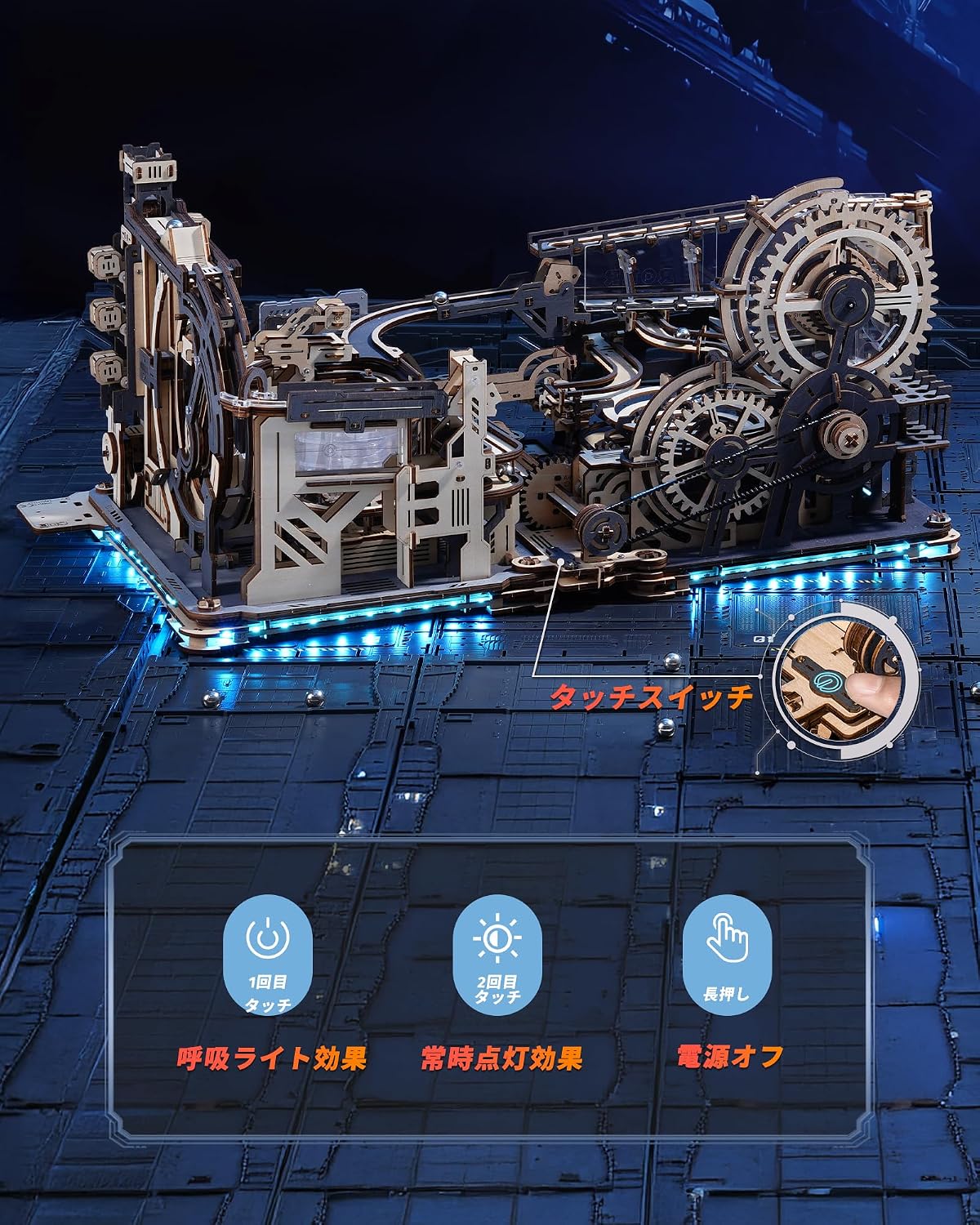

Image 5.1: Illustration of the touch switch functionality for controlling lights and power.

1. Підключення живлення: Connect a standard USB cable (not included) to the designated port on the marble run and to a compatible USB power source (e.g., USB wall adapter, power bank, computer USB port).
2. Активація двигуна: The electric motor should start automatically once power is supplied, initiating the movement of the gears and the ball lift mechanism.
3. Placing Steel Balls: Carefully place the steel balls into the designated starting point of the marble run. The electric mechanism will then transport them through the tracks.
4. Керування освітленням: The integrated LED lights are controlled by a touch switch:
   • Перший дотик: Activates the breathing light effect, where the lights gently fade in and out.
   • Другий дотик: Switches to a constant light effect, keeping the LEDs steadily illuminated.
   • Тривале натискання: Powers off the LED lights.
5. Вимкнення живлення: To completely turn off the marble run, disconnect the USB power cable from the device or the power source.

6. Технічне обслуговування

Proper maintenance will ensure the longevity and smooth operation of your ROBOTIME LGX02 Marble Run.

• Прибирання: Regularly dust the model with a soft, dry cloth or a soft brush. Avoid using water or chemical cleaners, as they can damage the wooden components. Dust accumulation can hinder the smooth movement of parts.
• Змащення: If any gears or moving parts become stiff, apply a small amount of wax (often included in the kit) or a dry lubricant to the contact points. Avoid oil-based lubricants, which can attract dust.
• Зберігання: Store the marble run in a dry environment, away from direct sunlight and extreme temperature changes, which can cause the wood to warp or crack.
• Обробка: Always handle the assembled model with care. Avoid dropping it or applying excessive force, which can cause delicate parts to break.

7. Вирішення проблем

If you encounter any issues with your ROBOTIME LGX02 Marble Run, refer to the following troubleshooting guide:

8. Технічні характеристики

Detailed specifications for the ROBOTIME 3D Wooden Puzzle Marble Run LGX02.

Image 8.1: Visual representation of the assembled product's dimensions and recommended age.

9. Гарантія та підтримка

Specific warranty details for the ROBOTIME LGX02 are not provided in this manual. For warranty information, product support, or to inquire about replacement parts, please contact ROBOTIME customer service directly through their official webсайт або магазин, у якого ви придбали товар.

Завжди зберігайте підтвердження покупки для будь-яких гарантійних претензій або запитів служби підтримки.
