1. Вступ
Thank you for choosing the American Volt AV-1210X Dual 10-11 Inch Radiator Cooling Electric Fans. These high-performance fans are designed to provide efficient cooling for automotive engine radiators. Featuring 180-watt motors, they deliver significant airflow and are reversible for both puller and pusher configurations. Please read this manual thoroughly before installation and operation to ensure proper function and longevity of your product.
2. Інформація про безпеку
- Always disconnect the vehicle's battery before performing any electrical work to prevent electrical shock or short circuits.
- Під час встановлення використовуйте відповідні засоби індивідуального захисту, включаючи захисні окуляри та рукавички.
- Ensure all wiring connections are secure and properly insulated to prevent fire hazards or electrical malfunctions.
- Keep hands and loose clothing away from the fan blades when the fan is powered to avoid injury.
- Не вмикайте вентилятор, якщо будь-яка його частина пошкоджена або якщо проводка оголена.
- Якщо ви не впевнені щодо будь-яких кроків встановлення, зверніться до кваліфікованого автомобільного техніка.
3. Вміст упаковки
Перевірте наявність усіх предметів у вашій упаковці:

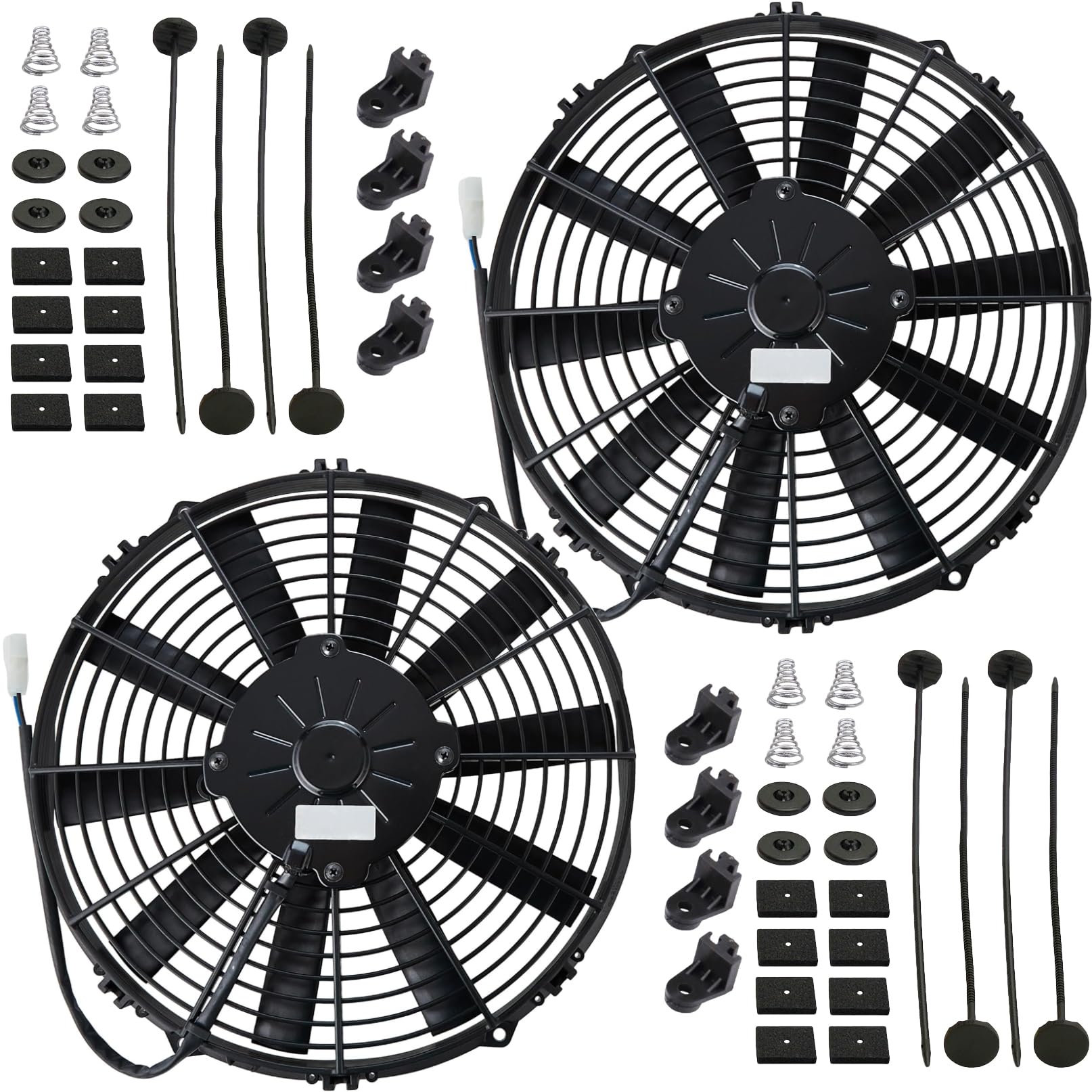

- 2 x American Volt 10-11 Inch Electric Cooling Fans
- 8 x Corner Mounting Bracket Feet
- 2 x Tie Strap Installation Kits (each kit includes 4 tie straps, 4 plastic locks, 4 spacers, 4 tension springs, 4 foam pads)
- 2 x Wiring Harnesses with Connectors
Image: Components of the tie strap installation kit and mounting brackets, including tie straps, plastic locks, spacers, tension springs, and foam pads.
4. Технічні характеристики
| Особливість | Специфікація |
|---|---|
| Модель | AV-1210X |
| Розмір вентилятора | Dual 10-11 Inch Straight Blade |
| Потужність двигуна | 180 Watts per fan |
| томtage | 12 вольта постійного струму |
| Поточний розіграш | 12 Amps per fan |
| Потік повітря (CFM) | 2550 CFM per fan |
| Конфігурація | Reversible (Default: Air Puller) |
| Dimensions (Each Fan) | 11.5" x 10.75" x 4" (center thickness), 1.4" (edge thickness) |
| матеріал | Легована сталь, пластик |
| вага | Approximately 5 Pounds (each fan) |
5. Налаштування та встановлення
5.1 Fan Configuration (Puller vs. Pusher)
The fans are configured as air pullers by default, meaning they pull air through the radiator. To convert them to air pushers (pushing air through the radiator), simply reverse the polarity of the wiring (swap the positive and negative wires) and flip the fan over. The fan blades are designed to operate efficiently in both directions.
Зображення: спереду view of the American Volt 10-11 inch electric cooling fan, showing the blades and shroud.
Зображення: Задня частина view of the American Volt 10-11 inch electric cooling fan, showing the motor and wiring connection point.
5.2 Монтаж вентиляторів
The fans can be mounted using the included corner mounting bracket feet or the tie strap installation kits.
Option A: Using Corner Mounting Bracket Feet
- Attach the 8 corner mounting bracket feet to the fan shrouds using appropriate hardware (not included).
- Position the fans against the radiator or condenser.
- Secure the fans to the vehicle's mounting points using bolts, nuts, and washers (not included) through the holes in the bracket feet. Ensure a secure and stable installation.
Зображення: Крупний план view of the black plastic corner mounting brackets.
Option B: Using Tie Strap Installation Kits
This method allows for direct mounting through the radiator fins.
- Insert the pointed end of a tie strap through the fan mounting bracket and then through the radiator fins.
- On the opposite side of the radiator, slide a spacer onto the tie strap, followed by a foam pad (adhesive side towards the radiator).
- If desired, add a tension spring for additional stability.
- Secure the tie strap with a plastic lock, pulling it tight until the fan is firmly against the radiator.
- Repeat for all four mounting points per fan. Trim any excess tie strap.

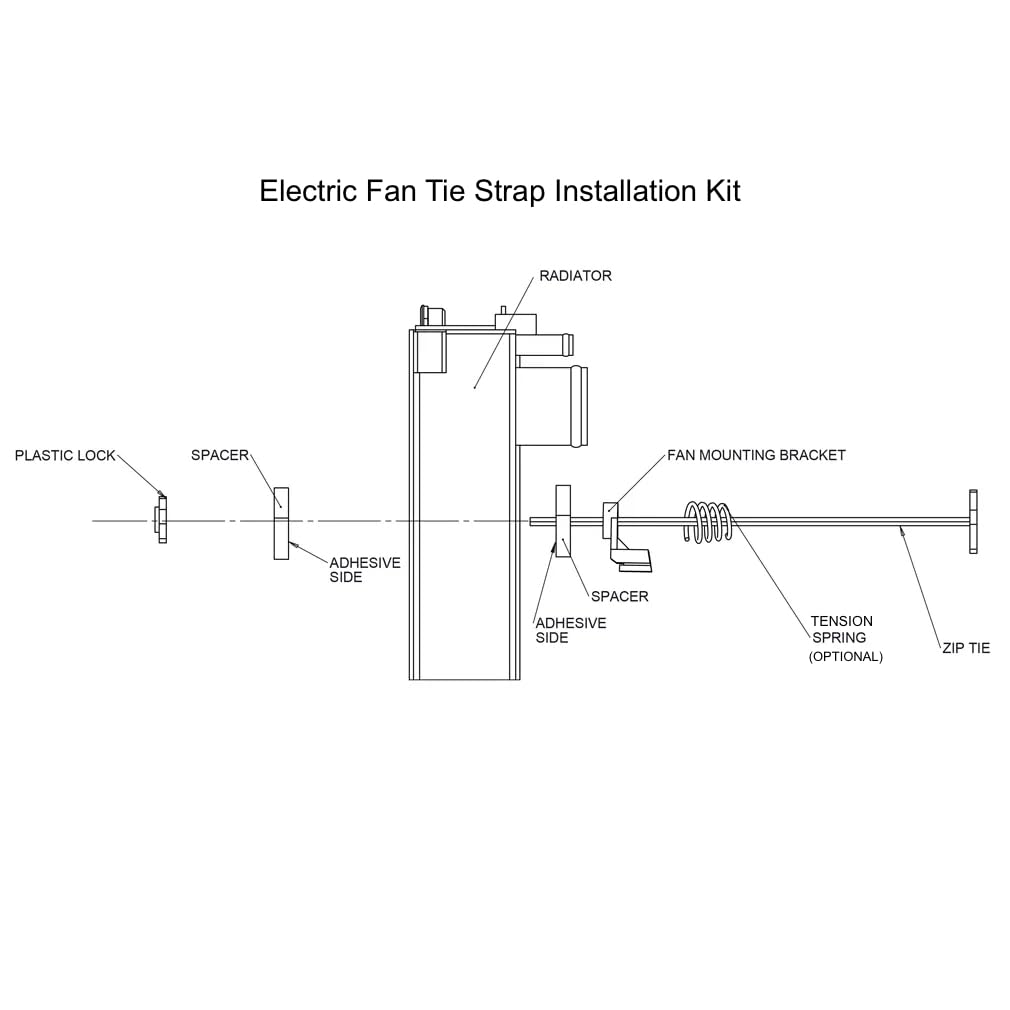

Image: Diagram illustrating the electric fan tie strap installation kit components and their assembly for mounting the fan to a radiator.
5.3 Wiring the Fans
Each fan comes with a wiring harness. The black wire is typically negative (-), and the blue wire is positive (+). Connect the fans to a 12V power source, typically through a relay and a temperature switch for automatic operation, or a manual switch.
- Важливо: Always use a fuse or circuit breaker appropriate for the fan's current draw (12 amps per fan) to protect the circuit.
- Connect the negative (-) wire (black) to a good chassis ground.
- Connect the positive (+) wire (blue) to a fused 12V power source, preferably through a relay triggered by a temperature switch or ignition.
- If converting to a pusher fan, reverse the polarity: connect the blue wire to ground and the black wire to the fused 12V source.
- Ensure all connections are crimped securely and insulated with heat shrink tubing or electrical tape to prevent corrosion and short circuits.
Image: Wiring harness with black and blue wires, terminating in a white connector.

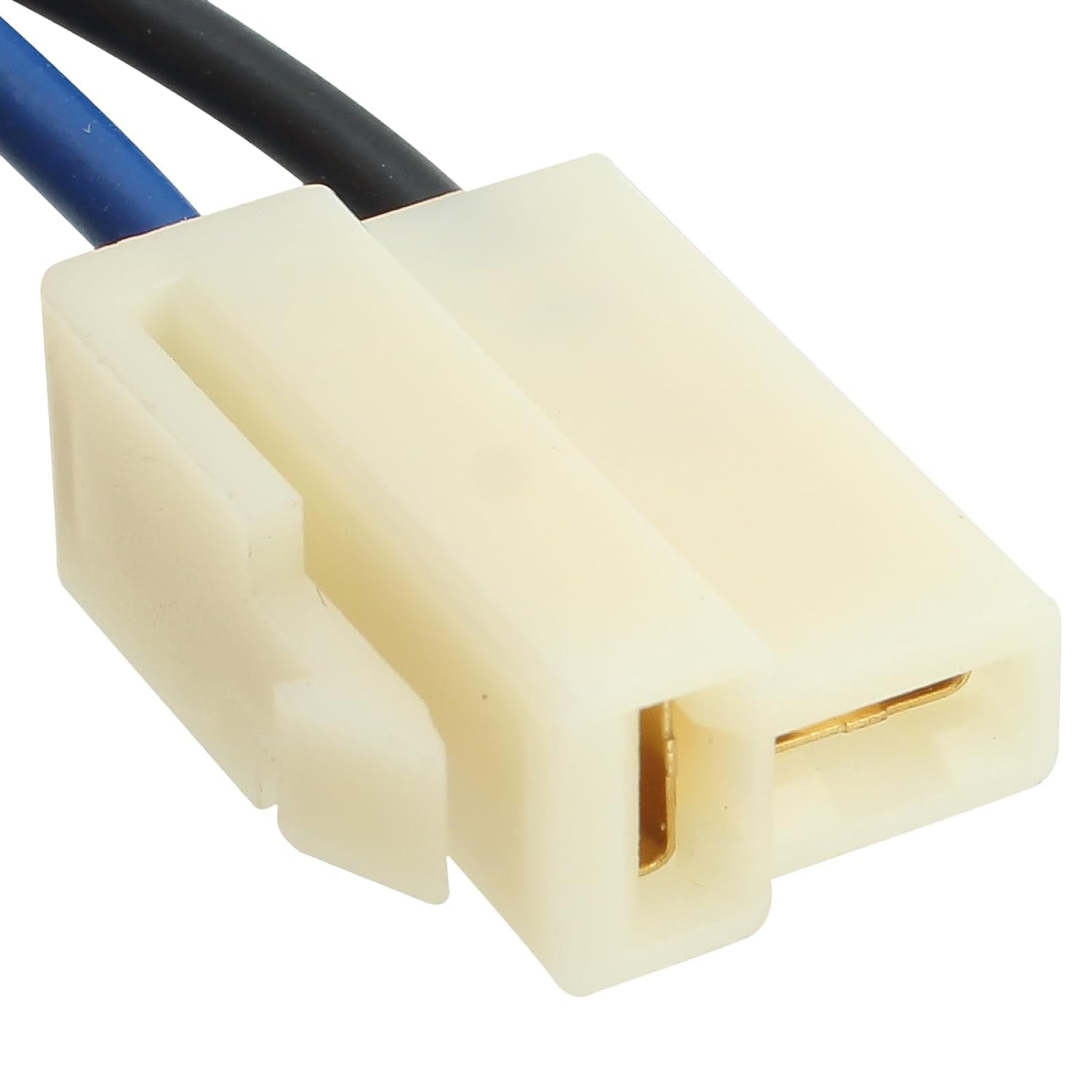

Зображення: Крупний план view of the white electrical connector used for the fan wiring.
6. Інструкція з експлуатації
Once properly installed and wired, the American Volt AV-1210X fans will operate based on the control method chosen during installation (e.g., temperature switch, manual switch). Ensure your vehicle's cooling system is filled with the correct coolant and is free of air pockets before operating the fans.
- Автоматична робота: If connected to a temperature switch, the fans will activate automatically when the engine coolant reaches the set temperature and deactivate when the temperature drops.
- Ручне керування: If connected to a manual switch, you can turn the fans on and off as needed. Monitor your engine temperature gauge to prevent overheating.
Regularly check the fan's operation, especially during initial use, to confirm proper airflow and cooling performance.
7. Технічне обслуговування
Minimal maintenance is required for these electric cooling fans. However, periodic checks are recommended to ensure optimal performance and longevity.
- Прибирання: Periodically inspect the fan blades and shroud for accumulation of dirt, debris, or leaves. Clean gently with a soft brush or compressed air. Avoid using harsh chemicals that could damage plastic components.
- Перевірка проводки: Check all wiring connections for signs of corrosion, fraying, or loose terminals. Ensure insulation is intact.
- Безпека монтажу: Verify that the fans remain securely mounted to the radiator or vehicle frame. Tighten any loose fasteners if necessary.
- Стан леза: Inspect fan blades for any cracks or damage. Damaged blades can cause imbalance and reduce efficiency.
Always ensure the vehicle's battery is disconnected before performing any maintenance on the fans.
8. Вирішення проблем
If you encounter issues with your American Volt AV-1210X fans, refer to the following troubleshooting guide:
| проблема | Можлива причина | Рішення |
|---|---|---|
| Fans do not turn on | No power to the fan; Blown fuse; Faulty relay or temperature switch; Loose wiring connection; Damaged fan motor | Check fuse/circuit breaker; Verify 12V power at fan connector; Test relay and temperature switch; Inspect and secure all wiring connections; If motor is damaged, replace the fan. |
| Fans run continuously | Stuck temperature switch; Wiring short circuit | Test or replace temperature switch; Inspect wiring for shorts and repair. |
| Low airflow or unusual noise | Debris obstructing blades; Damaged or unbalanced blades; Motor issue | Clean fan blades and shroud; Inspect blades for damage and replace if necessary; If motor is noisy or weak, replacement may be needed. |
| Engine still overheats | Fans not configured correctly (puller/pusher); Insufficient fan capacity; Other cooling system issues (low coolant, faulty thermostat, clogged radiator) | Verify fan direction (airflow); Ensure fans are operating at full power; Check other components of the cooling system. |
If the problem persists after attempting these solutions, it is recommended to consult a professional automotive technician.
9. Інформація про гарантію
American Volt products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official American Volt webсайт. Зберігайте чек про покупку для будь-яких гарантійних претензій.
10. Підтримка
For technical assistance, troubleshooting, or questions regarding your American Volt AV-1210X fans, please contact American Volt customer support through their official webсайт або контактну інформацію, надану на упаковці вашого продукту.
Ви також можете відвідати American Volt Store on Amazon для отримання додаткової інформації про продукт та ресурсів.
