Vibox V-178 Gaming PC Complete System User Manual

2.1 Розпакування та розміщення

• Акуратно вийміть усі компоненти з упаковки.
• Place the PC tower on a stable, flat surface with adequate ventilation. Ensure no vents are blocked.
• Keep packaging materials for future transport or warranty claims.

2.2 Підключення периферійних пристроїв

Refer to the image below for port identification.

Image 2.1: Top panel connectivity ports of the Vibox V-178 PC, showing USB, audio jacks, and power/reset buttons.

1. Монітор: Connect the 23-inch monitor to the graphics card (Nvidia GeForce RTX 5060 Ti) using either an HDMI or DisplayPort cable. Ensure the cable is securely fastened.
2. Клавіатура та миша: Connect the gaming keyboard and mouse to any available USB ports on the PC. USB 2.0 or USB 3.0 ports can be used.
3. Гарнітура: Plug the headset into the dedicated audio jacks (headphone and microphone) on the front or top panel of the PC.
4. Потужність: Connect the power cable to the PC's power supply unit and then to a wall outlet.
5. Network (Optional Wired): For a wired internet connection, connect an Ethernet cable from your router to the Ethernet port on the back of the PC.
6. Wi-Fi: The PC includes a 300 Mbit/s Wi-Fi adapter. Ensure any external Wi-Fi antennas are attached if provided. Windows 11 will guide you through connecting to a wireless network during initial setup.

2.3 Початкове ввімкнення

• Press the power button on the front or top of the PC.
• Увімкніть монітор.
• Follow the on-screen instructions for the initial Windows 11 setup. This includes setting up your user account, network connection, and privacy settings.

3.1 Windows 11 Overview

Your Vibox V-178 PC comes pre-installed with Windows 11 Home. This operating system offers features optimized for gaming and productivity.

Image 3.1: Key features of Windows 11 Home, highlighting gaming and performance benefits.

• Меню Пуск: Доступ до програм, налаштувань та параметрів живлення.
• Панель завдань: Закріплюйте часто використовувані програми та керуйте відкритими вікнами.
• Віджети: Get quick access to information like news, weather, and calendar.
• Snap Layouts: Easily arrange multiple windows on your screen for efficient multitasking.

3.2 Продуктивність у іграх

The AMD Ryzen 5 5500 processor and Nvidia GeForce RTX 5060 Ti graphics card are designed to deliver excellent gaming experiences.

• Ensure your graphics drivers are up to date for optimal performance. You can download the latest drivers from the Nvidia webсайт.
• Adjust in-game settings to balance visual quality and frame rate according to your preference.
• The 1TB SSD ensures fast game loading times.

3.3 Охолодження системи

The PC case is designed with efficient airflow to maintain optimal temperatures during operation.

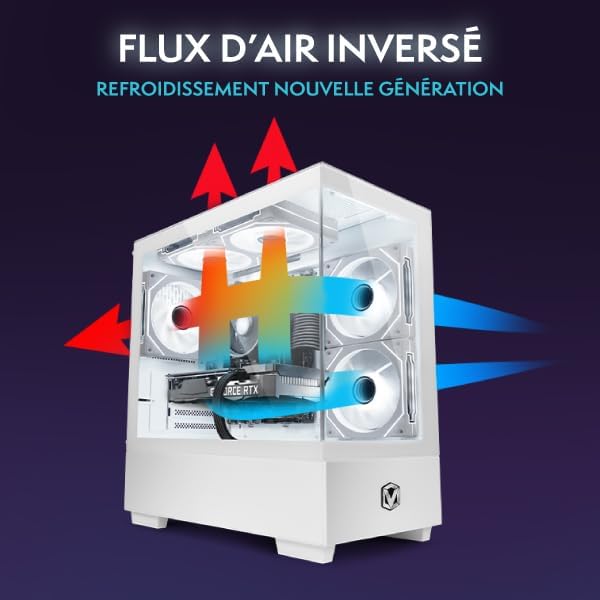

Image 3.2: Airflow diagram illustrating the cooling design of the PC case.

• Ensure the PC is placed in an area with good air circulation.
• Avoid blocking the intake and exhaust vents.
• The system features Hex RVB Infinity 120mm fans for effective cooling.

4.1 Очищення

• Зовні: Використовуйте м'який, damp cloth to clean the exterior of the PC case. Avoid abrasive cleaners.
• Пилові фільтри: Periodically clean the dust filters (if present) to maintain optimal airflow.
• Внутрішні компоненти: For internal cleaning, it is recommended to use compressed air to remove dust from fans and heatsinks. Ensure the PC is powered off and unplugged before performing internal cleaning.

4.2 Оновлення програмного забезпечення

• Оновлення Windows: Regularly check for and install Windows updates to ensure system stability and security. Go to Налаштування > Оновлення Windows.
• Оновлення драйверів: Keep your graphics card drivers updated. Visit the Nvidia website for the latest drivers for your RTX 5060 Ti.

5.1 Немає живлення

• Ensure the power cable is securely connected to both the PC and the wall outlet.
• Check if the power switch on the back of the power supply unit (PSU) is in the 'On' position.
• Спробуйте іншу розетку.

5.2 Немає зображення на моніторі

• Verify that the monitor is powered on and the correct input source is selected.
• Ensure the video cable (HDMI/DisplayPort) is securely connected to both the graphics card on the PC and the monitor.
• Спробуйте підключити монітор до іншого відеовиходу на відеокарті, якщо він є.

5.3 Відсутнє підключення до Інтернету

• Провідний: Check if the Ethernet cable is properly connected to both the PC and the router. Verify router functionality.
• Бездротовий: Ensure Wi-Fi is enabled in Windows settings. Check if the Wi-Fi adapter is recognized in Device Manager. Re-enter your Wi-Fi password if necessary.

5.4 Периферійні пристрої не реагують

• Try connecting the keyboard, mouse, or headset to different USB/audio ports.
• Ensure drivers for specialized gaming peripherals are installed.
