ROCKBROS RHL 3000 Bike Headlight User Manual

1. Вступ

The ROCKBROS RHL 3000 Bike Headlight is a high-performance lighting solution designed for enhanced visibility and safety during nighttime cycling. Featuring a powerful 10000mAh battery, it delivers an impressive 3000 lumens of ultra-bright illumination, ensuring clear vision on your rides. This headlight is built with durable aluminum alloy and boasts an IPX6 waterproof rating, making it suitable for various weather conditions. Additionally, its versatile design allows it to function as a portable power bank, providing convenience on the go.

Оверview of the ROCKBROS Headlight's primary features, including its high brightness, power bank capability, waterproof design, wide floodlight, memory function for settings, low battery reminder, and USB charging.

2. Що в коробці

Upon opening your ROCKBROS RHL 3000 Bike Headlight package, you should find the following components:

• ROCKBROS RHL 3000 Bike Headlight Unit
• Handlebar Mounting Buckle
• Hex Wrench for Installation
• Зарядний кабель USB-C
• Посібник користувача

3. Технічні характеристики

The headlight features a high transmittance acrylic lens with a cut-off line design to prevent glare for oncoming traffic, while also providing a large flood angle for broad illumination.

4. Налаштування та встановлення

Follow these steps to properly install your ROCKBROS RHL 3000 Bike Headlight:

1. Attach the Buckle: Use the included hex wrench to securely attach the mounting buckle to your bicycle handlebar. Ensure it is tightened sufficiently to prevent movement during rides.
2. Align and Rotate: Once the buckle is in place, align the base of the lamp with the buckle. Rotate the bike front light onto the buckle until it clicks securely into position.
3. Initial Unlock: Before first use, the light may be in a locked state. The red light at the tail will flash. To unlock, press and hold both the high beam and low beam buttons simultaneously for 5-10 seconds until the red light at the rear turns green. This indicates the light is ready for operation.

Installation is straightforward: attach the buckle mount to your handlebar using the hex wrench, then align and rotate the bike light onto the buckle until it is securely in place.

This image illustrates the initial unlocking procedure for the bike light. Before first use, press and hold both the high and low beam buttons simultaneously for 5-10 seconds until the red indicator light at the rear turns green, indicating the light is unlocked and ready for use.

5. Інструкція з експлуатації

Увімкнення/вимкнення живлення

To turn the light on or off, press and hold either the high beam or low beam button for approximately 1.5 seconds.

Налаштування режимів яскравості

The RHL 3000 offers six distinct lighting modes to suit various riding conditions:

• Low Beam Modes (Single Press): Cycle through 1500 Lumen (A Gear), 800 Lumen (B Gear), 400 Lumen (C Gear), and 200 Lumen (D Gear) by single-pressing the low beam button.
• High Beam Modes (Single Press): Cycle through 800 Lumen (E Gear) and 1500 Lumen (F Gear) by single-pressing the high beam button.
• Combined Beam: When both low beam and high beam are activated simultaneously, the light can reach its maximum output of 3000 lumens.
• УВАГА File (Flashing): Double-press either button to activate the warning file mode, where the far and near lights flash alternately.

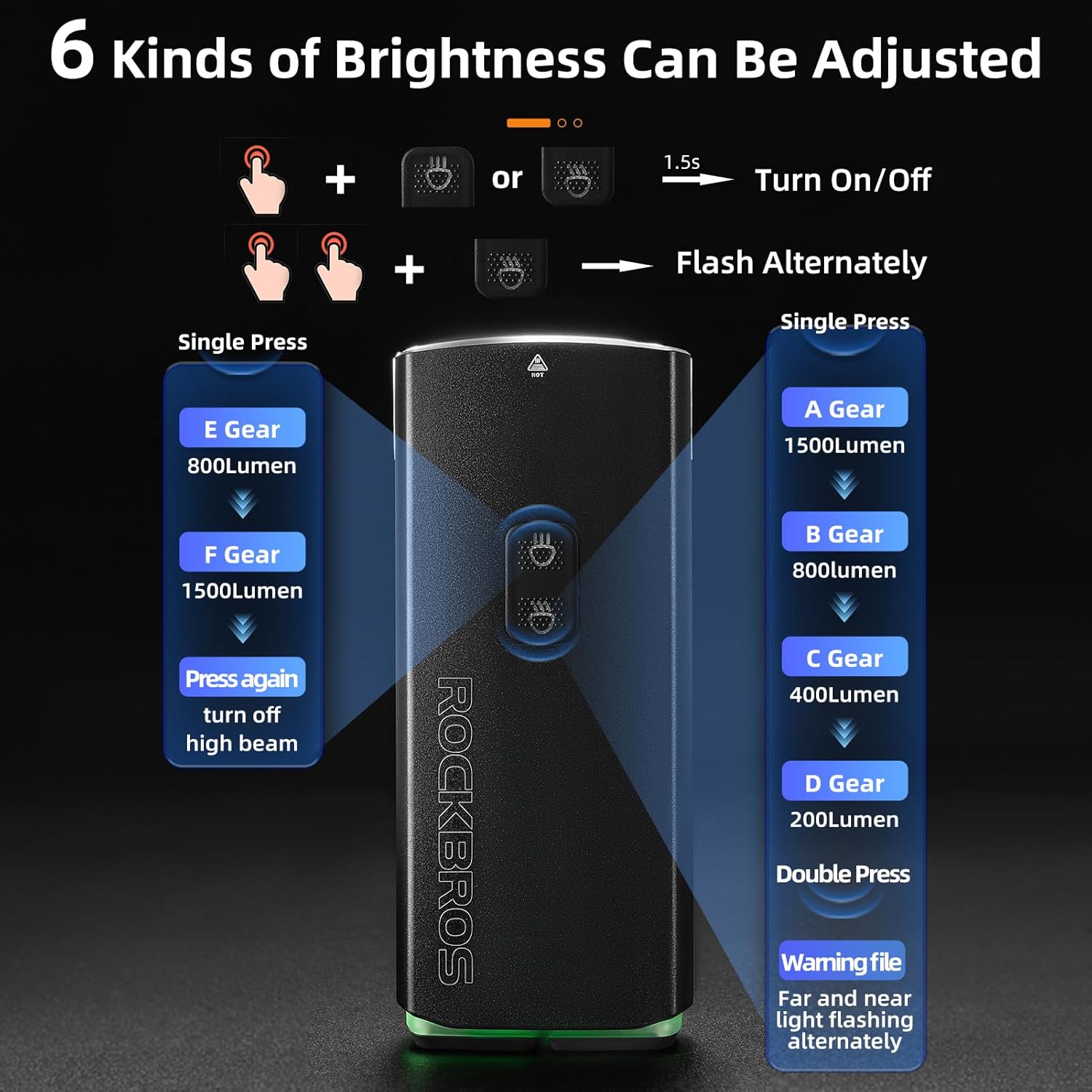

This diagram details the six available brightness modes: Low Beam (A: 1500 Lumen, B: 800 Lumen, C: 400 Lumen, D: 200 Lumen) and High Beam (E: 800 Lumen, F: 1500 Lumen). A double press activates the warning file (alternating far and near light flashing). Pressing and holding for 1.5 seconds turns the light on or off.

The ROCKBROS RHL 3000 Bike Headlight mounted on a bicycle, demonstrating its impressive 3000 lumen output, providing extensive and bright coverage for nighttime cycling.

This image illustrates the various beam patterns and their coverage at different lumen outputs (200, 400, 800, 1500 lumens for low beam and 800, 1500 lumens for high beam), showcasing the light's ability to illuminate the path effectively for safe night riding.

Зарядка фари

The RHL 3000 is equipped with a USB Type-C charging port for convenient recharging. Connect the provided USB-C cable to the light and a compatible power source (e.g., laptop, wall adapter, power bank). The indicator lights will show the charging status:

• Червоне світло: Триває зарядка.
• Зелене світло: Повністю заряджений.

A red light at the tail will flash when the battery power falls below 15%, reminding you to charge.

The bike light supports USB Type-C charging, allowing convenient recharging from various sources such as laptops, power banks, or wall adapters. Red lights indicate charging, while green lights indicate a full charge.

Функціональність портативного зарядного пристрою

The RHL 3000 can also serve as a portable power bank. Use the output interface at the tail of the light to charge your mobile devices, such as smartphones, when needed.

The bike light features a 10000mAh battery and can function as a portable power bank, allowing you to charge other devices like smartphones via its USB-C output port.

Intelligent Temperature Control and Battery Life

The headlight incorporates intelligent temperature control to ensure durability. If the lamp bead temperature reaches 158°F (70°C), the light will automatically shift to a lower setting to prevent overheating. Additionally, low voltage protection restricts output to 400LM/200LM when power is below 15% to protect the battery.

This graphic presents the intelligent temperature control mechanism, which adjusts output to protect the lamp, and a comprehensive table outlining the expected battery life in hours for various combinations of low and high beam settings.

The ROCKBROS RHL 3000 Bike Headlight, showcasing its powerful illumination and compact form factor, with a phone displaying battery charge percentage.

6. Технічне обслуговування

To ensure the longevity and optimal performance of your ROCKBROS RHL 3000 Bike Headlight, follow these maintenance guidelines:

• Прибирання: Протріть корпус світильника та лінзу м’якою губкоюamp cloth. Avoid using abrasive cleaners or solvents that could damage the surface or lens.
• Водонепроникність: The light is IPX6 waterproof, meaning it is protected against powerful water jets. While it can withstand rain and splashes, avoid submerging it in water for extended periods. Ensure the USB-C port cover is securely closed when not charging to maintain water resistance.
• Догляд за акумулятором: For best battery health, avoid completely draining the battery frequently. Recharge the light regularly, especially if it will be stored for an extended period. Store in a cool, dry place.
• Зберігання: When not in use, store the headlight in a dry environment away from direct sunlight and extreme temperatures.

The ROCKBROS RHL 3000 Bike Headlight is designed with an IPX6 waterproof rating, ensuring reliable performance in various weather conditions, including rain and splashes.

7. Вирішення проблем

If you encounter issues with your ROCKBROS RHL 3000 Bike Headlight, refer to the following common problems and solutions:

• Світло не вмикається:
  • Ensure the light is unlocked. If the red light at the tail is flashing, press and hold both buttons simultaneously for 5-10 seconds to unlock.
  • Check the battery level. If the battery is critically low, the light may not turn on or may only operate at a very low setting. Charge the light fully.
  • Ensure the power button is pressed and held for 1.5 seconds to activate.
• Light is not charging:
  • Verify that the USB-C cable is securely connected to both the light and the power source.
  • Спробуйте інший кабель USB-C або адаптер живлення, щоб виключити несправні аксесуари.
  • Ensure the power source is active and providing sufficient power.
• Світловий потік тьмяний або нерівномірний:
  • Check the battery level. Low battery can result in reduced brightness or automatic mode adjustments due to low voltagе захист.
  • The intelligent temperature control may reduce brightness if the light becomes too hot. Allow the light to cool down.
  • Переконайтеся, що об'єктив чистий і не має бруду чи перешкод.

8. Гарантія та підтримка

ROCKBROS products are manufactured to high quality standards. For information regarding warranty coverage, returns, or technical support, please refer to the warranty card included with your product or visit the official ROCKBROS website. You may also contact ROCKBROS customer service directly for assistance with any product-related inquiries.

Beyond cycling, the versatile ROCKBROS RHL 3000 Bike Headlight can be used for various outdoor activities such as hiking, reading in low light, and illuminating a campсайт.
