Walfront QPM11 Normally Open Pressure Switch Instruction Manual

1. Вступ

The Walfront QPM11 Normally Open Pressure Switch is designed for precise pressure monitoring and control in air-based systems. This device features a G1/8" adjustable bearing for installation and operates within a pressure range of 0.02 to 0.1 MPa. It is built to function reliably in temperatures from -5°C to 60°C, offering a high insulation voltage of 1500V and an IP54 rating for protection against dust and splashing water. With a maximum pulse rate of 200 cycles per minute and a lifespan of 1,000,000 cycles, the QPM11 provides consistent performance for industrial and scientific applications.

2. Продукт закінчивсяview

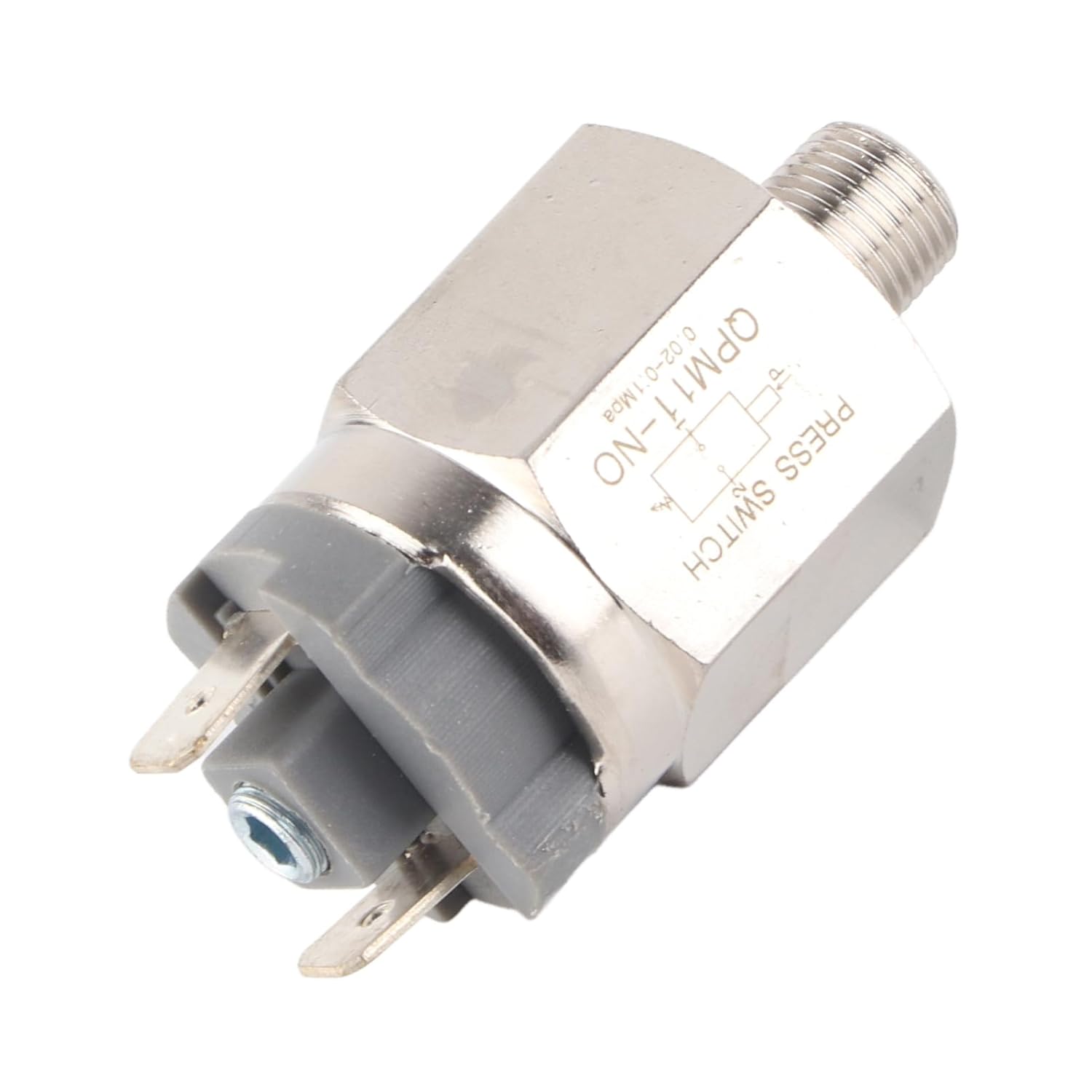

малюнок 1: Загалом view of the pressure switch, showing its compact design and main components.

малюнок 2: сторона view of the pressure switch, highlighting the G1/8" threaded connection for system integration.

малюнок 3: Крупним планом view of the electrical terminals, where control circuit wiring is connected.

малюнок 4: The pressure switch featuring a black protective cap, potentially covering the pressure adjustment mechanism.

3. Налаштування та встановлення

Proper installation is crucial for the safe and accurate operation of the pressure switch.

1. Безпека перш за все: Before installation, ensure that the power supply to the system is disconnected and the pressure in the air line is fully released.
2. Монтаж: Securely install the pressure switch into the G1/8" threaded port of your air system. Use appropriate sealing tape or compound to ensure a leak-free connection.
3. Електричне підключення: Connect the electrical terminals of the switch to your control circuit. This is a Normally Open (NO) switch, meaning the circuit is open when pressure is below the set point and closes when pressure rises above it. Ensure connections are made according to your system's wiring diagram and compatible with the specified operating voltages (AC220V, 48V/AC, DC).
4. Регулювання тиску: If your model includes an adjustable bearing, carefully rotate the adjustment mechanism to set the desired pressure threshold. Refer to any markings on the device for guidance.
5. Перевірка: After installation, slowly restore pressure to the system and power to the control circuit. Observe the switch's operation to confirm it activates and deactivates at the intended pressure levels.

4. Інструкція з експлуатації

The Walfront QPM11 is a Normally Open (NO) pressure switch.

• Нормальний стан: When the air pressure in the system is below the set threshold, the switch contacts remain open, preventing current flow through the connected circuit.
• активація: As the air pressure rises and exceeds the pre-set threshold, the internal mechanism of the switch actuates, causing the contacts to close. This completes the electrical circuit, triggering the connected device or signal.
• Дезактивація: When the air pressure drops below the set threshold, the switch contacts return to their open state, breaking the electrical circuit.

This functionality makes it suitable for applications requiring a signal or action when a specific pressure level is reached or exceeded.

5. Технічне обслуговування

Regular maintenance helps ensure the longevity and reliability of your pressure switch.

• Періодичний огляд: Visually inspect the switch and its connections regularly for any signs of physical damage, corrosion, or loose wiring.
• Чистота: Keep the switch free from dust, dirt, and debris. A clean, dry cloth can be used for external cleaning. Avoid using harsh chemicals or abrasive materials.
• Перевірка на витоки: Periodically check the threaded connection for any air leaks, which can affect the accuracy of pressure readings.
• Умови навколишнього середовища: Забезпечте дотримання заданих температурних та вологісних умов у робочому середовищі, щоб запобігти передчасному зносу або несправності.

6. Вирішення проблем

If the pressure switch is not functioning as expected, consider the following troubleshooting steps:

• Перемикач не активується:
  • Verify that the system pressure is reaching and exceeding the switch's set point.
  • Check all electrical connections for proper wiring and continuity.
  • Ensure the power supply to the control circuit is active and within the specified voltagе діапазон.
  • If adjustable, confirm the pressure threshold is set correctly.
• Switch Not Deactivating:
  • Confirm that the system pressure is dropping below the switch's set point.
  • Inspect the switch mechanism for any obstructions or sticking.
  • Check for any residual pressure in the line that might be preventing the switch from resetting.
• Нестабільна робота:
  • Check for significant pressure fluctuations or pulsations in the air system.
  • Ensure the switch is securely mounted and not subject to excessive vibration.
  • Verify that environmental conditions (temperature, humidity) are within the specified operating range.

If issues persist after these checks, contact qualified personnel for further assistance.

7. Технічні характеристики
