Speedmaster 1-415-003-01 Serpentine Engine Pulley Kit Installation Manual

1. Вступ

This manual provides comprehensive instructions for the proper installation, operation, and maintenance of your Speedmaster 1-415-003-01 Serpentine Engine Pulley Kit. This kit is designed for Ford Small Block (SB) 289, 302, and 351w engines. Please read all instructions carefully before beginning installation to ensure correct assembly and safe operation. Professional installation is recommended.

Важливе зауваження щодо безпеки: This product is intended for racing applications only and is not for street use. Always wear appropriate personal protective equipment (PPE) during installation and maintenance. Disconnect the vehicle's battery before starting any work on the engine.

2. Продукт закінчивсяview і компоненти

The Speedmaster 1-415-003-01 Serpentine Engine Pulley Kit includes a complete set of polished billet aluminum pulleys and necessary hardware for a serpentine belt system conversion. The kit is designed to provide high water flow and efficient power transfer.

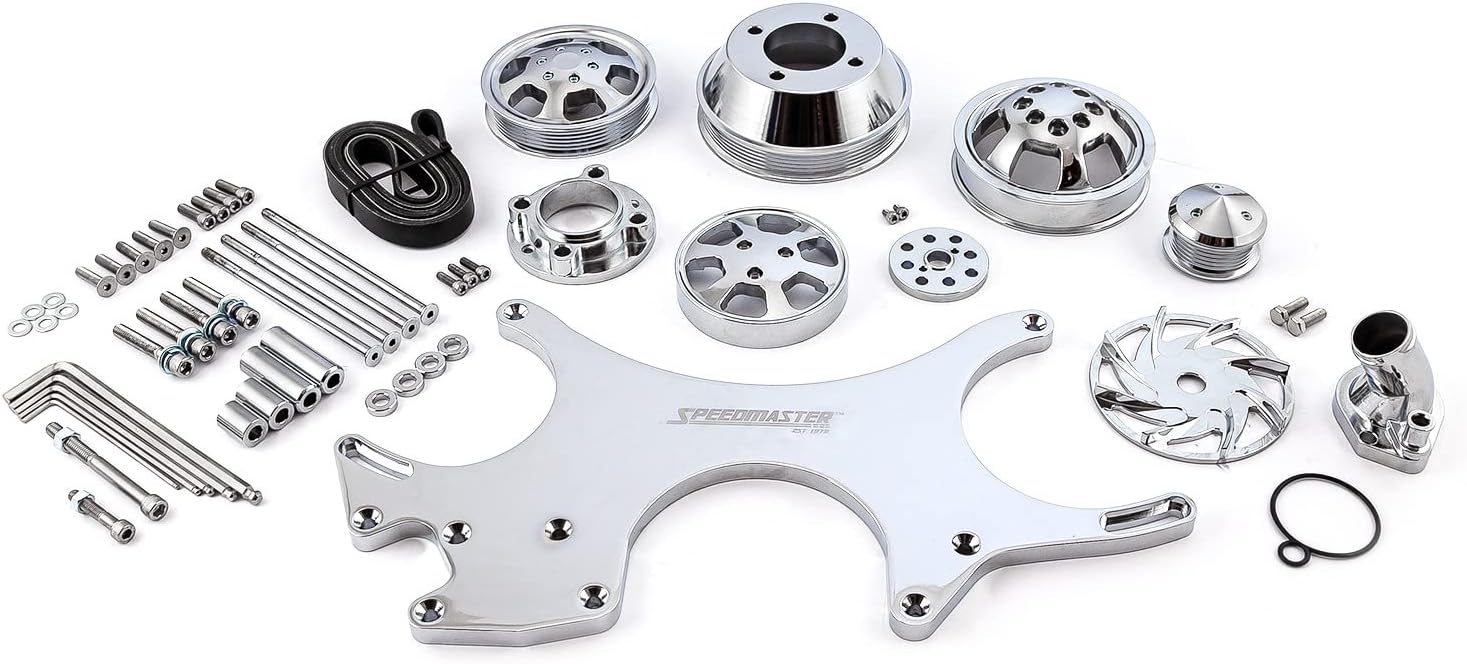

малюнок 2.1: All components of the Speedmaster 1-415-003-01 Serpentine Engine Pulley Kit, including various pulleys, brackets, and hardware.

Вміст набору:

• Crankshaft Pulley: Serpentine style, billet aluminum, polished finish.
• Water Pump Pulley: Serpentine style, billet aluminum, polished finish, high water flow ratio.
• Power Steering Pulley: Serpentine style, billet aluminum, polished finish, bolt-on adapter.
• Alternator Pulley: Serpentine style, billet aluminum, polished finish, includes alternator fan and nose cover.
• Монтажні кронштейни: Billet aluminum, polished finish, for alternator and power steering.
• Обладнання: All necessary bolts, washers, and spacers for installation.
• пояс: Serpentine belt (as pictured).

малюнок 2.2: Детальний view of the polished billet aluminum main mounting bracket.

3. Технічні характеристики

4. Налаштування та встановлення

Installation of this serpentine pulley kit requires mechanical knowledge and specialized tools. If you are not confident in your ability to perform this installation, it is highly recommended to seek assistance from a qualified automotive technician.

4.1 Перевірки перед інсталяцією

• Verify all components listed in Section 2 are present and undamaged.
• Ensure the engine is cool and the vehicle's battery is disconnected.
• Refer to your vehicle's service manual for specific procedures related to accessory removal and installation.
• Clean all mounting surfaces on the engine block and accessories to ensure proper fitment and alignment.

4.2 General Installation Steps (Consult Vehicle Specific Manual for Details)

1. Remove the existing V-belt or serpentine system components, including pulleys, brackets, and the belt.
2. Install the main mounting bracket(s) to the engine block using the provided hardware. Ensure all bolts are torqued to the manufacturer's specifications (refer to your engine's service manual).
3. Mount the accessories (alternator, power steering pump, water pump) to the new brackets. Do not fully tighten bolts yet, allow for minor adjustments.
4. Install the new pulleys onto the crankshaft, water pump, power steering pump, and alternator. Ensure proper seating and alignment.
5. Route the serpentine belt according to the diagram provided with your kit or vehicle service manual. Ensure the belt is correctly seated in all pulley grooves.
6. Adjust the tensioner (if applicable) or accessory positions to achieve the correct belt tension. A properly tensioned belt should have minimal deflection.
7. Double-check all fasteners for tightness.
8. Знову підключіть акумулятор автомобіля.
9. Start the engine and check for proper belt operation, alignment, and any unusual noises. Allow the engine to reach operating temperature and re-check belt tension after a short period of operation.

5. Operation and Post-Installation Checks

Once the Speedmaster serpentine pulley kit is installed, proper operation relies on correct belt tension and alignment. After initial installation and after the first few hours of engine operation, it is crucial to perform the following checks:

• Натяг ременя: Verify the serpentine belt tension. An overly tight belt can cause premature bearing wear on accessories, while a loose belt can slip, leading to reduced accessory performance and squealing.
• Вирівнювання шківа: Visually inspect all pulleys to ensure they are perfectly aligned. Misalignment can cause excessive belt wear, noise, and potential belt ejection.
• Перевірка шуму: Listen for any unusual noises such as squealing, grinding, or rattling, which could indicate improper installation, loose components, or a faulty belt.
• Витік рідини: Check for any fluid leaks around the water pump or power steering pump connections that may have been disturbed during installation.

This kit is designed for optimal performance in racing conditions. Regular monitoring of the belt and pulleys is essential for sustained performance.

6. Технічне обслуговування

Regular maintenance ensures the longevity and optimal performance of your Speedmaster Serpentine Engine Pulley Kit. Perform these checks periodically, especially before and after racing events:

• Перевірка ременя: Inspect the serpentine belt for cracks, fraying, glazing, or missing ribs. Replace the belt if any signs of wear are present.
• Огляд шківа: Check all pulleys for signs of wear, damage, or excessive runout. Ensure they spin freely without binding or excessive play.
• Момент затягування кріплення: Periodically re-check the torque on all mounting bolts for the brackets and accessories. Vibrations from engine operation can sometimes loosen fasteners.
• Чистота: Keep the pulleys and belt free from dirt, oil, and debris. Contaminants can reduce belt grip and accelerate wear.
• Шум підшипника: Listen for any unusual bearing noises from the water pump, alternator, or power steering pump, which could indicate impending failure.

7. Вирішення проблем

This section addresses common issues that may arise with your serpentine pulley system. Always ensure safety precautions are followed before attempting any troubleshooting.

8. Гарантія та підтримка

8.1 Інформація про гарантію

This Speedmaster product is covered by a 12-місячна обмежена міжнародна гарантія. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, misuse, abuse, accidents, or unauthorized modifications. For specific warranty terms and conditions, please refer to the official Speedmaster warranty policy or contact customer support.

8.2 Підтримка клієнтів

If you have any questions regarding the installation, operation, or maintenance of your Speedmaster Serpentine Engine Pulley Kit, please contact Speedmaster customer support. For the most up-to-date contact information, please visit the official Speedmaster webсайт або зверніться до документації щодо придбання.

Інтернет-ресурси: www.speedmaster79.com (Вихampпосилання, замініть на фактичне, якщо є)
