TakTark BM802-EU 3.2'' Video Baby Monitor Instruction Manual

вступ

This manual provides detailed instructions for the safe and effective use of your TakTark BM802-EU 3.2'' Video Baby Monitor. Please read this manual thoroughly before operating the device and retain it for future reference.

The TakTark BM802-EU baby monitor offers essential features for monitoring your baby, including a 3.2-inch display, two-way audio communication, VOX sound activation, automatic night vision, remote pan-tilt camera control, built-in lullabies, and temperature monitoring. It operates on a secure 2.4 GHz wireless frequency, ensuring privacy and a stable connection without the need for Wi-Fi or a smartphone application.

Важлива інформація з безпеки

УВАГА:

• This product is designed to assist in monitoring your baby. It is not a substitute for responsible adult supervision.
• Keep all cords out of reach of children. Strangulation hazard.
• Do not place the baby unit (camera) or parent unit (monitor) in or near water.
• Use only the power adapters provided. Using unauthorized adapters may damage the device and void the warranty.
• The baby unit (camera) must always be connected to a power source. The parent unit (monitor) has a rechargeable battery but should be fully charged before first use.
• Ensure proper ventilation for both units. Do not cover them with blankets or other materials.
• Avoid placing the camera unit where direct sunlight or strong artificial light can shine into the lens.
• The operating temperature range for this device is 0°C to 40°C (32°F to 104°F).

Вміст упаковки

Перевірте, чи всі перелічені нижче предмети входять до вашої упаковки:

• Parent Unit (Monitor) x 1
• Дитячий блок (камера) x 1
• Power Adapter x 2 (one for each unit)
• Посібник користувача x 1

Продукт закінченийview

Батьківський блок (монітор)

The parent unit features a 3.2-inch LCD screen for clear video monitoring. It includes controls for various functions such as volume, brightness, pan/tilt, two-way talk, and menu navigation.

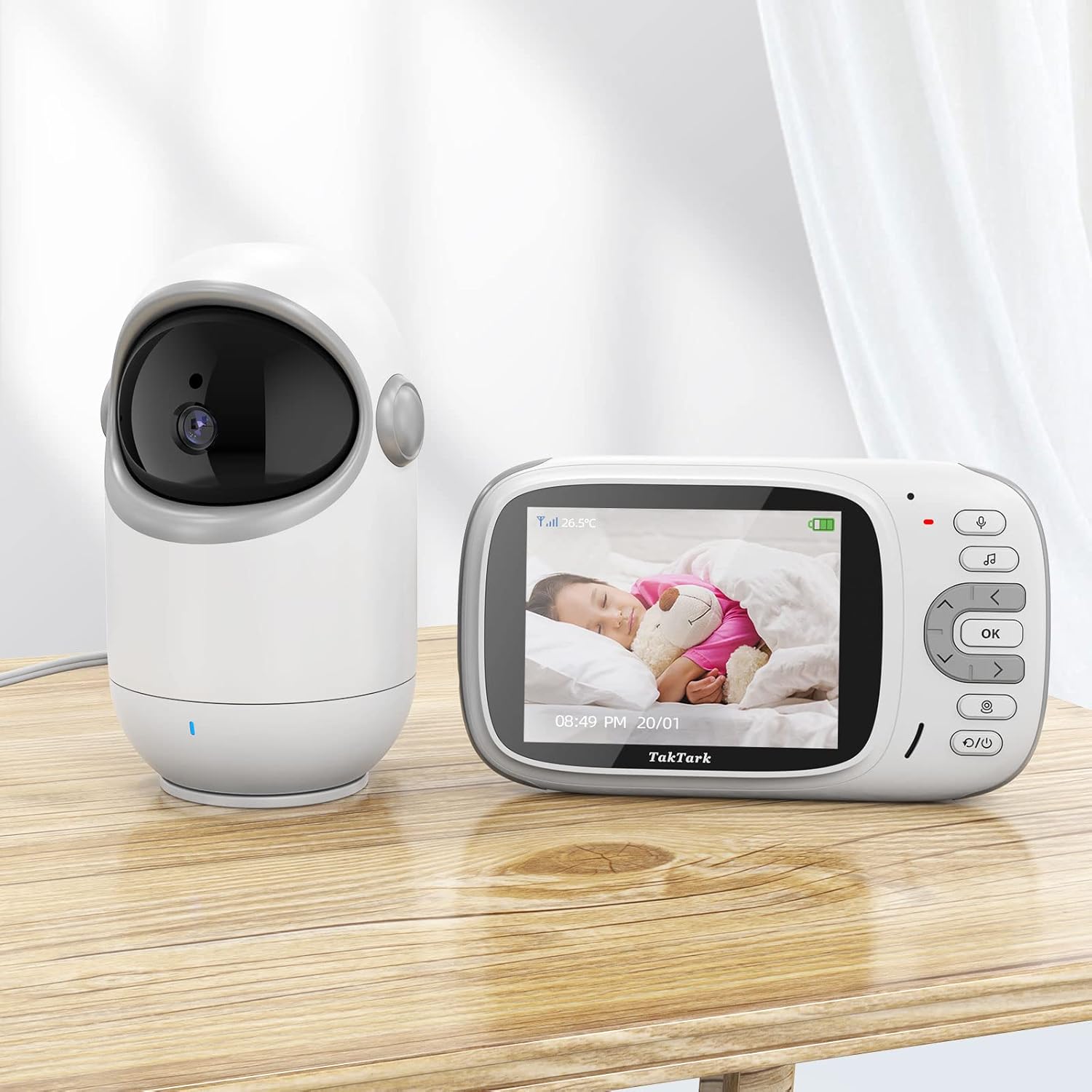

Image: The TakTark BM802-EU parent unit (monitor) and baby unit (camera) side-by-side. The monitor displays a sleeping baby, and the camera is a white, rounded device with a dark lens.

• РК-екран: 3.2-inch display for live video feed.
• Кнопка живлення: Вмикає/вимикає пристрій.
• Кнопка меню: Доступ до налаштувань та опцій.
• Кнопки навігації: Used for menu navigation and camera pan/tilt control.
• Кнопка розмови: Activates two-way communication.
• Кнопки гучності: Регулює рівень звуку.
• Кнопка VOX: Toggles VOX mode on/off.
• Мікрофон: For two-way talk function.
• Доповідач: For audio output from the baby unit.
• Порт зарядки: Connects to the power adapter for charging.

Дитячий блок (камера)

The baby unit is equipped with a camera that can pan 300° and tilt 50°, infrared LEDs for night vision, a microphone, and a speaker. It also includes a temperature sensor.

Image: The TakTark BM802-EU baby unit (camera) showing its 300-degree pan and 50-degree tilt capabilities, with a monitor displaying a baby in the background.

• Об'єктив камери: Captures video feed.
• Інфрачервоні світлодіоди: For automatic night vision.
• Мікрофон: Picks up sounds from the baby's room.
• Доповідач: For playing lullabies and two-way talk audio.
• Датчик температури: Monitors room temperature.
• Порт живлення: Підключається до адаптера живлення.
• Кнопка пари: Used for pairing the units if connection is lost.

Посібник із налаштування

1. Заряджання батьківського блоку: Before first use, fully charge the parent unit for approximately 8 hours. Connect one power adapter to the parent unit's charging port and plug it into a power outlet. The battery icon on the screen will indicate charging status.
2. Power the Baby Unit: Connect the second power adapter to the baby unit's power port and plug it into a power outlet. The baby unit does not contain a battery and must remain plugged in during operation.
3. Position the Baby Unit: Place the baby unit (camera) in a secure location in your baby's room, at least 1 meter (3 feet) away from the baby's crib or bed. Ensure it has a clear view of your baby. Avoid placing it too close to walls or objects that might obstruct the view або звук.
4. Увімкнення: Натисніть і утримуйте потужність button on the parent unit to turn it on. The parent unit will automatically search for and connect to the baby unit. Once connected, you will see the live video feed on the screen.
5. Сполучення (за потреби): The units are pre-paired from the factory. If the connection is lost or you are setting up a new unit, press the "Pair" button on the back of the baby unit, then navigate to the pairing option in the parent unit's menu and follow the on-screen instructions.

Інструкція з експлуатації

VOX Mode (Voice Operated Exchange)

VOX mode conserves battery life by turning off the parent unit's screen when no sound is detected from the baby unit. The screen will automatically turn on when sound (e.g., baby crying) is detected.

Image: A crying baby next to the monitor, which displays an alert icon and the crying baby, illustrating the VOX sound activation feature.

• Activate/Deactivate VOX: Натисніть VOX button on the parent unit.
• Adjust VOX Sensitivity: In the menu, select VOX settings to adjust the sensitivity level. Higher sensitivity detects softer sounds.

Двосторонній зв'язок

This feature allows you to speak to your baby through the baby unit's speaker.

Image: A hand holding the parent unit, showing a baby on screen, with sound waves indicating two-way communication between the parent unit and a happy baby on the floor.

• To Talk: Натисніть і утримуйте говорити button on the parent unit. Speak clearly into the microphone. Release the button to hear your baby again.

Автоматичне нічне бачення

The baby unit automatically activates infrared night vision in low-light conditions, providing a clear black-and-white image of your baby.

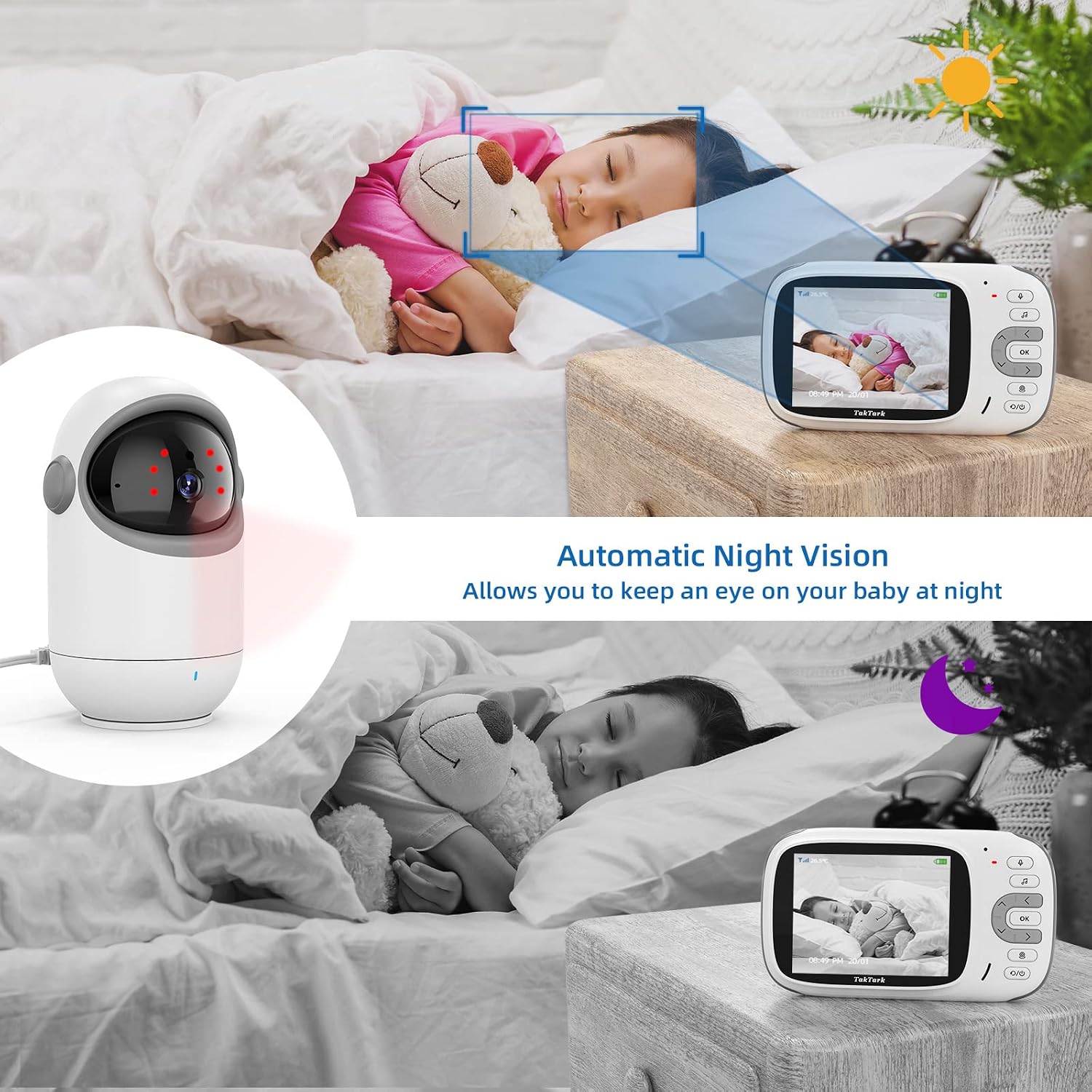

Image: A split image showing a child sleeping in daylight (color) and the same child sleeping in darkness (black and white), with the camera unit and monitor displaying the respective views, highlighting automatic night vision.

Колискові пісні

Play soothing lullabies to help your baby fall asleep.

Image: A happy baby on a bed with musical notes floating around, and the camera unit with a thermometer icon, indicating built-in lullabies and temperature monitoring.

• To Play Lullabies: Access the menu and select the Lullaby option. Choose a melody and adjust the volume.

Моніторинг температури

The baby unit continuously monitors the room temperature and displays it on the parent unit's screen.

Image: The parent unit displaying a sleeping baby and the room temperature (26.5°C), with the baby unit and a thermometer icon in the background, illustrating temperature monitoring.

• Індикація температури: The current room temperature is shown on the parent unit's screen.
• Попередження про температуру: You can set high and low temperature alerts in the menu.

Технічне обслуговування

• Прибирання: Clean the units with a dry, soft cloth. Do not use cleaning sprays or liquid cleaners.
• Battery Care (Parent Unit): To prolong battery life, avoid fully discharging the parent unit frequently. Charge it regularly. If storing the unit for an extended period, charge it fully every three months.
• Догляд за лінзами: Gently wipe the camera lens with a soft, lint-free cloth if it becomes dirty.
• Зберігання: Зберігайте монітор у прохолодному, сухому місці, подалі від прямих сонячних променів та екстремальних температур.

Усунення несправностей

Технічні характеристики

Гарантія та підтримка

TakTark products are designed for reliability and performance. In the event of any issues, please refer to the following information:
