1. Вступ
Thank you for choosing the Klea Ahdet Thermostatic Shower Panel. This manual provides essential information for the safe installation, operation, and maintenance of your new shower system. Please read these instructions carefully before installation and keep them for future reference. Proper installation and care will ensure optimal performance and longevity of your product.
2. Інформація про безпеку
ПОПЕРЕДЖЕННЯ: Недотримання цих інструкцій з безпеки може призвести до травмування або пошкодження майна.
- Ensure all plumbing work is performed by a qualified professional and complies with local building and plumbing codes.
- Перед початком будь-яких робіт з встановлення або технічного обслуговування перекрийте головне водопостачання.
- Verify that water pressure is within the recommended range for optimal operation (typically 1.5 to 5 bar).
- Do not use abrasive cleaners or harsh chemicals on the shower panel, as this may damage the finish.
- Protect the product from freezing temperatures if installed in an unheated area.
3. Вміст упаковки
Please check that all components are present and undamaged before installation. If any parts are missing or damaged, contact Klea customer support immediately.
- Klea Ahdet Thermostatic Shower Panel
- Монтажні кронштейни та обладнання
- Hand Shower with Hose
- Посібник з установки (цей документ)
- Sealing Washers and Gaskets
4. Продукт закінчивсяview
The Klea Ahdet Thermostatic Shower Panel is a modern and functional addition to your bathroom, featuring a sleek matte black stainless steel design. It integrates multiple showering functions for a complete and customizable experience.

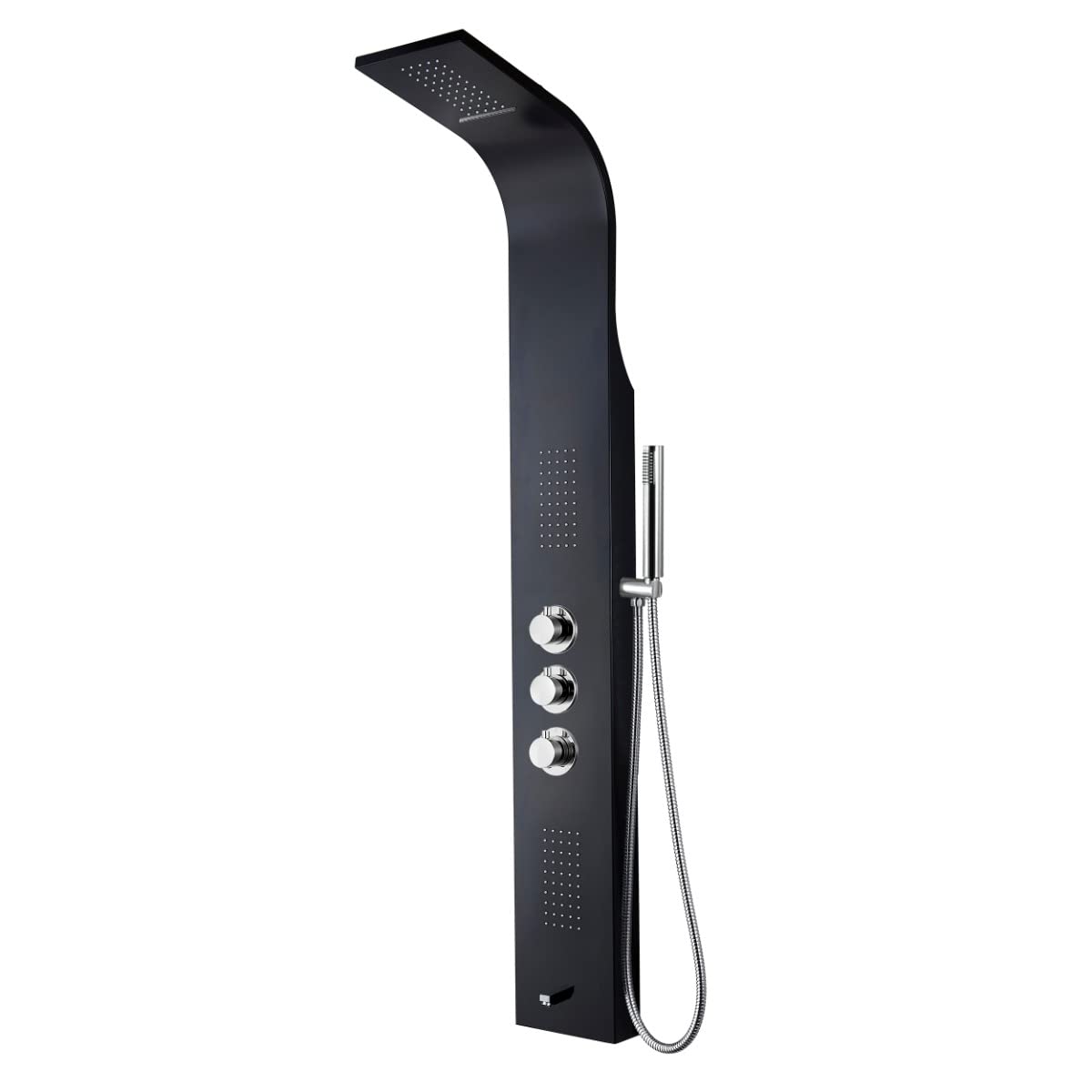

Image 1: Klea Ahdet Thermostatic Shower Panel. This image displays the full shower panel, highlighting its matte black finish and integrated components such as the overhead rain shower, hand shower, and control knobs. The panel is designed for wall mounting.
Ключові особливості:
- Термостатичний контроль: Maintains a constant water temperature, preventing sudden changes.
- Кілька функцій: Typically includes an overhead rain shower, a flexible hand shower, and integrated body jets.
- Міцна конструкція: Made from high-quality stainless steel with a matte black finish.
- Робота з однією ручкою: For easy control of water flow and function selection.
5. Установка/Налаштування
This section provides general guidelines for installing your shower panel. Specific details may vary based on your bathroom configuration. Professional installation is highly recommended.
5.1 Перевірки перед інсталяцією
- Ensure hot and cold water supply lines are accessible and correctly marked.
- Confirm that the wall surface is strong enough to support the weight of the shower panel and water.
- Gather necessary tools: drill, level, measuring tape, wrench, screwdriver, sealant tape.
5.2 Настінне кріплення
- Перекрийте основне водопостачання.
- Determine the desired mounting height for the shower panel. Mark the positions for the mounting brackets on the wall.
- Просвердліть отвори в позначених місцях і вставте дюбелі.
- Закріпіть монтажні кронштейни до стіни за допомогою наданих гвинтів.
5.3 Підключення до водопостачання
- Connect the hot and cold water supply hoses from the wall to the corresponding inlets on the back of the shower panel. Use sealant tape on all threaded connections to prevent leaks.
- Ensure connections are tight but do not overtighten.
- Carefully hang the shower panel onto the secured mounting brackets.
5.4 Тестування
- Повільно вмикайте основне водопостачання.
- Check all connections for leaks. If leaks are present, turn off the water, tighten connections, and re-test.
- Operate all functions (rain shower, hand shower, body jets) to flush out any debris and ensure proper operation.
- Verify that the thermostatic control maintains a consistent temperature.
6. Операція
The Klea Ahdet shower panel is designed for intuitive use with its single-handle control system.
6.1 Контроль температури
- The thermostatic knob (usually on the lower part of the panel) allows you to set your desired water temperature.
- Rotate the knob to adjust the temperature. Most thermostatic mixers have a safety stop at 38°C (100°F) to prevent scalding. Press the override button (if present) to select higher temperatures.
6.2 Function Selection and Flow Control
- The diverter knob (usually above the temperature knob) controls the water flow and selects the desired shower function (e.g., rain shower, hand shower, body jets).
- Rotate the knob to switch between functions. The flow rate can often be adjusted by how far the knob is turned or by a separate flow control handle.
No relevant official product videos from the seller are available for embedding at this time.
7. Технічне обслуговування
Regular cleaning and maintenance will help preserve the appearance and functionality of your Klea Ahdet shower panel.
7.1 Очищення поверхні
- Clean the matte black stainless steel surface with a soft cloth and mild soap or a non-abrasive bathroom cleaner.
- Ретельно промийте чистою водою та висушіть м’якою тканиною, щоб запобігти появі плям від води.
- Avoid using abrasive sponges, scouring pads, or cleaners containing ammonia, bleach, or alcohol, as these can damage the finish.
7.2 Очищення форсунок
- The silicone nozzles on the rain shower and hand shower are designed for easy cleaning. Simply rub them with your finger to dislodge any limescale buildup.
- For more stubborn limescale, use a descaling solution specifically designed for bathroom fixtures, following the product's instructions.
8. Вирішення проблем
If you encounter any issues with your shower panel, refer to the common problems and solutions below. If the problem persists, contact a qualified plumber or Klea customer support.
| проблема | Можлива причина | Рішення |
|---|---|---|
| Немає потоку води або низький тиск | Main water supply off; clogged filters; low house water pressure. | Check main water supply; clean inlet filters; consult a plumber about house water pressure. |
| Температура води коливається | Thermostatic cartridge issue; insufficient hot water supply; pressure imbalance. | Ensure adequate hot water supply; check for pressure fluctuations in other fixtures; contact a plumber to inspect the thermostatic cartridge. |
| Витоки з з'єднань | Loose connections; worn out washers/gaskets; improper sealant tape application. | Turn off water supply, tighten connections, replace washers/gaskets if necessary, reapply sealant tape. |
| Hand shower or body jets clogged | Накопичення вапняного нальоту в форсунках. | Rub silicone nozzles to dislodge limescale; use a descaling solution if needed. |
9. Технічні характеристики
The following specifications apply to the Klea Ahdet Thermostatic Shower Panel:
- Бренд: Klea
- Номер моделі: Ahdet
- матеріал: Нержавіюча сталь
- колір: Матовий чорний
- Тип обробки: чорний
- Кількість ручок: 1
- Матеріал ручки: метал
- Тип монтажу: Wall Mount (Note: While 'Vloermontage' was listed in some specifications, the product design and typical use for a shower panel indicate wall mounting.)
- Номер деталі: SZKL-960102
- Країна походження: Німеччина
- ASIN: B09P44TKXF
- Рекомендований тиск води: 1.5 - 5 bar (typical for shower panels, consult local codes)
10. Гарантія та підтримка
Klea products are manufactured to high-quality standards and are covered by a standard manufacturer's warranty against defects in materials and workmanship. The specific duration and terms of the warranty may vary by region and retailer. Please retain your proof of purchase for warranty claims.
For technical assistance, warranty inquiries, or to order replacement parts, please contact Klea customer support through the retailer where the product was purchased or visit the official Klea webсайт для контактної інформації.
When contacting support, please have your model number (Ahdet) and ASIN (B09P44TKXF) readily available.
