Klea Ahdet Thermostatic Shower Panel User Manual

1. Загальна інформація

Thank you for choosing the Klea Ahdet Thermostatic Shower Panel. This manual provides essential instructions for the safe installation, operation, and maintenance of your new shower system. Please read this manual thoroughly before installation and keep it for future reference.

• Назва продукту: Klea Ahdet Thermostatic Shower Panel
• Номер моделі: 5430002645469
• Бренд: Klea
• матеріал: Нержавіюча сталь
• Завершення: Матовий хром
• колір: Срібло
• Тип монтажу: Настінне кріплення

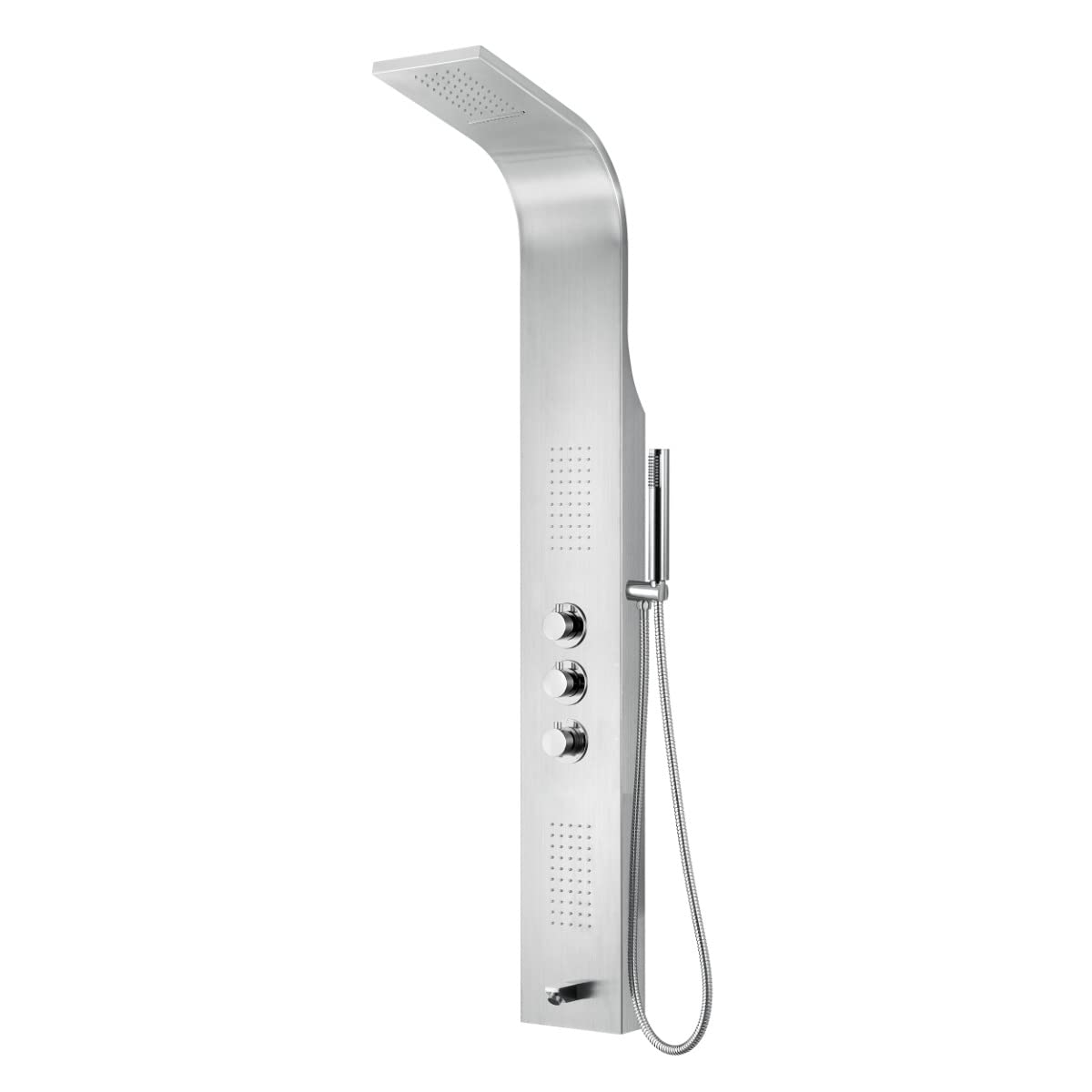

Figure 1: Klea Ahdet Thermostatic Shower Panel. This image displays the complete shower panel unit, featuring a large overhead shower, a flexible handheld shower, and multiple integrated body jets. The panel has a sleek, modern design with a matte chrome finish, indicating its stainless steel construction.

2. Техніка безпеки

Завжди дотримуйтесь наступних запобіжних заходів, щоб запобігти травмуванню або пошкодженню виробу.

• Професійна установка: Installation should be performed by a qualified plumber in accordance with local plumbing and building codes.
• Температура води: The thermostatic mixer is designed to maintain a consistent water temperature. However, always test the water temperature with your hand before stepping into the shower, especially for children or elderly users, to prevent scalding.
• Тиск води: Ensure your home's water pressure is within the recommended range for optimal performance. Consult a plumber if unsure.
• Hot Water Supply: Ensure the hot water supply is connected to the left inlet and cold water to the right inlet. Incorrect connection can lead to malfunction and potential scalding.
• Прибирання: Use only mild, non-abrasive cleaners. Harsh chemicals can damage the finish.
• Технічне обслуговування: Regularly check for leaks and wear. Do not attempt to repair internal components unless you are qualified.

3. Налаштування та встановлення

This section outlines the steps for installing your Klea Ahdet Thermostatic Shower Panel. Ensure all necessary tools and components are available before beginning.

3.1. Перевірки перед встановленням

• Verify that all parts listed in the packaging are present and undamaged.
• Ensure hot and cold water supply lines are accessible and correctly marked.
• Вимкніть основну подачу води до місця встановлення.
• Gather necessary tools: drill, level, measuring tape, wrench, screwdriver, sealant tape.

3.2. Монтаж душової панелі

1. Маркування: Position the shower panel against the wall at the desired height. Use a level to ensure it is straight. Mark the drilling points for the mounting brackets.
2. Буріння: Просвердліть отвори у позначених точках. Вставте дюбелі (якщо потрібно для вашого типу стіни).
3. Кріплення кронштейнів: Attach the mounting brackets to the wall using screws. Ensure they are firmly secured.
4. Розміщення панелі: Carefully hang the shower panel onto the mounting brackets.

3.3. Connecting Water Lines

1. Гаряча вода: Connect the hot water supply line to the designated hot water inlet on the back of the shower panel (usually marked with red or 'H'). Use sealant tape on threads.
2. Холодна вода: Connect the cold water supply line to the designated cold water inlet (usually marked with blue or 'C'). Use sealant tape on threads.
3. Затягніть з'єднання: Hand-tighten all connections, then use a wrench to tighten an additional quarter turn. Do not overtighten.

3.4. Testing for Leaks

1. Повільно вмикайте основне водопостачання.
2. Inspect all connections for any signs of leaks. If leaks are detected, turn off the water supply, tighten the connection, and re-test.
3. Once no leaks are present, the installation is complete.

4. Інструкція з експлуатації

Your Klea Ahdet Thermostatic Shower Panel offers multiple functions for a customized showering experience.

4.1. Контроль температури

• The lower knob controls the water temperature. Turn it clockwise for colder water and counter-clockwise for warmer water.
• A safety stop button (usually at 38°C / 100°F) prevents accidental scalding. To exceed this temperature, press and hold the safety stop button while turning the knob further.

4.2. Water Flow and Diverter

• The upper knob controls the water flow and diverts water between the different shower functions.
• Rotate the knob to select your desired water outlet:
  • Верхній душ: For a wide, drenching spray.
  • Ручний душ: For targeted rinsing and cleaning.
  • Тілофорсунки: For a massaging spray from the integrated jets.
• Turn the knob to the 'OFF' position to stop the water flow.

5. Технічне обслуговування

Regular maintenance will ensure the longevity and optimal performance of your shower panel.

5.1. Cleaning the Surface

• Clean the matte chrome finish regularly with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for stainless steel or chrome.
• Не використовувати abrasive sponges, scouring pads, or cleaners containing harsh chemicals, acids, or ammonia, as these can damage the finish.
• Ретельно промийте чистою водою та висушіть м’якою тканиною, щоб запобігти появі плям від води.

5.2. Cleaning Nozzles and Jets

• The nozzles on the overhead shower, handheld shower, and body jets are often made of silicone for easy cleaning.
• To remove limescale buildup, gently rub the silicone nozzles with your finger or a soft brush.
• For stubborn deposits, a mild descaling solution (e.g., diluted vinegar) can be applied, but ensure it does not come into prolonged contact with the metal finish. Rinse thoroughly.

6. Вирішення проблем

Refer to this section for common issues and their solutions. If the problem persists, contact a qualified plumber or customer support.

7. Технічні характеристики

8. Гарантія та підтримка

For warranty information, technical support, or to purchase replacement parts, please contact your retailer or the manufacturer directly. Keep your proof of purchase for warranty claims.

Виробник: Klea

For further assistance, please refer to the contact information provided with your purchase or visit the official Klea webсайт.
