Andoer W64RGB Mini RGB LED Video Light User Manual

вступ

Дякуємо за покупкуasing the Andoer W64RGB Mini RGB LED Video Light. This compact and versatile light is designed for photography and videography, offering a wide range of color temperatures, RGB modes, and special lighting effects. Please read this manual carefully before use to ensure proper operation and to maximize the product's lifespan.

Інформація про безпеку

Do not disassemble or modify the device. Unauthorized modifications may cause damage or injury.
Keep the device away from water and high humidity environments. This product is water-resistant, but not waterproof.
Do not expose the device to direct sunlight or high temperatures for extended periods.
Використовуйте лише зазначений зарядний кабель та адаптер живлення.
Зберігати в недоступному для дітей місці.
Avoid looking directly into the light when it is on, as it may cause eye strain.

Вміст упаковки

Будь ласка, перевірте, чи всі предмети присутні у вашій упаковці:

Andoer W64RGB Mini RGB LED Video Light
Зарядний кабель USB Type-C
Посібник користувача

Продукт закінченийview

The Andoer W64RGB features a compact design with multiple mounting options and an intuitive control interface.

Andoer W64RGB Mini RGB LED Video Light with key features highlighted: RGB, 9000-2500K, 2000mAh battery, CRI95+, Magnetic Backside — Figure 1: Andoer W64RGB Key Features. This image highlights the light's capabilities including RGB color, adjustable color temperature from 2500K to 9000K, a 2000mAh battery, a high CRI of 95+, and a magnetic back for easy mounting.

Andoer W64RGB Mini RGB LED Video Light dimensions and controls — Figure 2: Physical dimensions and control layout of the Andoer W64RGB. The light measures approximately 7cm x 8.5cm x 2.5cm and shows the power button, LCD screen, and control wheel.

The light includes 3 cold shoe mounts, allowing for multi-lamp splicing or attachment of other accessories.

Andoer W64RGB Mini RGB LED Video Light showing multi-lamp splicing with three cold shoe mounts — Figure 3: Multi-lamp splicing capability. This image demonstrates how multiple W64RGB lights can be connected using the integrated cold shoe mounts, expanding lighting possibilities.

Налаштування

1. Зарядка батареї

The Andoer W64RGB has a built-in 2000mAh lithium battery. Before first use, fully charge the device.

Connect the provided USB Type-C cable to the charging port on the side of the light.
Connect the other end of the cable to a USB power source (e.g., wall adapter, computer USB port, power bank).
The LCD display will indicate the charging status. The battery icon will show animation while charging and become solid when fully charged.

Andoer W64RGB Mini RGB LED Video Light with USB Type-C charging cable connected — Figure 4: Charging the W64RGB. This image shows the USB Type-C port and cable connected for charging the internal 2000mAh battery.

2. Монтаж світильника

The W64RGB can be mounted in several ways:

Кріплення холодного башмака: Attach the light to a camera's hot shoe or a stand with a cold shoe adapter.
Магнітна спинка: The integrated magnet allows for quick attachment to metallic surfaces.
Багато-лamp Зварювання: Use the three cold shoe mounts on the light to connect additional W64RGB units or other accessories.

Інструкція з експлуатації

1. Увімкнення/вимкнення живлення

Press and hold the power button (usually located on the side or top) for a few seconds to turn the light on or off.

2. Вибір режиму

The light typically cycles through different modes (CCT, RGB, Special Effects) by short-pressing a mode button or the control wheel. Refer to the LCD display for the current mode.

3. CCT Mode (Color Temperature)

У режимі CCT можна налаштувати колірну температуру та яскравість.

Регулювання температури кольору: Rotate the control wheel to adjust the color temperature from 2500K (warm light) to 9000K (cool light).
Регулювання яскравості: Press the control wheel to switch to brightness adjustment, then rotate to set the desired brightness level (0%-100%).

Andoer W64RGB Mini RGB LED Video Light in Cold & Warm Bi-color Temperature Mode, showing 2500K and 9000K settings — Figure 5: CCT Mode operation. This image illustrates the adjustable color temperature range from 2500K (warm) to 9000K (cold), demonstrating how the light can produce various white light tones.

4. RGB Mode (Hue and Saturation)

In RGB mode, you can select from a full spectrum of colors.

Регулювання відтінку: Rotate the control wheel to cycle through 360° of colors.
Регулювання яскравості: Press the control wheel to switch to brightness adjustment, then rotate to set the desired brightness level (0%-100%).

Andoer W64RGB Mini RGB LED Video Light in RGB Colorful Light Mode, showing various color outputs — Figure 6: RGB Mode in action. This image displays the light producing various vibrant colors, demonstrating its 360° adjustable HUE and 0-100% adjustable brightness for creative lighting effects.

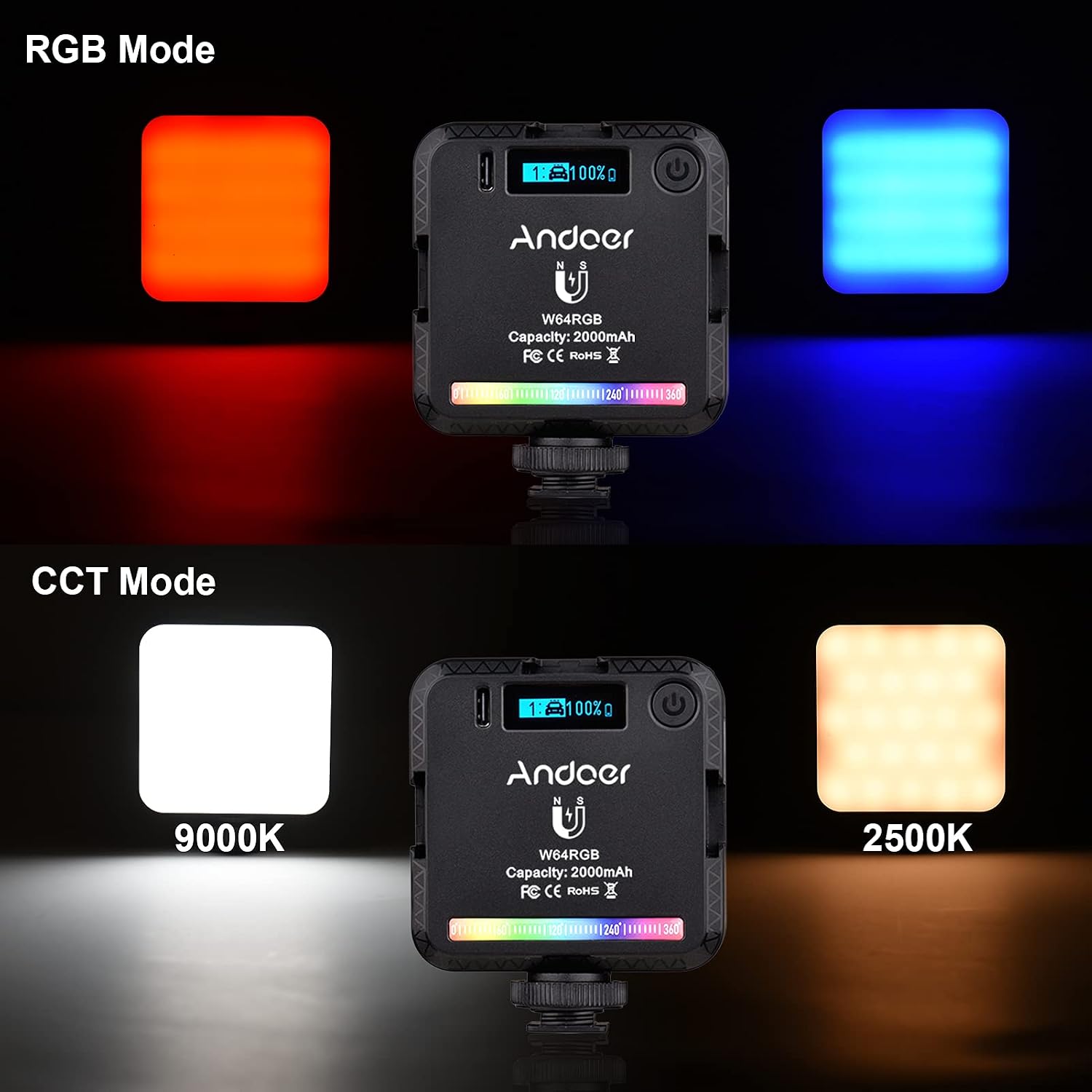

Andoer W64RGB Mini RGB LED Video Light showing both RGB and CCT modes with different color outputs — Figure 7: Comparison of RGB and CCT Modes. This image visually contrasts the vibrant color options available in RGB mode with the adjustable white light options in CCT mode (2500K-9000K).

5. Special Effects Mode

The W64RGB offers 20 special lighting effects to enhance your creative projects.

Вибір ефектів: In Special Effects mode, rotate the control wheel to browse through the 20 available effects.
Параметри налаштування: Some effects may have adjustable parameters (e.g., speed, intensity). Press the control wheel to switch between effects and parameter adjustment.

Examples of effects include Ambulance, Fireworks, TV, Candles, Party, RGB Flash, Lightning, and more.

Andoer W64RGB Mini RGB LED Video Light displaying 20 dynamic scene light effects icons — Figure 8: 20 Dynamic Scene Light Effects. This image shows icons representing the various built-in special effects, such as police car, ambulance, fire truck, lightning, fireworks, TV, candle, party, and more.

Технічне обслуговування

Прибирання: Use a soft, dry cloth to clean the light. Do not use harsh chemicals or abrasive materials.
Зберігання: Коли ліхтарик не використовується, зберігайте його в прохолодному, сухому місці, подалі від прямих сонячних променів та екстремальних температур.
Догляд за акумулятором: For optimal battery life, charge the light regularly, even if not in frequent use. Avoid fully discharging the battery for extended periods.

Усунення несправностей

проблема	Можлива причина	Рішення
Світло не вмикається.	Акумулятор розрядився.	Charge the light using the provided USB Type-C cable.
Світло мерехтить або працює нестабільно.	Low battery or faulty connection.	Ensure the battery is sufficiently charged. Check for any loose connections if using external power.
Елементи керування не реагують.	Тимчасовий збій програмного забезпечення.	Turn the light off and then on again to reset.
Light gets warm during operation.	Нормальна робота.	It is normal for LED lights to generate some heat. Ensure adequate ventilation. If it becomes excessively hot, discontinue use and contact support.

Технічні характеристики

Модель	W64RGB
Світлодіодні намистини	73 (High Quality)
Вихідна потужність	6W
Колірна температура	2500K-9000K (Stepless Adjustment)
CRI (індекс передачі кольору)	95+
RGB Hue Adjustment	360°
Регулювання яскравості	0%-100%
Special Light Effects	20 режимів
Ємність акумулятора	Літієва батарея 3.7 В 2000 мАг
Порт зарядки	USB Type-C
Варіанти монтажу	3 Cold Shoe Mounts, Magnetic Back
Рівень водонепроникності	Водостійкий
Розміри	Приблизно 7 см x 8.5 см x 2.5 см

Гарантія та підтримка

Andoer products are designed and manufactured to the highest quality standards. This product is covered by a standard manufacturer's warranty. Please refer to your purchase documentation for specific warranty terms and conditions.

For technical support, troubleshooting assistance, or warranty claims, please contact your retailer or visit the official Andoer webсайт для контактної інформації.
