Akozon Universal 12V 20A 3-Pin Heated Seat Rocker Switch Instruction Manual

1. Продукт закінчивсяview

This manual provides instructions for the Akozon Universal 12V 20A 3-Pin Heated Seat Rocker Switch. This switch is designed to control heated seats in a variety of vehicles, offering both high and low heat settings, indicated by different colored lights.

Image: Two Akozon 3-pin heated seat rocker switches, showing their illuminated states for high (red) and low (green) heat settings.

2. Технічні характеристики

3. Вміст упаковки

У комплект продукту входять наступні елементи:

• Akozon 3-Pin Heated Seat Rocker Switch (x2)

4. Інформація про безпеку

Please read and understand all safety information before installation and use. Failure to follow these instructions may result in electrical shock, fire, or other hazards.

• Ensure the vehicle's power is disconnected before attempting any installation or wiring.
• Переконайтеся, що робочий обсягtage (12V DC) and current (20A) of your vehicle's electrical system are compatible with this switch.
• Не перевищуйте максимальний номінальний струм 20 А, щоб запобігти перегріву та можливому пошкодженню.
• Якщо ви не впевнені в електропроводці, встановлення повинен виконувати кваліфікований фахівець.
• Keep the switch away from water or excessive moisture.

5. Налаштування та встановлення

This switch is designed for simplified panel mounting. No modifications, cutting, or drilling are required if replacing an existing compatible switch. For new installations, appropriate panel preparation will be necessary.

5.1 Схема підключення

The switch features three pins for connection. Refer to the image below for a visual representation of the switch and its wiring terminals. Proper connection to your heated seat element and vehicle's power supply is crucial for correct operation.

Image: Two Akozon 3-pin heated seat rocker switches with their pre-attached wiring harnesses, showing the terminals.

5.2 Етапи встановлення

1. Відключити живлення: Before starting, ensure the vehicle's battery is disconnected to prevent electrical hazards.
2. Підготовка місця монтажу: Identify a suitable panel location for the switch. If installing in a new location, carefully cut an appropriately sized hole for the panel mount switch.
3. Підключіть проводку: Connect the switch's three pins to your heated seat system according to the specific wiring requirements of your heated seat elements and vehicle's power supply. Typically, this involves connections for power input, heated seat element output, and ground.
4. Перемикач кріплення: Insert the switch into the prepared panel opening until it clicks securely into place.
5. Знову підключіть живлення: Знову підключіть акумулятор автомобіля.
6. Тест функціональності: Turn on the vehicle's ignition and test the switch's high and low heat settings to ensure proper operation and illumination.

6. Інструкція з експлуатації

The Akozon heated seat rocker switch provides three positions for controlling your heated seat:

• Висока температура: Push the rocker switch to the 'High' position. The switch will illuminate червоний to indicate high heat is active.
• Низька температура: Push the rocker switch to the 'Low' position. The switch will illuminate жовтий to indicate low heat is active.
• Вимкнено: Push the rocker switch to the 'Off' position. The switch will not be illuminated, indicating the heated seat is off.

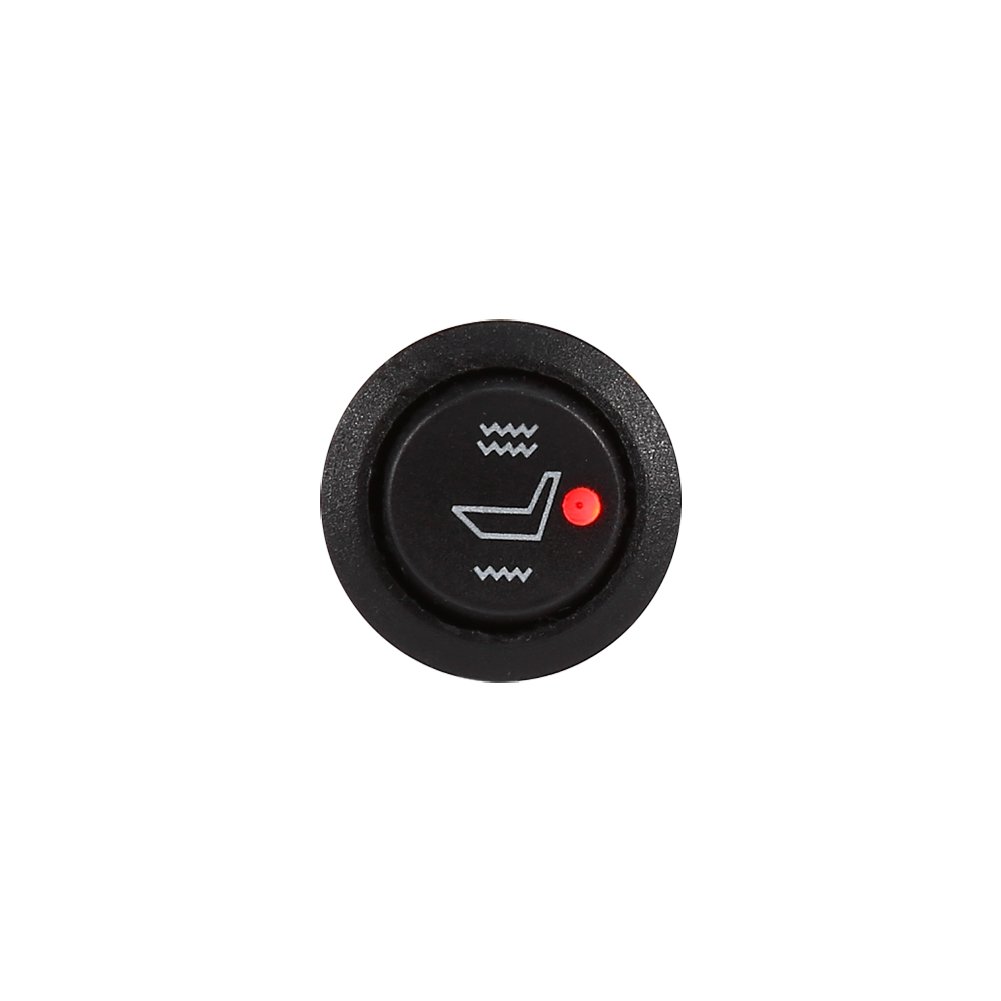

Image: Switch in High Heat (Red Indicator)

Image: Switch in Low Heat (Yellow Indicator)

7. Технічне обслуговування

The Akozon heated seat rocker switch requires minimal maintenance. Follow these guidelines to ensure its longevity:

• Прибирання: Wipe the switch surface with a soft, dry cloth. Avoid using abrasive cleaners or solvents that could damage the plastic.
• Огляд: Periodically check the switch for any signs of physical damage or loose connections.
• Умови навколишнього середовища: Ensure the switch is not exposed to extreme temperatures or direct water spray, which could affect its performance and lifespan.

8. Вирішення проблем

If you encounter issues with your Akozon heated seat rocker switch, refer to the following troubleshooting steps:

• Switch Not Illuminating or Functioning:
  • Перевірте всі з'єднання проводів, щоб переконатися, що вони надійно закріплені та правильно встановлені.
  • Verify that the vehicle's power supply to the heated seat system is active.
  • Inspect the vehicle's fuse box for any blown fuses related to the heated seat circuit.
• Only One Heat Setting Works:
  • Ensure the switch is fully engaged in the desired position (High or Low).
  • Check the wiring specific to the non-functioning heat setting.
• Перемикач відчувається вільним або липким:
  • Ensure the switch is properly seated in its panel mount.
  • Avoid applying excessive force when operating the switch. If sticking persists, the switch may need replacement.

If these steps do not resolve the issue, it is recommended to consult with a qualified automotive technician.

9. Гарантія та підтримка

Specific warranty information for this product is not provided in the available product details. For any warranty claims or technical support, please contact the seller or manufacturer directly through their official channels.
