SHARPAL 119N Diamond Sharpening Rod User Manual

вступ

The SHARPAL 119N Diamond Sharpening Rod is engineered for maintaining and refining the edges of various cutting tools. Featuring a fine 1200-grit diamond coating, this rod is ideal for routine knife maintenance, ensuring your blades remain sharp and perform optimally. Its design prioritizes both effectiveness and user safety.

Важливі інструкції з безпеки

• Always exercise extreme caution when handling sharp knives and the sharpening rod.
• Keep your fingers and hands clear of the blade's edge during the sharpening process.
• Utilize the integrated hand guard on the handle to protect your hand from accidental slips.
• Ensure a firm and stable grip on the sharpening rod at all times.
• Store the sharpening rod in a cool, dry place, safely out of reach of children and pets.

Продукт закінченийview

The SHARPAL 119N features a durable diamond-coated rod, an ergonomic handle, and an integrated hand guard for safe and effective sharpening.

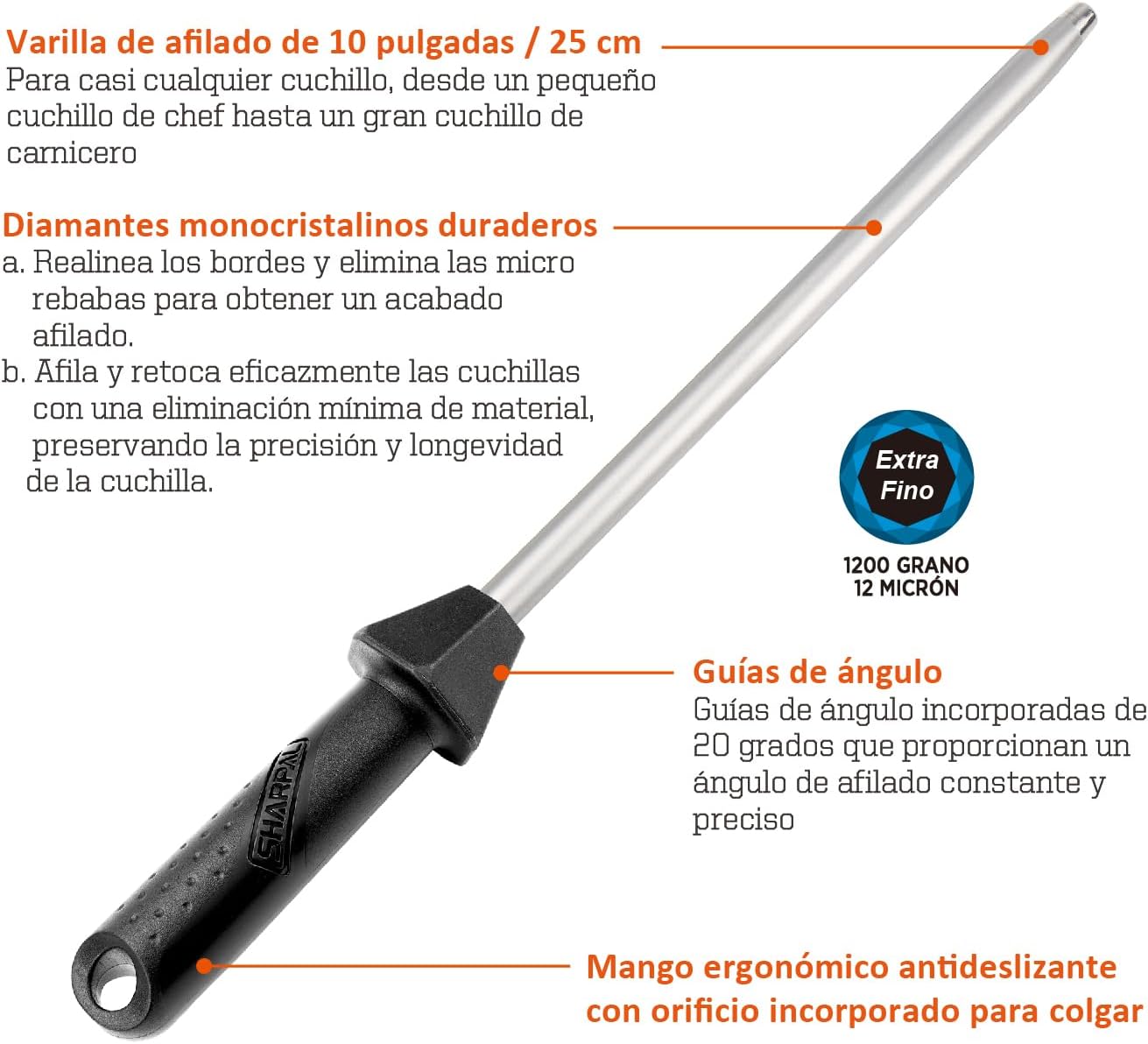

Зображення 1: закінченоview of the SHARPAL 119N Diamond Sharpening Rod, highlighting its 10-inch diamond rod, durable monocrystalline diamonds, 20-degree angle guides, and ergonomic non-slip handle with a hanging hole.

Ключові характеристики:

• 10-inch / 25 cm Diamond Rod: Suitable for a wide range of knives, from small utility knives to large butcher knives.
• Durable Monocrystalline Diamonds: Realigns edges and removes micro-burrs for a sharp finish. Effectively sharpens and hones blades with minimal material removal, preserving blade precision and longevity.
• 1200 Grit (12 Micron) Coating: An extra-fine diamond coating ideal for routine maintenance and achieving a precise edge.
• Integrated 20-Degree Angle Guides: Provides a consistent and accurate sharpening angle.
• Ергономічна нековзна ручка: Designed for a comfortable and secure grip, with a built-in hanging hole for convenient storage.

Зображення 2: Збільшений view (20x) of the monocrystalline diamond grains on the sharpening rod surface, illustrating their consistent size and the electroplating technology used for durability. This fine grit ensures quick, mess-free sharpening without water.

Налаштування

The SHARPAL 119N Diamond Sharpening Rod requires minimal setup. Before first use, ensure the rod is clean and free of any packaging debris. No assembly is required.

Інструкція з експлуатації

Follow these steps to effectively sharpen your knives using the SHARPAL 119N Diamond Sharpening Rod:

1. Hold the Rod Securely: Grip the ergonomic handle firmly. Place the tip of the rod on a stable surface, such as a cutting board or countertop, holding it vertically.
2. Розташування ножа: Hold the knife with your dominant hand. Place the heel of the blade against the top of the sharpening rod, ensuring the blade is at a 20-degree angle to the rod. The integrated angle guides on the handle can assist in maintaining this angle.
3. Sharpening Stroke: With light, consistent pressure, draw the knife blade down and across the rod, moving from the heel to the tip of the blade. The entire edge should make contact with the rod during the stroke.
4. Alternate Sides: Repeat the stroke on the other side of the blade, alternating sides with each stroke. Perform 5-10 strokes per side, or until the desired sharpness is achieved. Remember, for routine maintenance, only light pressure is needed.
5. Test Sharpness: Carefully test the sharpness of your blade. If needed, repeat the sharpening process.

The diamond coating is suitable for sharpening all types of hard materials, including ceramic and hard alloy tools.

Зображення 3: A user demonstrating the correct technique for sharpening a knife with the SHARPAL 119N rod, holding the knife at the appropriate angle against the rod.

Технічне обслуговування

Proper care will ensure the longevity and effectiveness of your SHARPAL 119N Diamond Sharpening Rod:

• Прибирання: After each use, wipe the diamond surface of the rod with a damp cloth to remove any metal particles or swarf.
• Сушка: Ensure the diamond surface is thoroughly dried before storing.
• Зберігання: Store the product in a cool, dry place, ideally by hanging it using the hole in the handle.

Усунення несправностей

Knife Not Sharpening Effectively:

• Check Angle: Ensure you are consistently maintaining the recommended 20-degree angle throughout the sharpening stroke. Inconsistent angles can prevent proper sharpening.
• Застосуйте легкий тиск: For maintenance, only light pressure is required. Excessive pressure can remove too much material or damage the blade.
• Стан леза: If your knife is extremely dull or has significant damage (chips, rolls), this fine-grit rod may not be sufficient for initial repair. A coarser sharpening system might be needed first to re-establish the edge, after which this rod can be used for maintenance.
• Clean Rod: Ensure the diamond surface is clean and free of metal residue, which can reduce its effectiveness.

Технічні характеристики

Зображення 4: Detailed diagram illustrating the dimensions of the SHARPAL 119N sharpening rod, including rod diameter, rod length, and overall length. Also indicates a 3-year warranty.

Гарантія та підтримка

Інформація про гарантію:

The SHARPAL 119N Diamond Sharpening Rod comes with a Гарантія 3 рік з дати покупки, що покриває виробничі дефекти за умов нормального використання. Будь ласка, збережіть чек про покупку для пред'явлення гарантійних претензій.

Підтримка клієнтів:

For any questions, technical assistance, or warranty claims, please contact SHARPAL customer service. You can typically find contact information on the official SHARPAL webсайті або через продавця вашого товару.
