Black Box EMD4000R 4K DisplayPort KVM-over-IP Extender Receiver User Manual

1. Вступ

The Black Box EMD4000R is a 4K DisplayPort KVM-over-IP Extender Receiver designed to extend DisplayPort video, USB 2.0, and audio signals over a standard IP network. This device enables remote access to a computer or server from a user console, supporting high-resolution 4K video at 60Hz. It is part of a KVM-over-IP system, requiring a compatible transmitter unit (sold separately) for full functionality. This manual provides essential information for the proper installation, operation, and maintenance of your EMD4000R receiver.

2. Вміст упаковки

Verify that all items are present in your package. If any items are missing or damaged, please contact your supplier.

• EMD4000R KVM-over-IP Extender Receiver Unit
• Адаптер живлення
• Шнур живлення
• Remote Control (if applicable to specific model variant)
• Cables (specific to model, e.g., USB, DisplayPort)

3. Продукт закінчивсяview

The EMD4000R receiver features various ports for connectivity, allowing it to integrate into a KVM-over-IP system. Understanding the layout of these ports is crucial for correct installation.

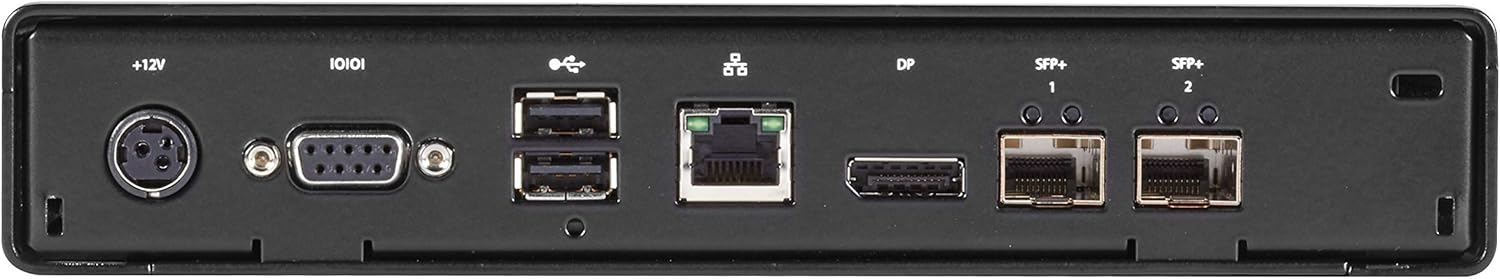

Рисунок 3.1: Роз'єми задньої панелі
This image displays the rear panel of the EMD4000R receiver. From left to right, it includes the +12V DC power input, I/O ports (likely for serial communication), multiple USB 2.0 ports, an Ethernet port, a DisplayPort output, and two SFP+ ports for network connectivity.

Figure 3.2: EMD4000R Unit and Accessories
This image shows the EMD4000R receiver unit alongside its power adapter and power cord, illustrating the complete package contents for the device.

Figure 3.3: Typical KVM-over-IP System Diagram
This diagram illustrates a typical KVM-over-IP setup. It shows sources (servers) connected to Emerald Transmitters, which then connect to an Emerald Matrix Switch or directly to an IP Network. Emerald Receivers (like the EMD4000R) connect to the network and user consoles (workstations) with monitors, keyboards, and mice, enabling remote access to the sources.

4. Налаштування

Follow these steps to set up your EMD4000R receiver:

1. Підключення живлення: Connect the provided power adapter to the +12V DC input on the rear panel of the EMD4000R receiver. Plug the power cord into a suitable power outlet.
2. Підключення DisplayPort: Connect a DisplayPort cable from your monitor to the DisplayPort output on the rear panel of the EMD4000R. Ensure the cable is securely fastened.
3. Підключення пристрою USB: Connect your USB keyboard, mouse, and any other USB 2.0 peripheral devices to the USB ports on the rear panel of the EMD4000R.
4. Аудіопідключення (додатково): If using external speakers or a microphone, connect them to the appropriate audio input/output jacks on the receiver (if available and supported by your specific model variant).
5. Підключення до мережі: Connect an Ethernet cable from your network switch or router to the Ethernet port on the rear panel of the EMD4000R. Alternatively, if using SFP+ modules, insert them into the SFP+ ports and connect fiber optic cables to your network infrastructure.
6. Увімкнення: Once all connections are made, power on the EMD4000R receiver. The device will initiate its boot sequence.
7. Сполучення з передавачем: Refer to the Black Box Emerald KVM Manager software or your system's documentation for instructions on how to pair the receiver with its corresponding transmitter unit over the IP network. This step is essential for establishing the KVM connection.

5. Інструкція з експлуатації

After successful setup and pairing, the EMD4000R receiver operates as follows:

• Вихід дисплея: The video signal from the remote computer (connected to the transmitter) will be displayed on the monitor connected to the EMD4000R receiver.
• Керування USB: Your connected USB keyboard and mouse will control the remote computer as if they were directly connected.
• Передача аудіо: Audio signals from the remote computer will be output through the audio ports on the receiver, and microphone input (if connected) will be transmitted back to the remote computer.
• Управління системою: Use the Black Box Emerald KVM Manager software to manage connections, switch between sources (if multiple transmitters are used), and configure advanced settings.

6. Технічне обслуговування

To ensure optimal performance and longevity of your EMD4000R receiver, follow these maintenance guidelines:

• Прибирання: Regularly clean the exterior of the unit with a soft, dry cloth. Avoid using liquid cleaners or aerosols, which can damage the device.
• Вентиляція: Ensure that the ventilation openings on the unit are not blocked to prevent overheating. Maintain adequate airflow around the device.
• Оновлення прошивки: Periodically check the Black Box webсайт для оновлень прошивки. Підтримка прошивки в актуальному стані може покращити продуктивність, додати нові функції та вирішити потенційні проблеми.
• Управління кабелем: Ensure all cables are securely connected and neatly organized to prevent accidental disconnections or damage.

7. Вирішення проблем

If you encounter issues with your EMD4000R receiver, refer to the following troubleshooting tips:

• Немає відеовиходу:
  • Check DisplayPort cable connections at both the receiver and the monitor.
  • Переконайтеся, що монітор увімкнено та налаштовано на правильне джерело вхідного сигналу.
  • Verify that the receiver is properly paired with the transmitter and that the transmitter is receiving a video signal from the source computer.
  • Check network connectivity between the transmitter and receiver.
• USB-пристрої не відповідають:
  • Ensure USB devices are securely connected to the receiver's USB ports.
  • Test USB devices directly on the source computer to confirm functionality.
  • Verify that USB passthrough is enabled and configured correctly in the KVM management software.
• Без звуку:
  • Check audio cable connections to speakers/headphones.
  • Ensure audio output is selected correctly on the remote computer.
  • Verify volume levels on both the remote computer and the connected audio devices.
• Проблеми з підключенням до мережі:
  • Check Ethernet or SFP+ cable connections.
  • Verify network switch/router status and configuration.
  • Ensure IP addresses are correctly assigned and there are no conflicts.
• Пристрій не вмикається:
  • Confirm the power adapter is securely connected to the receiver and a working power outlet.
  • Перевірте розетку за допомогою іншого пристрою.

If problems persist, consult the Black Box support webсайт або зверніться до технічної підтримки.

8. Технічні характеристики

9. Гарантія та підтримка

Black Box Network Services products are designed for reliability and performance. For specific warranty information regarding your EMD4000R, please refer to the warranty card included with your product or visit the official Black Box webсайт.

For technical support, product documentation, or to register your product, please visit the Black Box support portal or contact their customer service directly. Contact information can typically be found on the Black Box official webсайт:

Black Box Official Webсайт: www.blackbox.com

When contacting support, please have your product model number (EMD4000R) and serial number ready.
