1. Вступ
Thank you for choosing the Feelworld S55 V3 5.5-inch DSLR Camera Field Monitor. This manual provides essential information for setting up, operating, and maintaining your monitor. Please read it thoroughly before use to ensure optimal performance and longevity of the device.
Малюнок 1.1: Спереду view of the Feelworld S55 V3 monitor.
2. Продукт закінчивсяview
2.1 Основні характеристики
- Clear 5.5-inch Full HD Display: Features a 1920x1080 native resolution, 450nit brightness, and a 1000:1 contrast ratio for vivid and accurate image reproduction.
- Advanced Color Control: Supports REC.709 3D LUT Log and user 3D LUT uploads (up to 32) for precise color calibration and custom looks.
- Versatile 4K HDMI Connectivity: Equipped with 4K HDMI input and output ports for live signal display and simultaneous output to other monitors.
- Легкий і портативний дизайн: Weighs approximately 190 grams, making it ideal for outdoor and handheld applications. Compatible with gimbals and lightweight camera systems.
- Гнучке рішення для живлення: Supports NP-F series batteries (F550 included), Canon LP-E6 batteries (not included), 12V DC input, and 5V Type-C input. Includes a DC power output port to power your camera.
- Professional Video Assist Functions: Includes Histogram, Peaking Filter, False Colors, Exposure, Nine Grid, Embedded Audio, Pixel-to-Pixel, Check Field, Image Flip, Anamorphic Mode, Image Freeze, and Zoom-in.
2.2 Вміст упаковки
Стандартний пакет включає наступні елементи:
- Feelworld S55 V3 Monitor
- Кабель Micro HDMI
- Акумулятор F550
- Сумка для зберігання
- Парасолька від сонця
- Tilt Arm Mounting Support
- Посібник користувача
Figure 2.1: Included accessories with the S55 V3 monitor.
2.3 Monitor Layout
Familiarize yourself with the ports and buttons on your S55 V3 monitor:
- Верхня панель: Control buttons for menu navigation and function shortcuts.
- Ліва сторона: HDMI Input, HDMI Output, DC IN 12V, DC OUT 8.4V, 3.5mm Ear Phone Slot.
- Права сторона: Type-C Input (for power).
- задній: Battery plate for NP-F series or LP-E6 batteries.
Малюнок 2.2: Сторона view showing HDMI and power ports.
Figure 2.3: Top control buttons and menu interface.
3. Налаштування
3.1 Живлення монітора
The S55 V3 offers multiple power options:
- Акумулятор NP-F: Attach a compatible NP-F series battery (e.g., F550, F750, F970) to the battery plate on the rear of the monitor. An F550 battery is included.
- LP-E6 Battery: The multipurpose battery plate also supports Canon LP-E6 batteries (not included).
- Вхід DC 12V: Connect the included 12V/1.5A power adapter to the DC IN 12V port.
- Вхід Type-C: For convenient power, connect a 5V/2A mobile phone charger or power bank to the Type-C port.
- Вихід постійного струму (8.4 В): Use the DC OUT 8.4V port with an optional dummy battery cable to power your DSLR or mirrorless camera directly from the monitor's battery.
Figure 3.1: Flexible power solutions for the monitor.
3.2 Монтаж монітора
The S55 V3 can be mounted in several ways:
- Camera Hot Shoe: Use the included tilt arm to mount the monitor directly onto your camera's hot shoe or cold shoe mount.
- Gimbal/Stabilizer: The lightweight design and compact size make it suitable for mounting on gimbals or stabilizers using standard mounting points.
- Tripod/Rig: The monitor features 1/4-inch screw threads for attachment to tripods, magic arms, or camera rigs.
Figure 3.2: Monitor mounted on a camera, demonstrating DC output to power the camera.
3.3 Підключення до камери
Connect your camera to the monitor using an HDMI cable:
- Ensure both the monitor and camera are powered off.
- Connect one end of the HDMI cable (e.g., Micro HDMI to HDMI) to your camera's HDMI output port.
- Підключіть інший кінець кабелю HDMI до HDMI-IN port on the S55 V3 monitor.
- If you need to output the signal to another monitor, connect a second HDMI cable from the HDMI OUT port on the S55 V3 to the input of the secondary monitor.
- Power on your camera, then power on the S55 V3 monitor. The camera's video feed should appear on the monitor.
4. Інструкція з експлуатації
4.1 Основна операція
- Увімкнення/вимкнення живлення: Press and hold the power button (usually located on the top right) for a few seconds to turn the monitor on or off.
- Навігація по меню: Use the 'MENU' button to access the main menu. Use the arrow buttons (left/right) to navigate through options and 'F1/V' or 'F2/Λ' to confirm or adjust settings.
- Function Buttons (F1, F2, F3): These are customizable shortcut buttons. You can assign frequently used functions (e.g., Peaking, False Color, Histogram) to these buttons via the menu.
4.2 Додаткові функції
The S55 V3 includes a suite of professional video assist functions:
Figure 4.1: Professional video assist features display.
- Гістограма: Displays the tonal distribution of your image, helping to prevent clipping in highlights and shadows.
- Peaking Focus: Highlights sharp edges in your image, assisting with precise manual focusing.
- False Colors: Uses color overlays to represent different exposure levels, aiding in accurate exposure setting.
- Exposure (Zebras): Displays zebra patterns over areas exceeding a set exposure threshold.
- Nine Grid: Provides a compositional guide for framing your shots.
- Вбудований аудіо: Displays audio levels on screen.
- Піксель до пікселя: Shows the image at its native resolution without scaling.
- Перевірте поле: Displays a single color channel (Red, Green, Blue, or Mono) for color calibration.
- Перевернути зображення: Flips the image horizontally or vertically, useful for various mounting orientations.
- Анаморфний режим: Розтискає анаморфне footage для правильного viewінж.
- Заморожування зображення: Freezes the current frame on the screen.
- Збільшувати: Збільшує частину зображення для критичного фокусування.
4.3 Color Calibration and 3D LUTs
The S55 V3 supports professional color calibration:
- REC.709 Standard: The monitor is factory calibrated to the REC.709 standard for accurate color reproduction.
- Підтримка 3D LUT: You can upload up to 32 custom 3D LUTs (Look Up Tables) to the monitor. This allows you to preview твій футtage with specific color grades or log conversions in real-time.

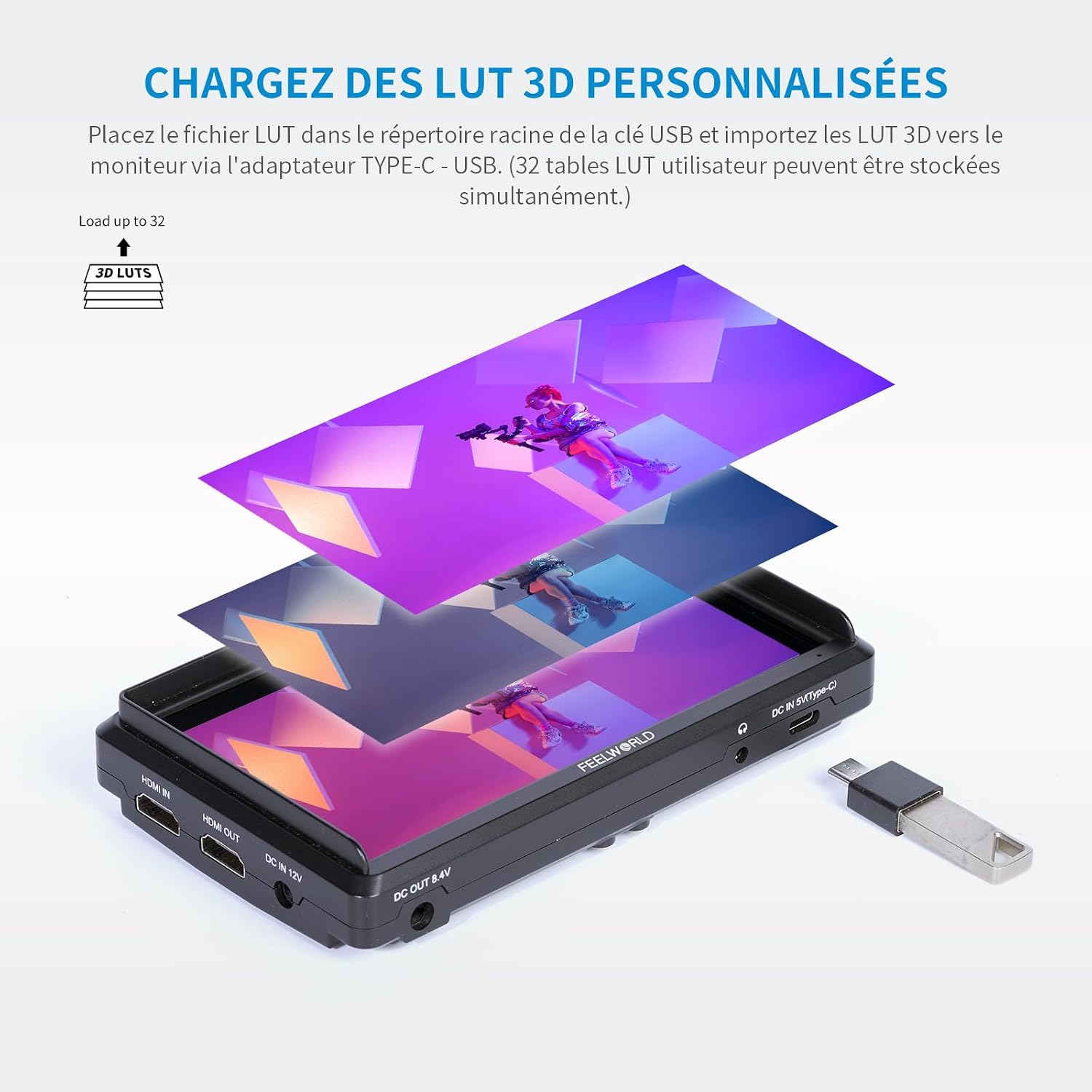

To load 3D LUTs:
- Save your .cube LUT files to the root directory of a USB flash drive.
- Connect the USB drive to the monitor via a Type-C to USB adapter.
- Navigate to the LUT menu option and select 'Import LUT'. Follow the on-screen instructions to load your desired LUTs.
Figure 4.2: Loading custom 3D LUTs via USB.
Figure 4.3: Professional color calibration display.
5. Технічне обслуговування
5.1 Очищення
- екран: Використовуйте м’яку тканину без ворсу, спеціально призначену для екранів електроніки. Для стійких плям злегка протрітьampen the cloth with a screen cleaning solution (avoid harsh chemicals or alcohol).
- Тіло: Wipe the monitor body with a soft, dry cloth. Do not use liquid cleaners directly on the monitor.
5.2 Зберігання
- When not in use, store the monitor in its protective storage bag or a padded case to prevent scratches and damage.
- Вийміть батарейки, якщо зберігаєте їх протягом тривалого часу, щоб запобігти витіканню.
- Зберігайте в прохолодному, сухому місці подалі від прямих сонячних променів і екстремальних температур.
6. Вирішення проблем
If you encounter issues with your Feelworld S55 V3 monitor, refer to the following common problems and solutions:
| проблема | Можлива причина | Рішення |
|---|---|---|
| Монітор не вмикається. | Low or dead battery; power cable not connected; faulty power source. | Charge or replace the battery. Ensure power cables are securely connected. Try a different power source. |
| Немає відеосигналу. | HDMI cable loose or faulty; incorrect input selected; camera not outputting video; incompatible resolution. | Check HDMI cable connections. Ensure the camera is powered on and outputting video. Verify camera's HDMI output settings. Try a different HDMI cable. |
| Image is distorted or incorrect colors. | Incorrect color settings; active LUT applied; faulty HDMI cable. | Reset monitor color settings to default. Disable any active LUTs. Try a different HDMI cable. |
| Кнопки не реагують. | Firmware issue; temporary glitch. | Power cycle the monitor (turn off and on). If the issue persists, check the Feelworld webсайт для оновлень прошивки. |
If the problem persists after trying these solutions, please contact Feelworld customer support.
7. Технічні характеристики
| Особливість | Деталь |
|---|---|
| Бренд | ЧУВИТИСВІТ |
| Модель | S55 V3 (FW572-EU) |
| Розмір екрана | 5.5 дюймів |
| роздільна здатність | 1920 x 1080 (Full HD) |
| Яскравість | 450 кд/м² |
| Коефіцієнт контрастності | 1000:1 |
| Viewкут нахилу | IPS (Wide Viewкут нахилу) |
| Вхідні порти | 1 x HDMI, 1 x DC IN (12V), 1 x Type-C (5V) |
| Вихідні порти | 1 x HDMI, 1 x DC OUT (8.4V), 1 x 3.5mm Headphone Jack |
| Сумісність живлення | NP-F series batteries (F550 included), Canon LP-E6 batteries (not included), DC 12V, Type-C 5V |
| вага | Approx. 190 grams (monitor only) |
| Розміри продукту (Д x Ш x В) | 14.8 х 1.86 х 8.2 см |
| Розміри упаковки (Д x Ш x В) | 20.9 х 15.8 х 10.4 см |
| Колір | чорний |
| Водонепроникність | Не водонепроникний |
| Дата випуску | 23 січня 2019 р |
8. Гарантія
The Feelworld S55 V3 monitor comes with a 1-річна гарантія виробника. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper maintenance. Please retain your proof of purchase for warranty claims.
9. Підтримка
For technical assistance, troubleshooting, or warranty inquiries, please contact Feelworld customer support through their official website or the retailer where you purchased the product. You may also find additional resources, FAQs, and firmware updates on the official Feelworld support page.
Офіційний Webсайт: www.feelworld.cn
