Cadrim Butane Torch Model Torch Instruction Manual

вступ

This manual provides detailed instructions for the safe and effective use of your Cadrim Butane Torch. Please read all instructions carefully before operation and retain this manual for future reference. This professional blow torch features a double flame design, adjustable flame settings, and a security lock for safe handling.

Setup and Refilling

1. Butane Gas Requirements

The Cadrim Butane Torch is designed for use with butane gas only. Ensure you use high-quality butane gas with a long nozzle for proper refilling. Butane gas is not included with the torch.

2. Refilling Procedure

1. Ensure the torch is turned off and the flame level is set to MIN.
2. Invert the torch and locate the inflation valve at the bottom.
3. Firmly press the nozzle of the butane gas canister into the torch's inflation valve.
4. Hold for approximately 5 seconds until the torch is fully charged. Do not overfill.
5. After refilling, wait 3-5 minutes before using the torch to allow the gas to stabilize.

Інструкція з експлуатації

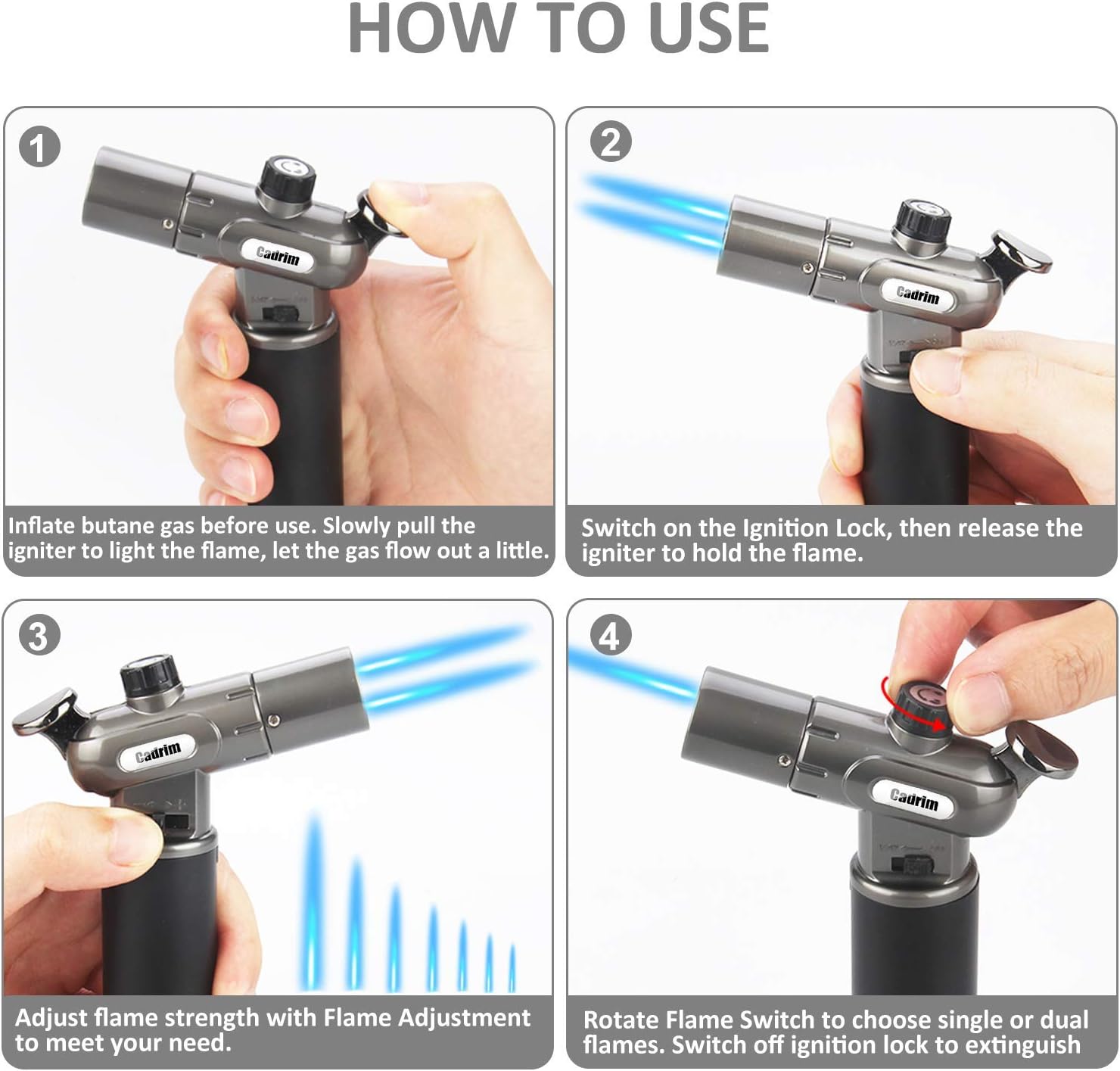

1. Ignition and Flame Control

1. Ensure the torch is adequately filled with butane gas.
2. Slide the safety lock from 'LOCK' to 'OFF'.
3. Slowly pull the igniter to light the flame. The ignition lock can be engaged to keep the flame ignited without continuous pressure.
4. Adjust the flame strength using the flame adjustment slider located on the side of the torch. Move towards '+' for a stronger flame and '-' for a weaker flame.
5. Rotate the flame switch knob on top to select between single or double flame output as needed.
6. To extinguish the flame, disengage the ignition lock (if engaged) and release the igniter. Slide the safety lock back to 'LOCK' for storage.

Технічне обслуговування

Proper maintenance ensures the longevity and safe operation of your Cadrim Butane Torch.

• Прибирання: Regularly inspect the ceramic nozzle for any debris or blockages. Clean gently with a soft cloth if necessary.
• Зберігання: Always ensure the torch is completely cool and the safety lock is engaged before storing. Store in a cool, dry place, away from direct sunlight and out of reach of children.
• Рівень газу: Avoid completely depleting the butane gas. Refill when the flame becomes weak to prevent air from entering the tank.

Усунення несправностей

If you encounter issues with your Cadrim Butane Torch, refer to the following common solutions:

• Torch not igniting:
  • Check butane gas level and refill if empty.
  • Ensure the safety lock is in the 'OFF' position.
  • Verify the igniter is being fully pressed.
• Weak or inconsistent flame:
  • Refill the butane gas.
  • Adjust the flame strength slider towards '+'.
  • Ensure the nozzle is clear of any obstructions.
• Gas leakage:
  • Ensure the torch is not overfilled during refilling.
  • Check that the inflation valve is properly sealed after refilling.
  • Якщо витік не зникає, припиніть використання та зверніться до служби підтримки клієнтів.

Технічні характеристики

Гарантія та підтримка

For any questions, concerns, or support regarding your Cadrim Butane Torch, please contact Cadrim customer service. Refer to your purchase documentation for specific warranty details and contact information.
