UDIRC UDI002-01 Servo Set Instruction Manual for RC Racing Speed Boat

1. Вступ

This instruction manual provides essential information for the proper installation, operation, and maintenance of your UDIRC UDI002-01 Servo Set. This servo is specifically designed as a replacement or upgrade part for the UDIRC UDI002 RC Racing Boat. Please read this manual thoroughly before use to ensure optimal performance and longevity of your product.

2. Продукт закінчивсяview

The UDI002-01 Servo Set is a critical component for steering control in your UDIRC UDI002 RC Racing Boat. It includes the servo unit with a pre-attached JR plug and wiring for easy connection.

модель: UDI002-01 Servo Set
Сумісність: Designed for UDIRC UDI002 RC Racing Boat
Тип роз'єму: JR plug
кількість: 1 piece per set

Малюнок 2.1: Спереду view of the UDIRC UDI002-01 Servo Set, showing the main body and the white servo horn.

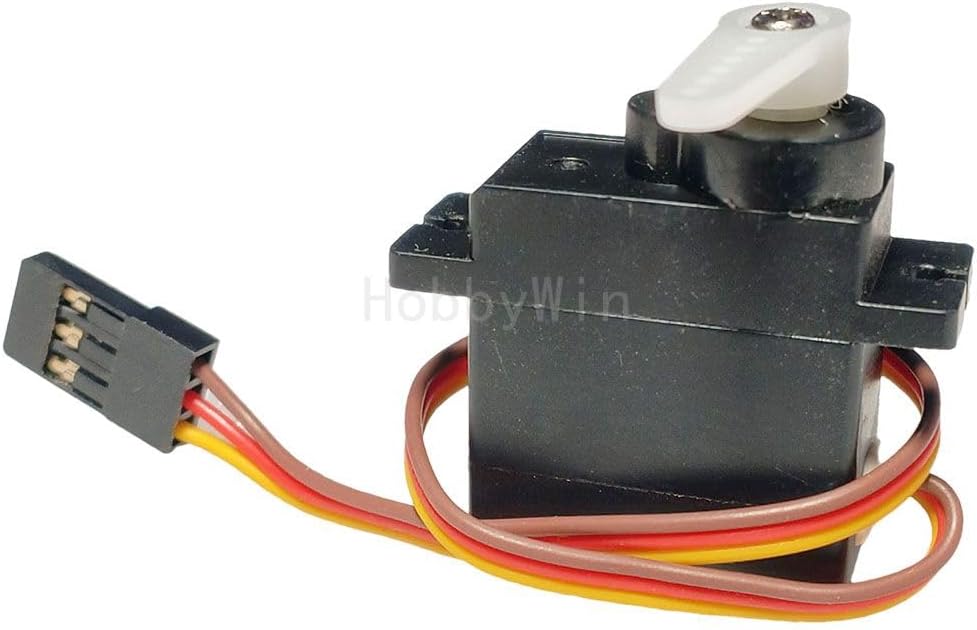

Figure 2.2: The UDIRC UDI002-01 Servo Set, highlighting the attached JR plug and wiring.

3. Налаштування та встановлення

Before installing the new servo, ensure the RC boat's power is disconnected. Refer to your UDIRC UDI002 RC Racing Boat's main manual for specific disassembly and assembly instructions if needed.

Remove Old Servo: Carefully disconnect the wiring from the old servo and unmount it from its position within the boat's hull. Note the orientation and connection points.
Mount New Servo: Position the UDI002-01 Servo Set in the designated servo mounting area. Secure it using the appropriate screws or mounting hardware (not included, typically reused from the old servo or boat kit). Ensure it is firmly seated to prevent movement during operation.
Підключіть проводку: Plug the JR connector of the new servo into the corresponding port on your boat's receiver or electronic speed controller (ESC). Ensure the polarity is correct (typically indicated by wire colors: signal, positive, negative). The wire length is approximately 14.5 cm.
Attach Linkage: Connect the steering linkage rod from the boat's rudder mechanism to the servo horn. Ensure the servo horn is centered before attaching the linkage for proper steering alignment.
Тест функціональності: Reconnect power to the RC boat and transmitter. Perform a functional test to verify that the servo responds correctly to steering inputs from the transmitter. Adjust linkage or trim settings as necessary for straight tracking and full range of motion.

4. Операція

Once installed and tested, the UDI002-01 Servo Set operates in conjunction with your RC boat's receiver and transmitter to control the rudder. The servo translates electrical signals from the receiver into mechanical movement, allowing you to steer the boat.

Ensure your transmitter and receiver are properly bound and powered on before operating the boat.
Always perform a range check before operating your boat at a distance.
Avoid forcing the servo horn or linkage manually, as this can damage the internal gears.
Operate the steering smoothly; sudden, jerky movements can put undue stress on the servo and linkage.

5. Технічне обслуговування

Regular maintenance helps ensure the longevity and reliable performance of your servo.

Прибирання: After each use, especially in saltwater environments, gently clean the exterior of the servo and its linkages to remove any dirt, debris, or salt residue. Use a soft, dry cloth or a small brush. Avoid using harsh chemicals.
Огляд: Periodically inspect the servo for any signs of physical damage, loose connections, or excessive play in the servo horn. Check the wiring for fraying or cuts.
Змащення: The internal gears of the servo are typically pre-lubricated and sealed. Avoid disassembling the servo unless you are an experienced technician, as this can void warranties and introduce contaminants.
Зберігання: Store the servo in a dry, cool place away from direct sunlight and extreme temperatures when not in use.

6. Вирішення проблем

If you encounter issues with your UDI002-01 Servo Set, refer to the table below for common problems and solutions.

проблема	Можлива причина	Рішення
Сервопривід не реагує	Нещільне або неправильне з'єднання проводів No power to receiver/servo Damaged servo or receiver	Check all connections, ensure JR plug is fully inserted and correctly oriented. Verify battery is charged and connected, and receiver is powered on. Test with a known good servo or receiver if possible.
Нестабільний або уривчастий рух	Interference (radio signal) Binding/friction in linkage Damaged servo gears	Ensure clear line of sight to boat, check transmitter batteries. Inspect linkage for obstructions or damage, ensure smooth movement. If gears are stripped, the servo may need replacement.
Серво гуде, але не рухається	Механічна обструкція Stripped gears Недостатня потужність	Check linkage for anything blocking movement. This indicates internal damage; replacement is likely needed. Ensure power supply is adequate for the servo.

7. Технічні характеристики

Key technical details for the UDIRC UDI002-01 Servo Set:

Номер деталі: UDI002-01
тип: Servo Set
Сумісність: UDIRC UDI002 RC Racing Boat
Роз'єм: JR plug
Довжина дроту: Приблизно 14.5 см
Виробник: УДІРК
Рекомендований вік: 18 years and up (for product use, not servo installation)

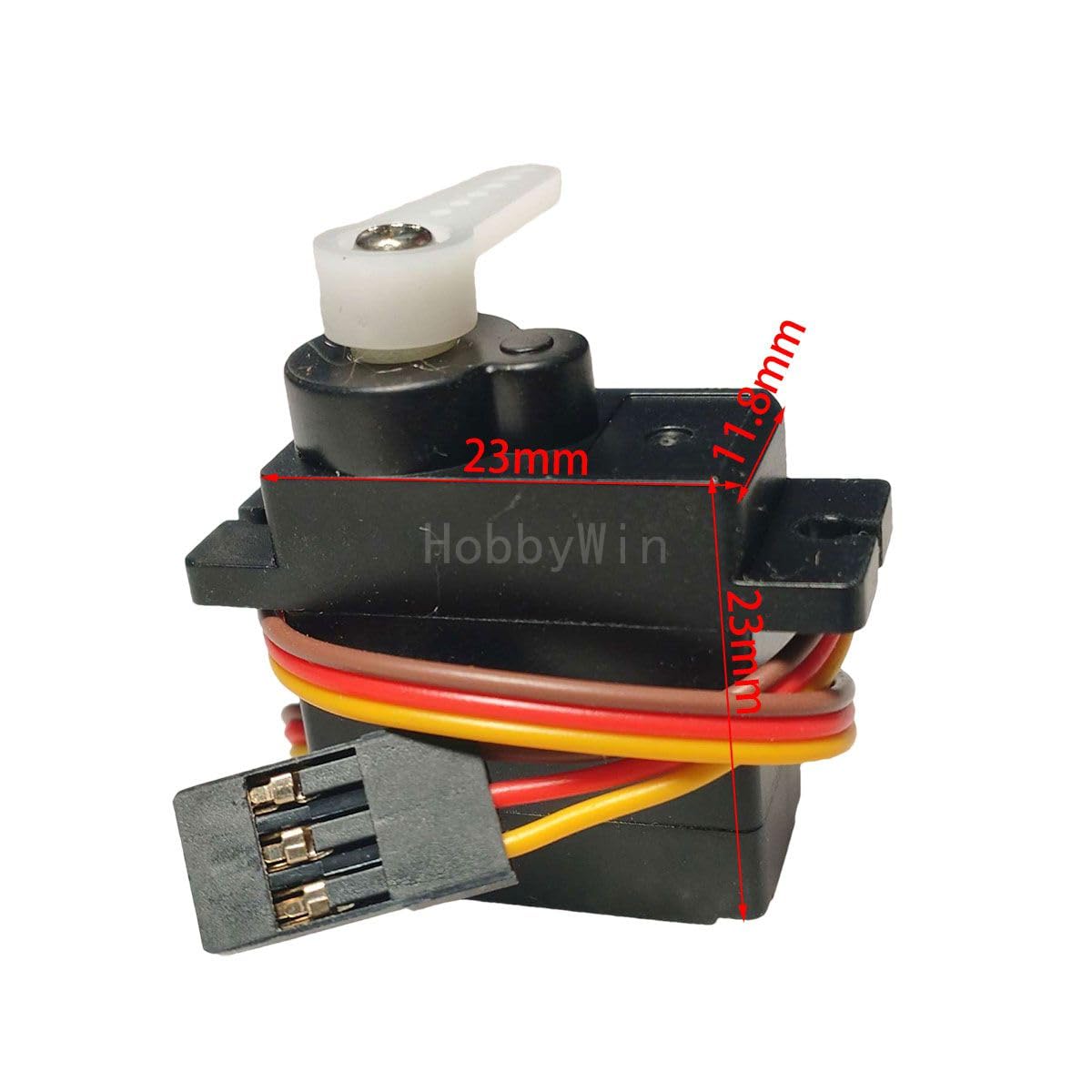

UDIRC UDI002-01 Servo Set with dimensions

Figure 7.1: Dimensions of the UDIRC UDI002-01 Servo Set. Note: Dimensions are approximate and for reference only.

8. Гарантія та підтримка

For warranty information or technical support regarding your UDIRC UDI002-01 Servo Set, please refer to the documentation provided with your UDIRC UDI002 RC Racing Boat or contact UDIRC customer service directly. As this is a spare part, specific warranty terms may vary. Always ensure you are purchasing genuine UDIRC parts to guarantee compatibility and quality.

For further assistance, you may visit the official UDIRC webсайт або зверніться до їхніх авторизованих дистриб'юторів.
