Mantis Tiller 2-Cycle Engine Instruction Manual

1. Вступ

This manual provides essential instructions for the safe and effective installation, operation, and maintenance of your Mantis 2-Cycle Engine. This engine is designed as a direct replacement for various Mantis tiller models, ensuring compatibility with both new and older units. Please read this manual thoroughly before attempting any installation or operation.

2. Інформація про безпеку

Always prioritize safety when working with gasoline engines. Failure to follow these safety guidelines can result in serious injury or property damage.

• Прочитайте інструкцію: Understand all instructions and warnings before operating the engine.
• Засоби індивідуального захисту (ЗІЗ): Always wear appropriate eye protection, gloves, and sturdy footwear.
• Вентиляція: Operate the engine in a well-ventilated area to avoid inhaling exhaust fumes, which contain carbon monoxide.
• Поводження з паливом: Handle gasoline with extreme care. Store fuel in approved containers, away from ignition sources. Refuel outdoors with the engine off and cool.
• Гарячі поверхні: Двигун і глушник сильно нагріваються під час роботи та залишаються гарячими ще деякий час після цього. Уникайте контакту, щоб уникнути опіків.
• Рухомі частини: Keep hands, feet, and clothing away from all moving parts, such as the pull cord and flywheel.
• Діти та сторонні особи: Тримайте дітей та сторонніх осіб на безпечній відстані від робочої зони.
• Стан двигуна: Do not operate the engine if it is damaged or not in proper working order.

3. Налаштування та встановлення

The Mantis 2-Cycle Engine is designed for straightforward replacement. Installation typically involves securing the engine with one bolt, connecting the throttle cable, and attaching one electrical wire. Refer to your tiller's original manual for specific chassis details.

Кроки встановлення:

1. Prepare the Tiller: Ensure the tiller is turned off, the spark plug wire is disconnected, and the engine is cool. Place the tiller on a stable, flat surface.
2. Remove Old Engine: Carefully disconnect the throttle cable and any electrical wires from the old engine. Locate and remove the main mounting bolt(s) securing the engine to the tiller frame. Lift and remove the old engine.
3. Position New Engine: Place the new Mantis 2-Cycle Engine onto the tiller frame, aligning the mounting holes.
4. Безпечний механізм: Insert and tighten the main mounting bolt(s) to secure the new engine firmly to the tiller frame.
5. Connect Throttle Cable: Attach the throttle cable to the carburetor linkage on the new engine, ensuring smooth operation.
6. Connect Electrical Wire: Connect the electrical wire (typically a ground or kill switch wire) to its designated terminal on the new engine.
7. Знову підключіть свічку запалювання: Reconnect the spark plug wire to the spark plug.
8. Остаточна перевірка: Verify all connections are secure and there are no loose parts.

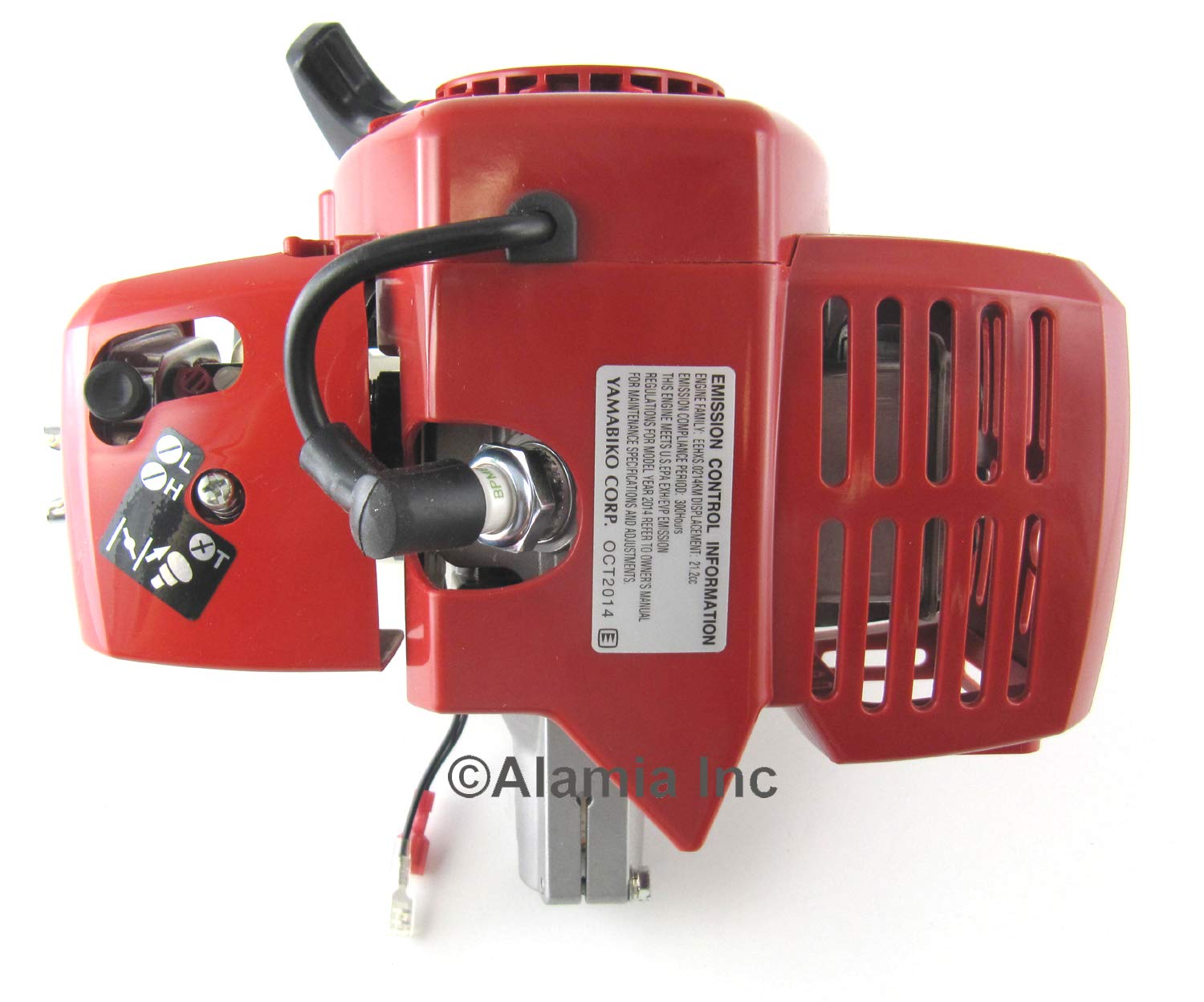

Рисунок 1: Зверху вниз view of the Mantis 2-Cycle Engine, illustrating its compact design and key components.

4. Інструкція з експлуатації

Паливна суміш:

This engine requires a 50:1 mixture of unleaded gasoline and high-quality 2-cycle engine oil. Do not use straight gasoline or automotive oil. Using an incorrect fuel mixture will damage the engine and void the warranty.

Малюнок 2: Спереду view of the engine, highlighting the fuel cap and the required 50:1 fuel mixture ratio.

Процедура запуску:

1. Заправка паливного бака: Fill the fuel tank with the correct 50:1 fuel mixture. Secure the fuel cap.
2. Prime the Engine: Натисніть на грушу запальника кілька разів, доки паливо не стане видимим у ній.
3. Встановити дросель: Перемістіть важіль дросельної заслінки в положення «ПОВНИЙ ДРОСІНГ».
4. Запуск двигуна: Hold the tiller firmly and pull the starter rope with a smooth, steady motion until the engine attempts to start (usually 1-3 pulls).
5. Регулювання дросельної заслінки: Once the engine attempts to start, move the choke lever to the 'HALF CHOKE' position. Pull the starter rope again until the engine starts.
6. Розминка: Allow the engine to run for 30-60 seconds. Then, move the choke lever to the 'RUN' position.
7. Керування дросельною заслінкою: Use the throttle lever on the tiller handle to control engine speed.

Зупинка двигуна:

To stop the engine, release the throttle and press the engine's kill switch or move the ignition switch to the 'OFF' position.

5. Технічне обслуговування

Regular maintenance ensures optimal performance and extends the life of your Mantis 2-Cycle Engine.

• Свічка запалювання: Inspect the spark plug every 25 hours of operation or annually. Clean or replace if fouled or worn. Use only the recommended spark plug type.
• Повітряний фільтр: Clean the air filter every 10 hours of operation or more frequently in dusty conditions. Remove the filter, clean with warm soapy water, rinse, dry thoroughly, and re-oil lightly with 2-cycle oil before reinstallation.
• Паливний фільтр: Inspect the fuel filter (located inside the fuel tank) annually. Replace if clogged or damaged.
• Генеральне прибирання: Keep the engine clean and free of debris. Remove any dirt or grass buildup from the cooling fins to prevent overheating.
• Зберігання: For long-term storage, drain the fuel tank and run the engine until it stops to clear the carburetor of fuel. Alternatively, use a fuel stabilizer. Store the engine in a clean, dry place.

6. Вирішення проблем

This section addresses common issues you might encounter with your 2-cycle engine.

7. Технічні характеристики

• Бренд: Богомол
• Номер моделі: MAN-438-L.H
• Джерело живлення: Gas-powered (2-Cycle)
• матеріал: метал
• Вага товару: 10 фунта
• UPC: 713289486310
• Номер деталі виробника: MAN-438-L.H
• Кількість одиниць: 1.0 Кол

8. Гарантія та підтримка

For detailed warranty information, technical assistance, or to purchase replacement parts, please refer to the official Mantis website or contact Mantis customer service directly. Keep your purchase receipt as proof of ownership.
