Huanyu DZ260 Automatic Vacuum Sealer Instruction Manual

1. Вступ

This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your Huanyu DZ260 Automatic Vacuum Sealer. Please read this manual thoroughly before operating the machine to ensure proper usage and to prevent damage or injury.

The Huanyu DZ260 is a desktop vacuum sealing machine designed for various packaging needs, offering automatic control and ease of use. Its compact design and efficient operation make it suitable for home, retail, and small commercial environments.

2. Техніка безпеки

• Always ensure the machine is connected to a grounded power outlet with the correct voltage (220V/110V, 50Hz/60Hz).
• Не працюйте з машиною мокрими руками або у вологому середовищі.
• Тримайте дітей та сторонніх осіб подалі від машини під час роботи.
• In case of abnormal operation or emergency, immediately press the "STOP" button on the control panel.
• Do not attempt to open or repair the machine yourself. Contact qualified service personnel.
• Забезпечте належну вентиляцію навколо машини під час використання.
• Від’єднайте машину від мережі перед чищенням або технічним обслуговуванням.

3. Компоненти виробу та панель керування

Familiarize yourself with the main components and the control panel of your DZ260 vacuum sealer.

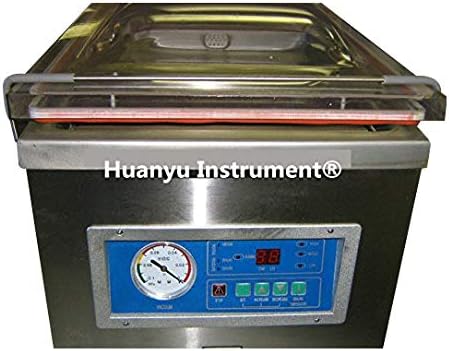

Зображення 1: Фронт view of the Huanyu DZ260 Automatic Vacuum Sealer, showing the main unit and the control panel with a pressure gauge and digital display.

Зображення 2: The Huanyu DZ260 Vacuum Sealer with its transparent lid open, revealing the vacuum chamber and sealing bar inside.

Зображення 3: Close-up of the control panel, displaying the vacuum gauge, digital timer, sealing temperature settings (High, Middle, Low), and control buttons including STOP, SET, INCREASE, DECREASE, and SEALING TEMPERATURE.

Панель управління завершенаview:

• Вакуумметр: Displays the current vacuum pressure inside the chamber.
• Цифровий дисплей: Shows time settings for vacuuming and sealing.
• Sealing Temperature Indicators: Lights for HIGH, MIDDLE, LOW settings.
• Кнопка СТОП: Emergency stop for the packaging procedure.
• Кнопка SET: Used to enter setting mode for vacuum time, sealing time, and cooling time.
• INCREASE/DECREASE Buttons: Adjust values during setting mode.
• SEALING TEMPERATURE Button: Cycles through High, Middle, Low sealing temperature settings.

4. Налаштування

1. Розпакування: Carefully remove the vacuum sealer from its packaging. Inspect for any shipping damage.
2. Розміщення: Place the machine on a stable, level surface. Ensure adequate space around the machine for ventilation and operation.
3. Підключення живлення: Connect the power cord to the machine and then to a suitable grounded electrical outlet. Verify the voltage matches your local supply (220V or 110V).
4. Початкове очищення: Before first use, wipe the vacuum chamber and sealing bar with a damp тканина.

5. Інструкція з експлуатації

5.1 Основна операція

1. Увімкнення: Turn on the main power switch (if present, otherwise plug in). The digital display will illuminate.
2. Налаштувати параметри:
   • Натисніть НАБІР button to cycle through settings: Vacuum Time, Sealing Time, Cooling Time.
   • Використовуйте ЗБІЛЬШЕННЯ і ЗМЕНШЕННЯ buttons to adjust the desired time for each parameter.
   • Натисніть SEALING TEMPERATURE button to select the appropriate heat sealing level (High, Middle, Low) based on the thickness and material of your packaging bag.
3. Підготувати елемент: Place the item to be sealed inside a vacuum bag. Ensure the open end of the bag is clean and dry.
4. Сумка для позицій: Place the open end of the vacuum bag flat over the sealing bar inside the vacuum chamber. Ensure the bag is smooth and free of wrinkles.
5. Закрити кришку: Firmly close the transparent lid. The machine will automatically begin the vacuuming and sealing process according to the set parameters.
6. Монітор процесу: Observe the vacuum gauge and digital display. The machine will vacuum, then seal, and finally cool.
7. Відкрита кришка: Once the process is complete, the lid will release automatically, or you may need to gently lift it. Carefully remove the sealed package.

5.2 Аварійна зупинка

If the packaging process becomes abnormal or an emergency occurs, immediately press the red СТІЙ button on the control panel. This will halt the current operation.

6. Технічне обслуговування

6.1 Очищення

• Завжди відключайте машину від мережі перед чищенням.
• Wipe the exterior and vacuum chamber with a soft, damp тканина. Не використовуйте абразивні засоби чи розчинники.
• Ensure the sealing bar and surrounding area are clean and free of debris to ensure effective sealing.
• Regularly check and clean the vacuum pump oil (refer to specific oil change instructions if applicable, not detailed in provided data).

6.2 Replacing the Sealing Heating Wire

The sealing heating wire is designed for easy replacement. If the sealing quality deteriorates, the heating wire may need to be replaced.

1. Ensure the machine is unplugged and cool.
2. Carefully remove the old heating wire and its protective strip from the sealing bar.
3. Install the new heating wire, ensuring it is properly seated and tensioned.
4. Replace the protective strip over the new heating wire.

7. Вирішення проблем

8. Технічні характеристики

9. Гарантія та підтримка

For warranty information, technical support, or service inquiries, please contact Huanyu Instrument directly. Ensure you have your product model (DZ260) and purchase details available when contacting support.

Контактна інформація: Refer to the official Huanyu webнайактуальнішу контактну інформацію див. на сайті або в документації до покупки.

Примітка: Huanyu provides voltage customized services. Specific requirements can be discussed via email. The product typically arrives within 7-13 business days after order confirmation.
