Stiga SE 2216 Q Electric Chainsaw User Manual

1. Вступ

Thank you for choosing the Stiga SE 2216 Q Electric Chainsaw. This manual provides essential information for the safe and effective use, assembly, maintenance, and troubleshooting of your chainsaw. Please read this manual thoroughly before operating the machine to ensure your safety and prolong the life of the product. Keep this manual in a safe place for future reference.

2. Техніка безпеки

УВАГА: Always follow basic safety precautions to reduce the risk of fire, electric shock, and serious personal injury.

• Засоби індивідуального захисту (ЗІЗ): Always wear safety glasses, hearing protection, gloves, sturdy footwear, and appropriate clothing when operating the chainsaw.
• Робоча зона: Ensure the work area is clear of obstructions, well-lit, and free from children and bystanders. Do not operate in wet conditions.
• Електрична безпека: Inspect the power cord for damage before each use. Do not use the chainsaw if the cord is damaged. Use only extension cords suitable for outdoor use and rated for the chainsaw's power requirements.
• Запобігання віддачі: Be aware of kickback. Avoid the tip of the guide bar contacting any object. Maintain a firm grip with both hands.
• Технічне обслуговування: Disconnect the chainsaw from the power supply before performing any maintenance, cleaning, or when changing accessories.
• Зберігання: Зберігайте бензопилу в сухому, безпечному місці, недоступному для дітей.

3. Збірка та налаштування

3.1 Розпакування

Carefully remove all components from the packaging. Ensure all parts listed in the packing list are present and undamaged. Retain packaging for future storage or transport.

3.2 Installing the Guide Bar and Chain

Before installation, ensure the chainsaw is disconnected from the power supply.

1. Remove the chain cover by loosening the quick-tensioning knob.
2. Розмістіть ланцюг навколо зірочки та направляючої шини, переконавшись, що ріжучі кромки спрямовані в правильному напрямку.
3. Fit the guide bar onto the mounting studs, ensuring the chain engages with the drive sprocket.
4. Replace the chain cover and lightly tighten the quick-tensioning knob.

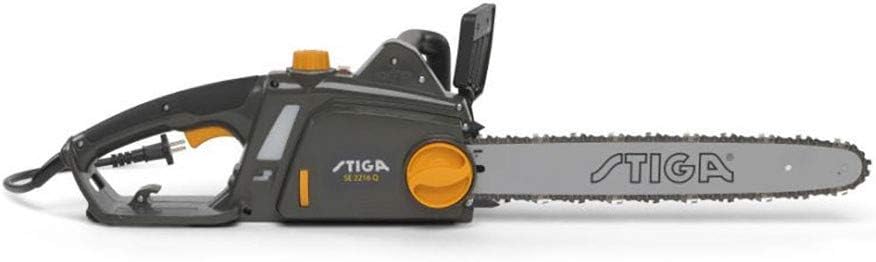

Зображення 1: Збоку view of the Stiga SE 2216 Q Electric Chainsaw with the guide bar and chain correctly installed. This image shows the overall assembly of the chainsaw, highlighting the bar, chain, and main body.

3.3 Регулювання натягу ланцюга

The Stiga SE 2216 Q features a quick-tensioning knob for easy chain adjustment.

1. With the chain cover lightly tightened, turn the quick-tensioning knob clockwise to increase chain tension or counter-clockwise to decrease it.
2. The chain is correctly tensioned when it can be pulled away from the guide bar by approximately 2-3 mm at the center, but still moves freely around the bar.
3. Once tension is correct, fully tighten the quick-tensioning knob to secure the chain cover and guide bar.

3.4 Заповнення масляного бака

The chainsaw has an automatic oil pump for chain lubrication. Ensure the oil tank is filled with appropriate chain lubricant before each use.

1. Locate the oil tank cap, usually on the side of the chainsaw body.
2. Unscrew the cap and fill the tank with high-quality chain lubricant. The tank capacity is 0.13 liters.
3. Щільно закрийте кришку, щоб запобігти протіканню.

4. Інструкція з експлуатації

4.1 Підключення до живлення

Connect the chainsaw's power cord to a suitable outdoor-rated extension cord, and then to a grounded power outlet. Ensure the voltage matches the chainsaw's requirements.

Зображення 2: Верх view of the Stiga SE 2216 Q Electric Chainsaw, illustrating the power cord connection point. This image helps identify where the power cable connects to the tool.

4.2 Запуск та зупинка бензопили

• Починати: Ensure a firm grip with both hands. Press the safety lock-off button (if present) and then squeeze the trigger switch. The chain will begin to move.
• Зупинитися: Release the trigger switch. The chain brake will engage automatically or can be manually activated by pushing the front hand guard forward.

4.3 Техніки різання

Always maintain a balanced stance and firm grip. Let the chainsaw do the work; do not force it. Start cuts with the bottom of the guide bar, avoiding the tip to prevent kickback. For felling, limbing, or bucking, consult professional guides or training for specific techniques.

5. Технічне обслуговування

Regular maintenance ensures optimal performance and extends the life of your chainsaw. Always disconnect the power supply before performing any maintenance.

• Змащення ланцюга: The automatic oil pump ensures continuous lubrication. Regularly check the oil level and refill as needed.
• Заточення ланцюга: A sharp chain is crucial for safe and efficient cutting. Sharpen the chain regularly or replace it when dull. Refer to specific chain sharpening instructions for the 3/8" .050" (91PX-57X) chain type.
• Технічне обслуговування направляючої шини: Регулярно очищуйте паз направляючої шини та отвори для змащування. Періодично перевертайте направляючу шину, щоб забезпечити рівномірний знос.
• Прибирання: After each use, clean the chainsaw body, air vents, and chain brake mechanism to remove sawdust and debris.
• Зберігання: When not in use, store the chainsaw in a dry, secure location. Empty the oil tank if storing for extended periods.

6. Вирішення проблем

7. Технічні характеристики

8. Гарантія та підтримка

For warranty information, please refer to the warranty card included with your product or visit the official Stiga website. For technical support, spare parts, or service inquiries, please contact your authorized Stiga dealer or customer service center. Always provide the model number (SE 2216 Q) and serial number when contacting support.
