This manual provides detailed instructions for the installation, operation, and maintenance of the Elkay LK35 3-1/2" Drain Fitting. The Elkay LK35 is designed to fit 3-1/2" (89mm) drain openings and features a durable Type 304 stainless steel body, a removable strainer basket, and a chrome-plated brass tailpiece. Proper installation and care will ensure optimal performance and longevity of your drain fitting.
Компоненти продукту
The Elkay LK35 drain fitting includes the following components:
- Drain Body: Constructed from Type 304 stainless steel.
- Кошик-сіто: Removable basket with a metal stem and rubber seal for catching debris and plugging the drain.
- Tailpiece: 1-1/2" O.D. x 4" chrome-plated brass tailpiece for connection to plumbing.
- Монтажне обладнання: Gaskets, washers, and nuts required for secure installation.

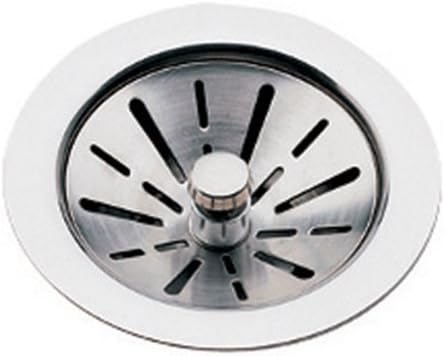

Figure 1: Assembled Elkay LK35 Drain Fitting.
Малюнок 2: Розібраний view of Elkay LK35 Drain Fitting components, showing individual parts and overall dimensions.
Налаштування та встановлення
Before beginning installation, ensure you have the necessary tools, including plumber's putty or silicone sealant, a wrench, and a screwdriver. Turn off the water supply to the sink before proceeding.
- Підготовка отвору для раковини: Clean the sink drain opening thoroughly, removing any old sealant or debris.
- Нанесіть герметик: Apply a bead of plumber's putty or silicone sealant around the underside of the drain body flange.
- Вставити корпус зливу: From the top of the sink, insert the drain body into the sink opening. Press firmly to ensure a good seal.
- Assemble Underside Components: From the underside of the sink, slide the rubber gasket, friction washer, and mounting nut onto the drain body.
- Tighten Mounting Nut: Hand-tighten the mounting nut, then use a wrench to tighten it securely. Do not overtighten, as this can damage the sink or drain. Wipe away any excess sealant.
- Attach Tailpiece: Connect the chrome-plated brass tailpiece to the bottom of the drain body using the provided slip nut and washer. Ensure a tight, leak-free connection.
- Connect to P-Trap: Connect the tailpiece to your existing P-trap assembly.
- Тест на витоки: Turn on the water supply and fill the sink. Check for any leaks around the drain body, tailpiece, and P-trap connections. Tighten connections as needed.
Інструкція з експлуатації
The Elkay LK35 drain fitting is designed for simple operation.
- Напруження: The removable strainer basket is designed to catch food particles and other debris, preventing clogs in your plumbing. Ensure the basket is properly seated in the drain opening.
- Plugging the Drain: To fill the sink with water, press the strainer basket down firmly into the drain opening. The rubber seal on the basket will create a watertight plug.
- Злив: To drain the sink, simply lift the strainer basket.
Рисунок 3: Зверху вниз view of the Elkay LK35 Strainer Basket, showing its design for debris collection.
Технічне обслуговування
Regular cleaning and maintenance will help preserve the appearance and function of your Elkay LK35 drain fitting.
- Щоденне прибирання: Remove the strainer basket daily and empty any collected debris. Rinse the basket under running water.
- Глибоке очищення: For a more thorough cleaning, use a mild dish soap and a soft cloth or sponge. Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can scratch the polished stainless steel finish.
- Preventing Stains: Rinse the drain thoroughly after each use to prevent mineral deposits or food stains from accumulating.
- Перевірка пломб: Periodically inspect the rubber seal on the strainer basket and the gaskets for any signs of wear or damage. Replace if necessary to maintain a watertight seal.
Усунення несправностей
Ось деякі поширені проблеми та способи їх вирішення.
| проблема | Можлива причина | Рішення |
|---|---|---|
| Drain leaks around the flange. | Improperly sealed or loose mounting nut. | Tighten the mounting nut. If the leak persists, remove the drain, reapply plumber's putty or silicone sealant, and reinstall. |
| Drain leaks at the tailpiece connection. | Loose slip nut or worn washer. | Tighten the slip nut. Replace the washer if it appears worn or damaged. |
| Strainer basket does not hold water. | Rubber seal is dirty, damaged, or improperly seated. | Clean the rubber seal and ensure it is free of debris. Inspect for damage and replace if necessary. Ensure the basket is pressed down firmly. |
| Повільне зливання. | Strainer basket is full of debris or a clog exists further down the plumbing. | Empty and clean the strainer basket. If the issue persists, check the P-trap for clogs or consult a plumber. |
Технічні характеристики
- Бренд: Elkay
- модель: LK35
- Розмір зливного отвору: 3-1/2 дюйма (89 мм)
- Overall Flange Size: 4-1/2 дюйма (114 мм)
- Tailpiece Dimensions: 1-1/2" O.D. x 4"
- матеріал: Type 304 Stainless Steel Body, Chrome Plated Brass Tailpiece
- Завершення: Полірована нержавіюча сталь
- Особливість: Center Post, Removable Strainer Basket
- Вага товару: 16 унції
- Product Style: Сучасний
Гарантія та підтримка
For warranty information or technical support, please refer to the official Elkay webсайт або зверніться безпосередньо до служби підтримки клієнтів Elkay. Зберігайте чек про покупку як підтвердження покупки.
Elkay Customer Service: www.elkay.com/us/en/support.html
